Analog Vortex Mixer, Microplate
Details

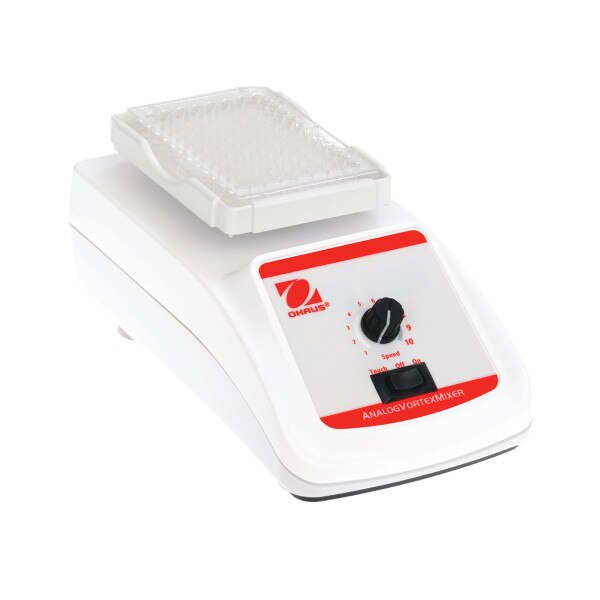

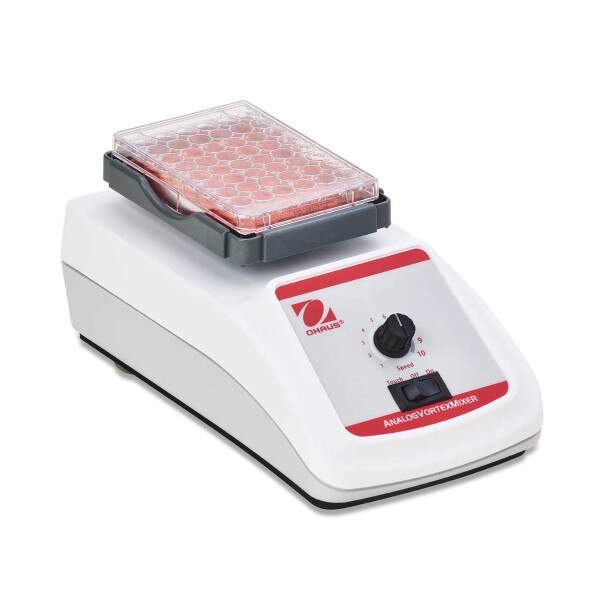

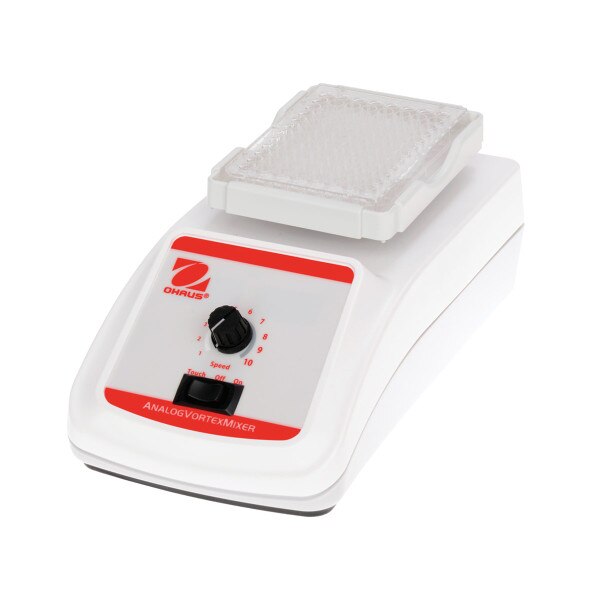

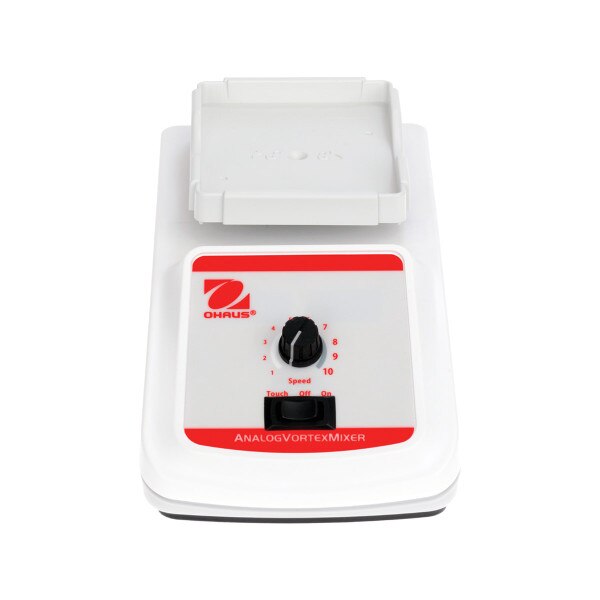

The Ohaus Analog Microplate Vortex Mixer is a variable speed analog mixer that is designed for continuous duty. The high speed and small orbit is optimal for effectively mixing microplates. Choose from "Touch" mode (for mixing tubes when cup head or Universal Holder with cover is depressed), or "On" mode (when using any of the accessory attachments for continuous operation.
Applications: ELISA Assays, PCR Preparations, Digestions, Cell Disruptions
Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation: Detachable 3-wire cord and plug (included)
Communication: N/A
Construction: Cycoloy
Design Features: Microplate adapter and cup head (included)
Specifications:
Control: Analog
Duty Rating: Continuous
Orbit: 0.1 in (3.5 mm)
Speed Range: On Mode, 300 rpm – 2500 rpm; Touch Mode, 300 rpm – 3500 rpm
Capacity: 2 Microplates
Dimensions: 4.5 in x 10.5 in x 5.4 in (11.4 cm x 26.7 cm x 13.7 cm) (HxLxW)
Net Weight: 11.7 lb (5.3 kg)
Power: 120V, 0.25A, 50/60Hz
Power Consumption: 30 W
Safety Certification: TUV
Working Environment: 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
Applications: ELISA Assays, PCR Preparations, Digestions, Cell Disruptions
Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation: Detachable 3-wire cord and plug (included)
Communication: N/A
Construction: Cycoloy
Design Features: Microplate adapter and cup head (included)
Specifications:
Control: Analog
Duty Rating: Continuous
Orbit: 0.1 in (3.5 mm)
Speed Range: On Mode, 300 rpm – 2500 rpm; Touch Mode, 300 rpm – 3500 rpm
Capacity: 2 Microplates
Dimensions: 4.5 in x 10.5 in x 5.4 in (11.4 cm x 26.7 cm x 13.7 cm) (HxLxW)
Net Weight: 11.7 lb (5.3 kg)
Power: 120V, 0.25A, 50/60Hz
Power Consumption: 30 W
Safety Certification: TUV
Working Environment: 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
