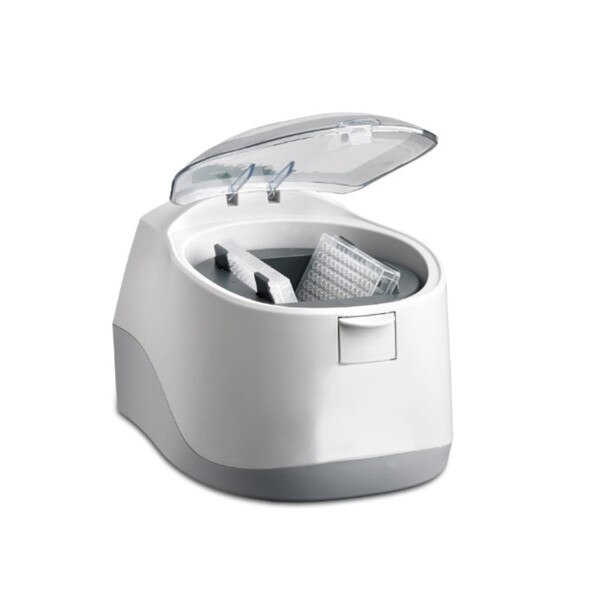

Microplate Mini Centrifuge
Details
The Microplate Mini Centrifuge is the first “mini” sized centrifuge with a swing out rotor for microplates. Centrifuging plates before PCR ensures all reactants are in the bottom of the wells for proper concentrations and improved yields.

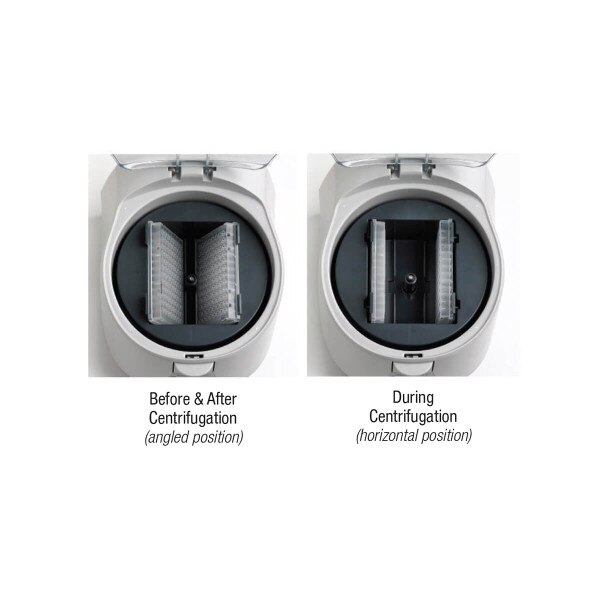

In spite of its remarkably small footprint (9 x 10 in.), the The Microplate Mini Centrifuge includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be inserted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force “swings” the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
With a g-force of 600 xg, most samples can be spun down in less than 20 seconds. To end a run, simply open the lid and the automatic, electric brake brings the rotor to a quick, smooth stop in just 4 seconds. Plates can then be easily removed from the rotor.
Adapter for 0.2 mL tubes or PCR strips (ES59772), and a rotor for deep well plate (ES59774) are available.
Features:
- Quickly spins down droplets in PCR plates
- Unique swing-out rotor design prevents spillage (patented)
- Half the size of traditional centrifuges
- Accepts all popular types of PCR plates (skirted, semi, and non) and most microtiter plates
Specifications:
Speed: 2,550 rpm (600 xg)
Capacity: 2 x 2 PCR Plates, 2 x Microtiter Plates (up to 25mm), 24 x 0.2mL PCR strips
Deceleration: 4 seconds
Dimensions: 9.2 x 10.2 x 7.75 in. (23 x 26 x 19.7 cm)
Weight: 9 lbs. (4.1 kg)
Electrical: 115V, 60Hz or 230V, 50Hz; 250W
Warranty: 2 Years
Product Flyer
In spite of its remarkably small footprint (9 x 10 in.), the The Microplate Mini Centrifuge includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be inserted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force “swings” the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.
With a g-force of 600 xg, most samples can be spun down in less than 20 seconds. To end a run, simply open the lid and the automatic, electric brake brings the rotor to a quick, smooth stop in just 4 seconds. Plates can then be easily removed from the rotor.
Adapter for 0.2 mL tubes or PCR strips (ES59772), and a rotor for deep well plate (ES59774) are available.
Features:
- Quickly spins down droplets in PCR plates
- Unique swing-out rotor design prevents spillage (patented)
- Half the size of traditional centrifuges
- Accepts all popular types of PCR plates (skirted, semi, and non) and most microtiter plates
Specifications:
Speed: 2,550 rpm (600 xg)
Capacity: 2 x 2 PCR Plates, 2 x Microtiter Plates (up to 25mm), 24 x 0.2mL PCR strips
Deceleration: 4 seconds
Dimensions: 9.2 x 10.2 x 7.75 in. (23 x 26 x 19.7 cm)
Weight: 9 lbs. (4.1 kg)
Electrical: 115V, 60Hz or 230V, 50Hz; 250W
Warranty: 2 Years
