Thermal Shaker, Heating/Cooling
Details

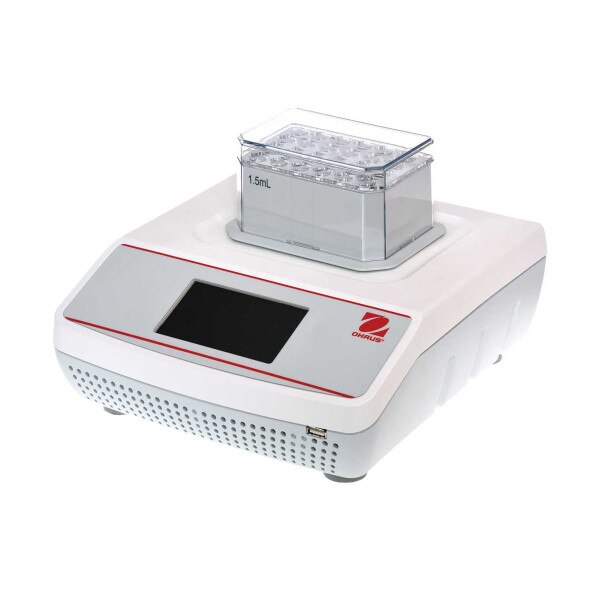

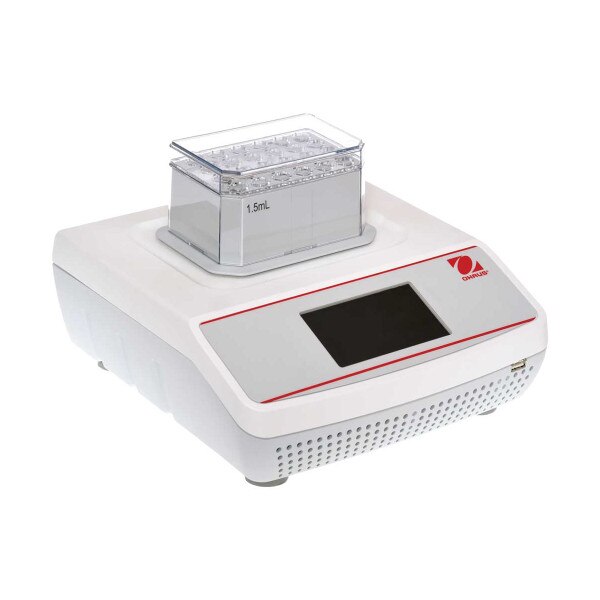

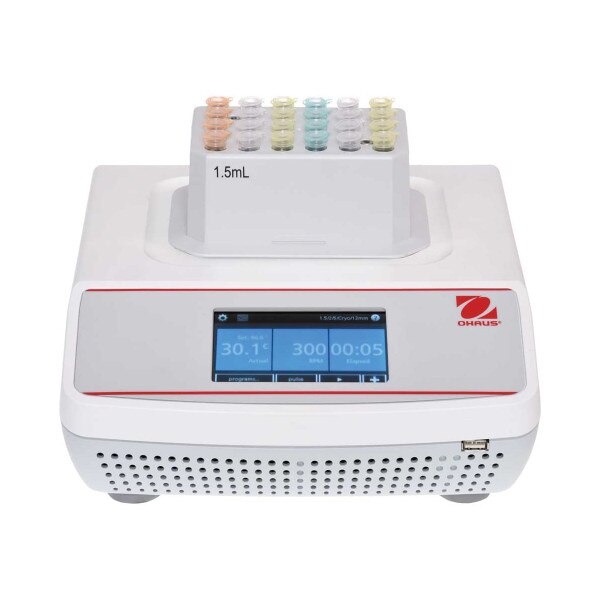

The Ohaus Incubating Heating/Cooling Thermal Shaker is designed for applications that require precise and consistent results. With heating, cooling and shaking capabilities, these shakers use interchangeable blocks to accommodate a wide variety of tubes and microplates. The easy to use touch screen allows the user to save and track progress through the live status bar for five user defined programs. The unit will read the specific block being used and prevents potential over-speed programming.
Applications: DNA, RNA, Cell Cultures, Hybridizations, Protein Studies
Display: 4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages
Operation: Detachable 3-wire cord and plug (included), unit requires a block - compatible with Eppendorf Thermomixer® R blocks
Communication: USB port provides greater flexibility in data collection and transfer
Construction: Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)
Design Features: Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function
Specifications:
Motion: Orbital, 3 mm
Capacity: 1 Thermal block
Temperature Range: 17°C below Ambient – 100°C
Speed Range: 300 rpm – 3000 rpm
Calibration: Temperature calibration
Communication: USB
Control: Touch
Cooling Rate: Above ambient 2-3°C/min
Dimensions (H x L x W): 5.4 x 10.6 x 10.03 in (137 x 269 x 262 mm)
Drive System: Brushless DC Motor
Heating Rate (/min): 5°C/min
Net Weight: 10.8 lb (4.9 kg)
Orbit: 0.1 in (3 mm)
Power: 120V, 1.8A, 50/60Hz
Power Consumption: 215 W
Safety Certification: TUV
Speed Accuracy: ±2%
Speed Range: 300 rpm – 3000 rpm
Temperature Accuracy (±): +/- 0.5°C between 20°C and 45°C; +/-2°C below 20°C and 45°C
Timer: 1 second – 99 hours, 59 minutes
Working Environment: 41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
Product Documents:
Product Datasheet
Product Manual
Applications: DNA, RNA, Cell Cultures, Hybridizations, Protein Studies
Display: 4.3 inch (10.9 cm) color touchscreen Liquid Crystal Display (LCD) which can be programmed in six languages
Operation: Detachable 3-wire cord and plug (included), unit requires a block - compatible with Eppendorf Thermomixer® R blocks
Communication: USB port provides greater flexibility in data collection and transfer
Construction: Valox cool touch housing, removable plastic rack, cover and screwdriver for block removal (included)
Design Features: Hot top indicator, audible alarm, maximum temperature limiting function, temperature priority function, pulse/quick mix mode, temperature calibration mode, temperature ramp rate function
Specifications:
Motion: Orbital, 3 mm
Capacity: 1 Thermal block
Temperature Range: 17°C below Ambient – 100°C
Speed Range: 300 rpm – 3000 rpm
Calibration: Temperature calibration
Communication: USB
Control: Touch
Cooling Rate: Above ambient 2-3°C/min
Dimensions (H x L x W): 5.4 x 10.6 x 10.03 in (137 x 269 x 262 mm)
Drive System: Brushless DC Motor
Heating Rate (/min): 5°C/min
Net Weight: 10.8 lb (4.9 kg)
Orbit: 0.1 in (3 mm)
Power: 120V, 1.8A, 50/60Hz
Power Consumption: 215 W
Safety Certification: TUV
Speed Accuracy: ±2%
Speed Range: 300 rpm – 3000 rpm
Temperature Accuracy (±): +/- 0.5°C between 20°C and 45°C; +/-2°C below 20°C and 45°C
Timer: 1 second – 99 hours, 59 minutes
Working Environment: 41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
Product Documents:
Product Datasheet
Product Manual
