Vortex Mixer, Mini Pulsing
Details
The Ohaus Pulsing Mini Vortex Mixer's powerful pulsing vortex action produces excellent cell disruption for glass bead procedures in only minutes. The pulsing action reduces heat generation while providing more effective mixing.
Applications: Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples

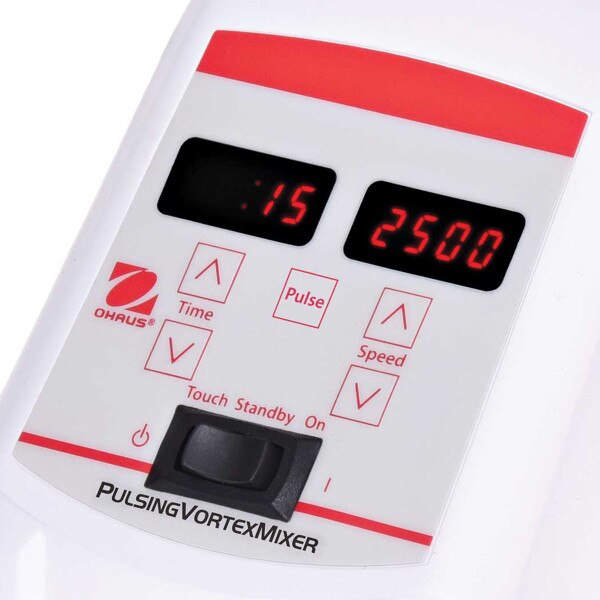

Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation: Detachable 3-wire cord and plug (included)
Communication: N/A
Construction: Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
Design Features: Microprocessor-control to maintain set speed for consistent mixing action (digital models), 230V models have a maximum speed of 2500 rpm
Specifications:
Control: Pulsing
Duty Rating: Intermittent
Orbit: 0.1 in (2.5 mm)
Speed Range: 500 rpm – 3000 rpm
Capacity: 0.5 kg
Dimensions: 6.5 in x 8.3 in x 4.8 in (16.5 cm x 21 cm x 12.3 cm) (HxLxW)
Net Weight: 9.7 lb (4.4 kg)
Power: 120V, 1.2A, 50/60Hz
Power Consumption: 135 W
Safety Certification: TUV
Working Environment: 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
Applications: Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples
Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation: Detachable 3-wire cord and plug (included)
Communication: N/A
Construction: Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
Design Features: Microprocessor-control to maintain set speed for consistent mixing action (digital models), 230V models have a maximum speed of 2500 rpm
Specifications:
Control: Pulsing
Duty Rating: Intermittent
Orbit: 0.1 in (2.5 mm)
Speed Range: 500 rpm – 3000 rpm
Capacity: 0.5 kg
Dimensions: 6.5 in x 8.3 in x 4.8 in (16.5 cm x 21 cm x 12.3 cm) (HxLxW)
Net Weight: 9.7 lb (4.4 kg)
Power: 120V, 1.2A, 50/60Hz
Power Consumption: 135 W
Safety Certification: TUV
Working Environment: 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
