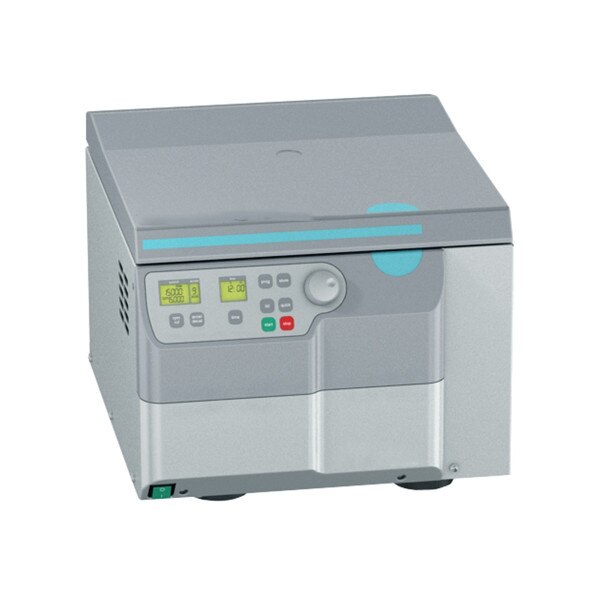

Z366 High Performance Centrifuge
Details
For applications requiring increased capacity over the Z306 or Z326 series centrifuges, the Z366 series offer a unique “Mid-Range” swing out rotor that accepts a variety of different tubes, including up to 16 x 50mL or 40 x 15mL. Despite this step up in capacity, the Z366 maintains a surprisingly compact design, with the standard air-cooled model featuring a footprint of 17 x 20 inches.
In addition to the popular 4 x 250mL swing out rotor, a variety of additional rotors are also available. Angled rotors range from a 24 x 1.5mL micro rotor to a high capacity 6 x 250ml rotor. A 2 x 3 microplate rotor is also available.
Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (RCF), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust acceleration/deceleration rates, and change the end of run alarm tone.
Features:
- Accepts a variety of different tubes
- Surprisingly compact design
- Advanced microprocessor controls allow for instant rotor identification
- Retrieve saved programs
- Easy to use front panel
Specifications:
Speed Range: 200 to 16,000 rpm
Max. RCF: 24,325 x g
Max Capacity: 4 x 250 mL (Swing out), 6 x 250 mL (Angled)
Dimensions: 17 x 20 x 14.2 in (43 x 51 x 36 cm)
Timer: up to 99 hr, 59 min and cont.
Weight: 114 lbs.
Electrical: 120V, 60Hz
Wattage: 520W
In addition to the popular 4 x 250mL swing out rotor, a variety of additional rotors are also available. Angled rotors range from a 24 x 1.5mL micro rotor to a high capacity 6 x 250ml rotor. A 2 x 3 microplate rotor is also available.
Advanced microprocessor controls allow for instant rotor identification, which automatically converts the rotational speed to the relevant g-force (RCF), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving saved programs, the easy to use front panel can adjust acceleration/deceleration rates, and change the end of run alarm tone.
Features:
- Accepts a variety of different tubes
- Surprisingly compact design
- Advanced microprocessor controls allow for instant rotor identification
- Retrieve saved programs
- Easy to use front panel
Specifications:
Speed Range: 200 to 16,000 rpm
Max. RCF: 24,325 x g
Max Capacity: 4 x 250 mL (Swing out), 6 x 250 mL (Angled)
Dimensions: 17 x 20 x 14.2 in (43 x 51 x 36 cm)
Timer: up to 99 hr, 59 min and cont.
Weight: 114 lbs.
Electrical: 120V, 60Hz
Wattage: 520W
