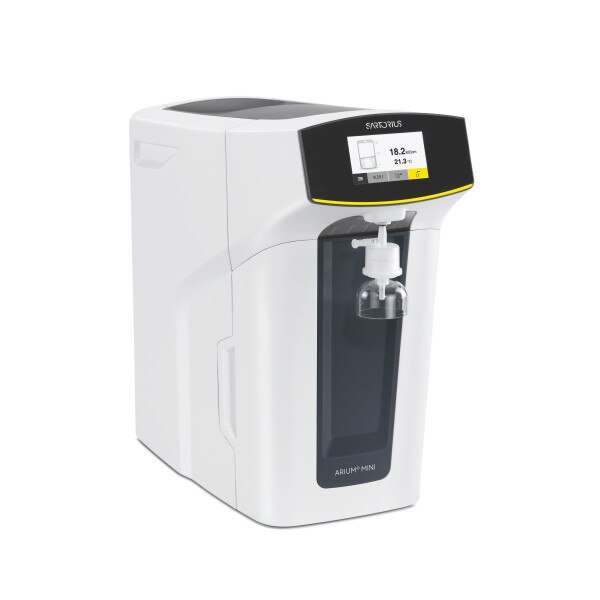

Arium® Mini Plus Benchtop Water System w/ UV

The Arium® Mini Plus UV is a combined ultrapure water system developed to provide ASTM Type 1 and Type 3 water. The system is ideally suited for general and analytical applications at a daily need < 10 liters. For critical analysis the integrated UV lamp ensure an organic reduction down to < 5 ppb TOC*.

Pre-treated water needed to produce ultrapure water is stored in the 5-liter unique Bag integrated on the side of the system. Uncomplicated exchange of the Bag facilitates upkeep of the system and considerably reduces maintenance time compared with conventional tank systems.

The Arium® Mini Plus, is directly connected to a feed water tap. The feed water is treated by a special designed pre-treatment cartridge, which consists of a combination of activated carbon and a reverse osmosis module.

Intuitive menu navigation for optimal user comfort
Besides the unique Bagtank, the system is equipped with a high-resolution, touch-activated color display. Easy-to-understand icons guide the user intuitively through the menu. The Favorites function automatically stores the volume last dispensed. This increases efficiency and prevents errors during repeated dispensing of identical volumes.

Integrated Bagtank technology
Arium® Mini is the only ultrapure water system with integrated Bagtank technology. The 5-liter bag developed for the Arium® Mini is made of the proprietary material S71. Originally developed for the pharmaceutical industry, this multilayer, specialized film conforms to biocompatibility standards. Its quality and composition allows you to optimally store your pre-treated pure water for the production of Type 1 ultrapure water.

Features:
- Simple Bag exchange in less than 5 minutes
- No use of cleaning agents needed
- Optimized purity, due to closed system, avoiding a permanent biofilm
- Intuitive menu navigation with high quality glass touch-display, developed through customer survey
- Produce ASTM Type 1 ultrapure (18.2 MOhm) / Type 3 pure water (8 l/h)
- Small Footprint, only 28 cm width
- Volume dispense from 50 mL
- Delivers a flow rate of 1 liter per minute

Specifications:
Ultrapure water consumption: 1-10 L/day
Water system type: Combined Lab Water System (Type 1 Ultrapure & Type 3 Reverse Osmosis)
Product Water Resistivity (at 25 °C): 18.2 MΩ × cm &< 20 µS/cm
Water Dispensing Flow Rate (Type 1): 1 L/min (ASTM Type 1)/ 8 L/h (Type 3)
UV Source: Yes
Total Organic Carbon (TOC): < 5 ppb
Line Voltage: 100 – 240 V
