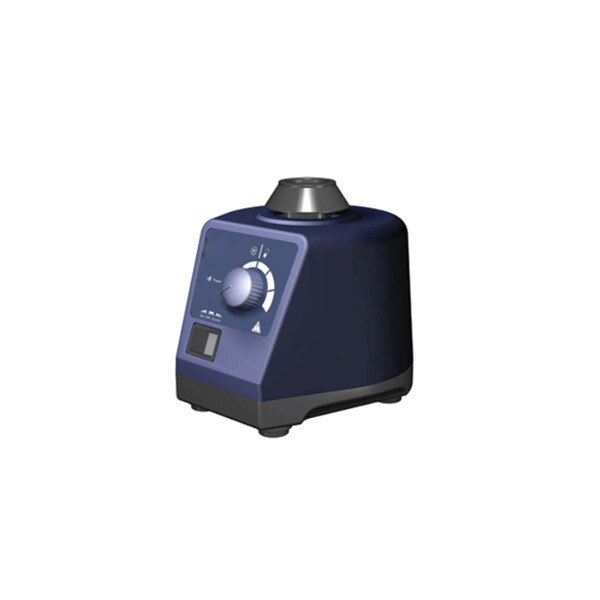

Azer Vortex Mixer

SKU ES3362
(0) No Reviews yet


This compact Vortex Mixer offers variable speed settings, a quiet and stable operation, as well as a continuous or touch operation. The 4mm orbital diameter offers consistent and effective sample mixing, while the electronic speed control ensures the selected speed is maintained during operation.

Additional accessories, sold separately, include a universal adapter (ES3362T), a flat head platform pad (ES3362P), and a variety of foam test tube inserts.

- Touch operation or continuous mode
- Variable speed control from 0 to 2500rpm
- Used for various mixing applications with optional adapters
- Specially designed vacuum suction feet for body stablility
- Robust aluminum-cast construction

Foam insert capacity options:
ES3362T-6 – 48 x 6mm test tubes
ES3362T-10 – 18 x 10mm test tubes
ES3362T-12 – 12 x 12mm test tubes
ES3362T-16 – 8 x 16mm test tubes

ES3362T-20 – 8 x 20mm test tubes

Voltage: 110-120V / 220-230V, 50/60Hz
Power: 60W
Mixing Motion: Orbital
Orbital Diameter: 4mm
Motor Type: 58W
Motor Rating Output: 10W
Speed Range: 0-2500rpm
Speed Display: Scale
Run Type: Touch operation/continuous
Dimensions (W x H x D): 5 x 5.1 x 6.3in (127 x 130 x 160mm)
Weight: 8lbs (3.5kg)
Permissible Ambient Temp: 5-40ºC
Permissible Relative Humidity: 80%RH
Protection Class: IP21
