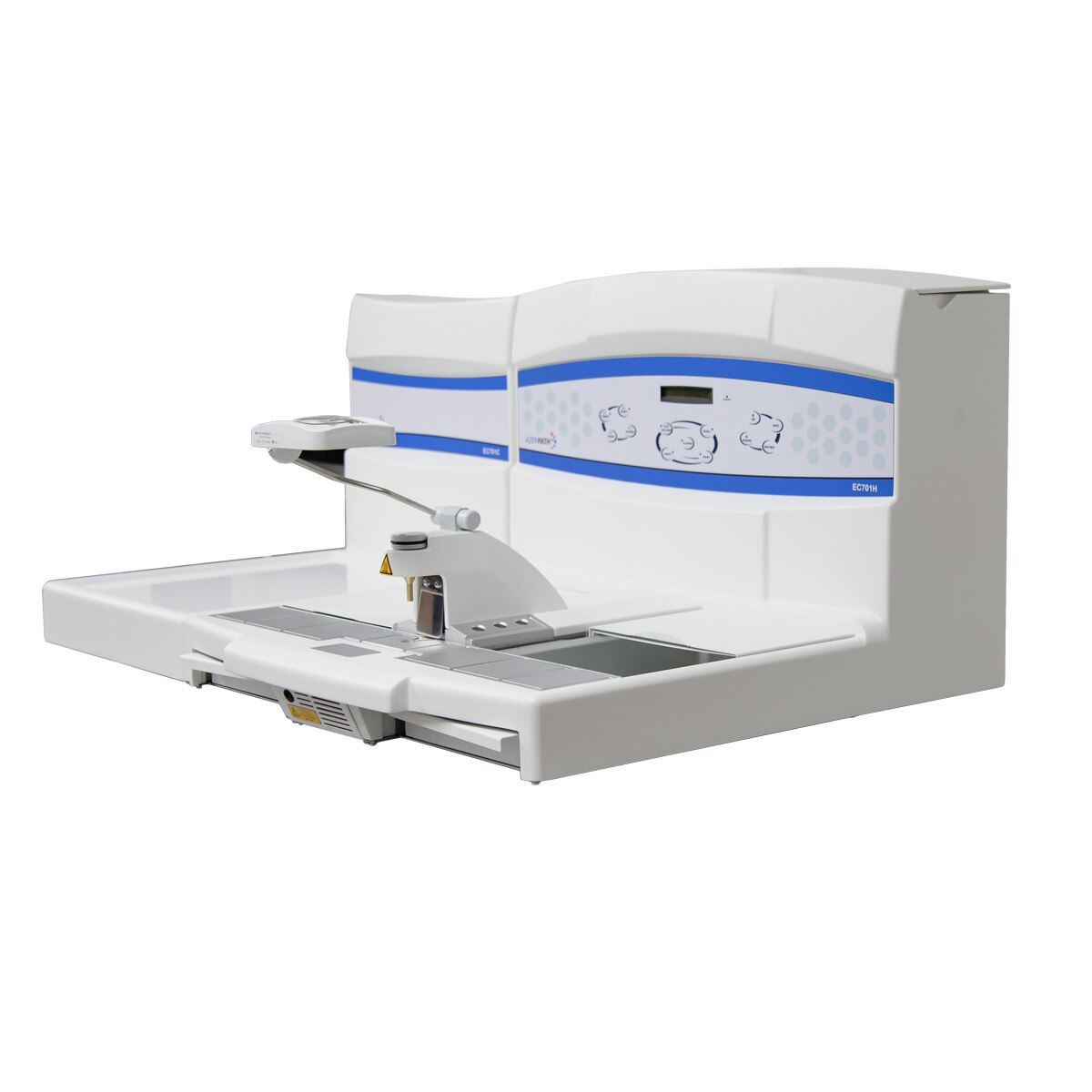

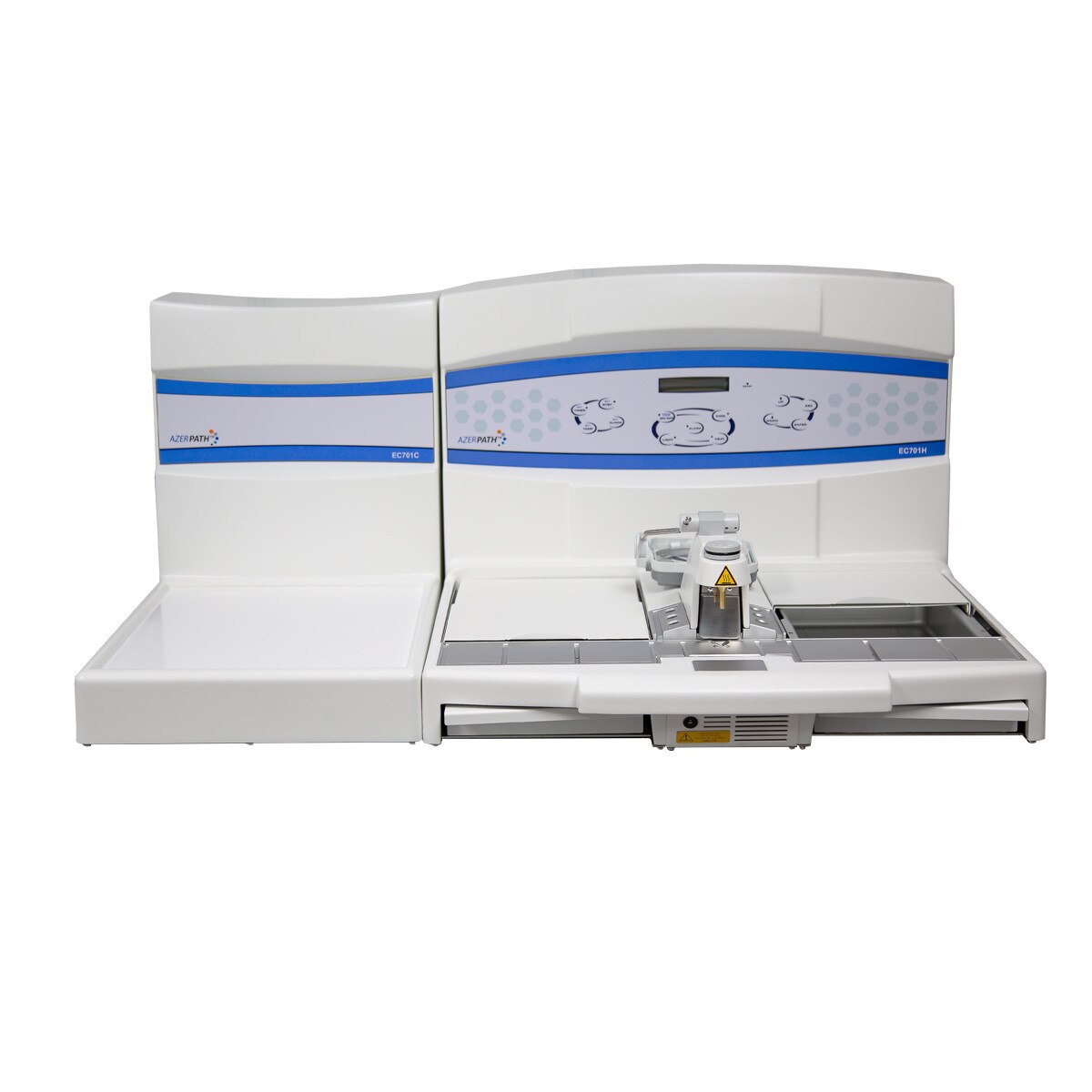

AzerPath Embedding Center

The AzerPath™ Tissue Embedding System incorporates fully-automated procedures into your daily processing of specimen. Its ergonomic design offers a heated work area with anti-reflective white LEDS along with an adaptable cooling module that can be positioned on the right or left of the dispensing system. Our tissue embedding center features a user-friendly operating panel with easy temperature and timer programming. The easy setup allows you to set heating module to Energy Saving mode, or remain in constant Dispense mode while the cooling module can be auto set.

Maximize productivity with a large capacity paraffin tank, 2 large chambers for holding up to 190 cassettes and 400 base molds, removable trays for an easy cleaning process, a multi-positional field magnifier as well as 6 independently heated holes, making it easy to work with standard pliers.

Features:
- Offers a heated work area with anti-reflective white LEDS
- Adaptable cooling module that can be positioned on the right or left of the dispensing system

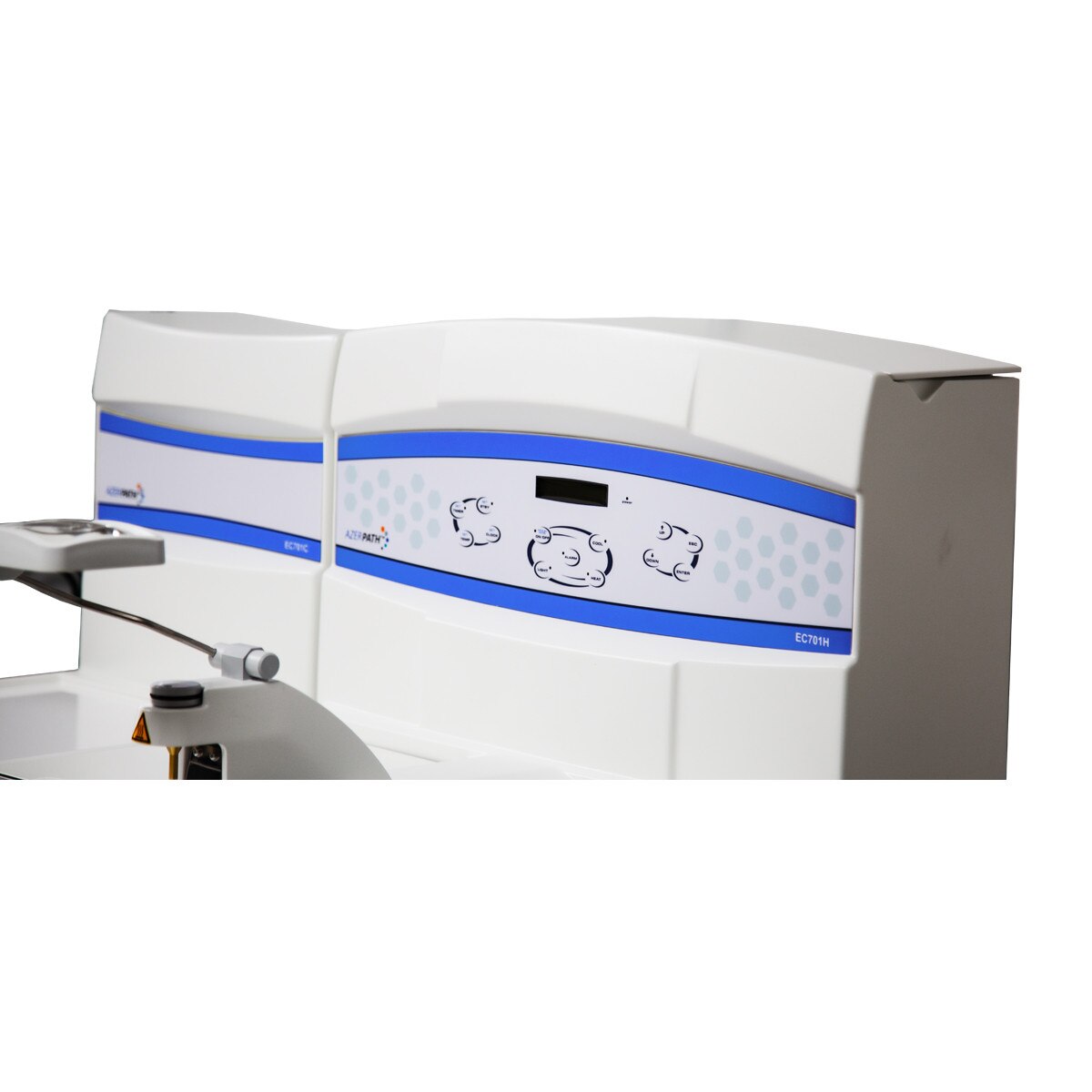

- Features a user-friendly operating panel with easy temperature and timer programming
- 2 large chambers for holding up to 190 cassettes and 400 base molds
- Removable trays for an easy cleaning process
- Multi-positional field magnifier
- 6 independently heated holes, making it easy to work with standard pliers

Specifications:
Console dimensions: 23.4 x 25.6 x 16.9 in.
Tray dimensions: 10.3 x 6.9 x 2.2 in.
Weight: 61.3lbs.
Cassette capacity: 190
Base mold capacity: 400
Heating:
Paraffin tank capacity: 5L
Dimensions: 24 x 26 x 17 in.
Weight: 62lbs.
Temp. range: 40ºC - 70ºC
Electrical: 100V - 120V, 50/60 Hz
Cooling:
Paraffin tank capacity: 5L
Dimensions: 14 x 25 x 16 in.
Weight: 54lbs.
Temp. range: -12ºC - 0ºC
Electrical: 110V - 120V, 50/60 Hz

Product Documents:
Product Literature
