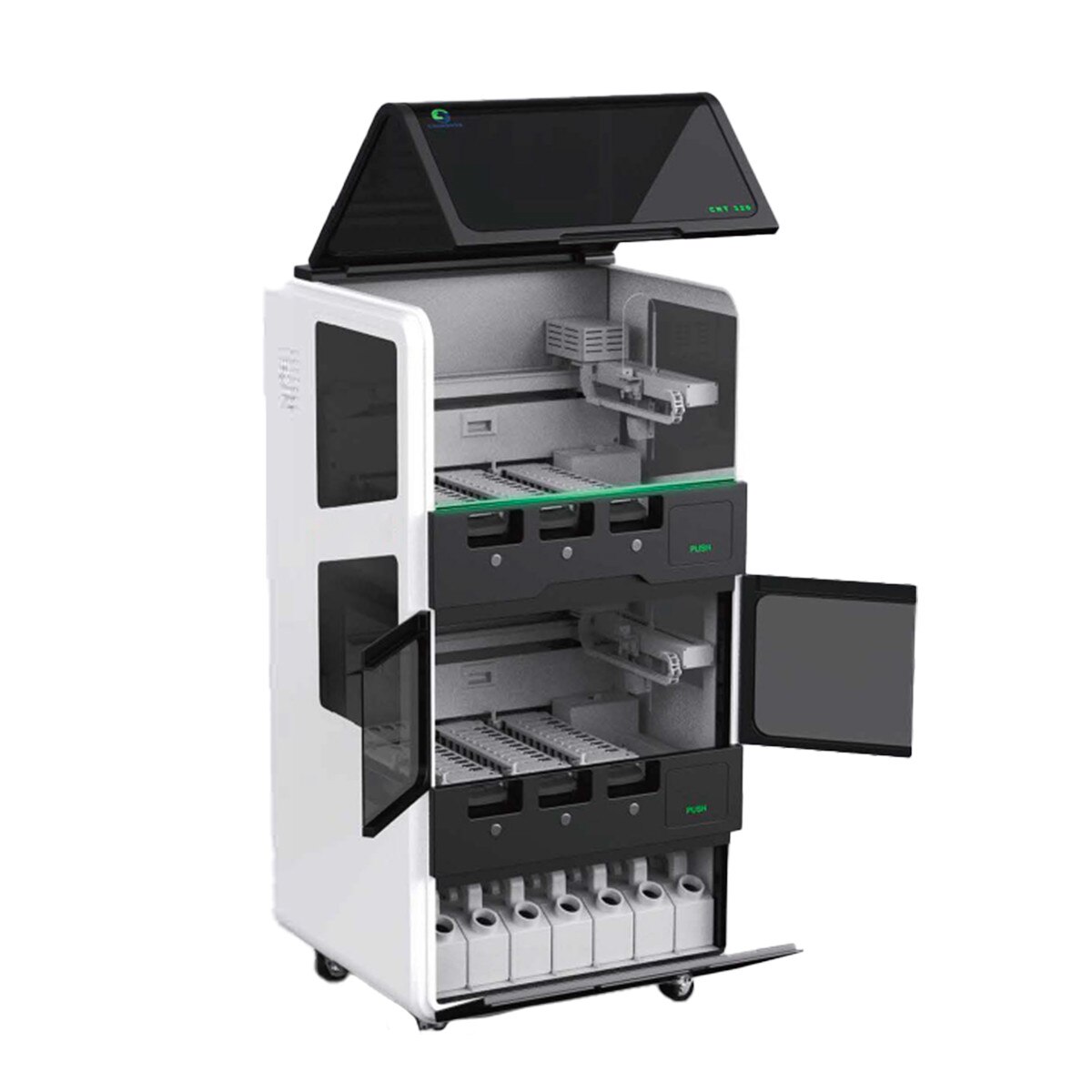

AzerPath IHC 320 Fully Automatic IHC Stainer
Details
Optimize your IHC lab workflow with the AzerPath IHC 320 Full Automatic Multiplex IHC Stainer. This advanced system supports continuous operation, loading up to 60 slides across six independent frames simultaneously. Enjoy a fully automated process, including slice drying, deparaffination, antigen retrieval, and more, enhancing lab standardization and efficiency. Standalone.
Features:
- Fully-automatic: Baking, deparaffinization, antigen retrieval, blocking, detection, and counterstain for IHC, Multiplex IHC, and ISH applications.
- Reliable: Real-time monitoring and tracking; identify labels by both camera and infrared to avoid human error.
- Multifunctional: Supports IHC, ISH, Multiplex IHC, IF and ICC protocols.
- High-throughput: 60 slides loading capacity. Allow 180 tests per day.
- High Resolution: The innovative MicroStackerTM polymer technology ensures sensitive and specific detection.
- Intuitive: User-friendly interface with visual cues on reagent volume and program status.
- Flexible: Ability to continuously load and unload slides during runs. Supports multiple devices managed by a central computer. Customizable protocols and LIS integration.
- Eco-Friendly: Separate waste containers for hazardous (DAB) and non-hazardous waste, helping labs reduce disposal costs and environmental impact.
| General Characteristics: | |
|---|---|
| Intuitive software interface: | Visual monitoring of reagent volume, running time, and fault messages. Customizable protocols and LIS integration. |
| Waste Separation: | Non-toxic deparaffinization solution. Separate containers for hazardous (DAB) and non-hazardous waste. |
| Slide Capacity: | 6 trays, 60 slides, 10 slides per tray. Support continuous loading. |
| Turnaround Time: | ≤3.5 hours |
| Multifunctional: | Supports IHC, ISH, Multiplex IHC, ICC protocols and IF. |
| Temperature control: | 60 individual heating units, slides can be heated up to 100ºC for antigen retrieval. |
| Dispense volume: | Adjustable: 100 µL, 120 µL, or 150 µL |
| Reagent container capacity: | 5mL, 10mL, 25mL, and 40mL. V shape design to minimize the dead volume. |
| Number of reagent container spots: | 72 |
| Bulk liquid container: | 4L |
| Waste containers: | 15L |
| Fluid probe: | Titanium alloy with Teflon |
| Environmental friendly: | All non-hazardous except DAB which disposed separately. |
| Environmental Requirements: | |
| Operating temperature: | 5°C ~ 35°C (41°F ~ 95°F) |
| Maximum heating energy output: | 1500 VA |
| Dimensions (L x W x H): | 850 mm x 785 mm x 1680 mm |
| Weight: | 250kg |
| Electrical Parameters: | |
| Voltage and Mains frequency: | AC 110V/60Hz or AC 220V/50Hz |
| Power consumption: | 2500 VA |
Product Documents:
Product Literature
