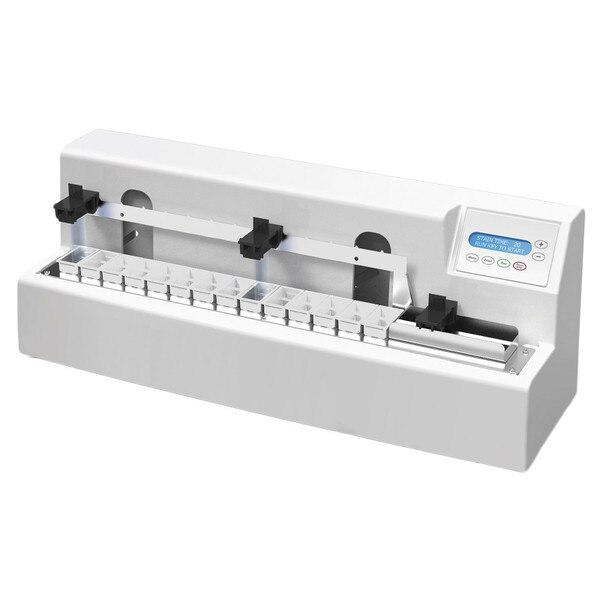

AzerPath Linear Stainer, ST100
Details
The AzerPath Linear Stainer, ST100 combines simplicity with consistent quality staining results. It is ideal for Mohs techniques, Special Stains, and general surgical pathology frozen sections. With a small foot-print, it will fit on top of most cryostats. The unit can be connected directly to current exhaust system.
Ideal for H&E stains up to four slides at a time per slide carrier. Continuous loading feature to keep up with lab demand. Programmable station timing from 2-300 seconds. 14 reagent stations including running rinse water stations. Holding station for 16 processed slides. Only 50mL per reagent container. Up to 900 slides per hour at 10 second station time. Designed and manufactured in the USA.
The AzerPath Linear Stainer includes a stainless steel tank cover, reagent stations (14), rinse stations (3), slide carriers (3), an exit tank, and a water inlet hose.
Features:
- Continuous loading feature to keep up with lab demand
- Programmable for time (2-300 seconds) and agitation (0-3 dips every 5 seconds)
- Exit tank holds up to 16 processed slides
- Can be integrated into current laboratory exhaust system
- Three running water stations can be served by one tap water source
- 14 reagent stations
- Only 50mL per reagent container
- Up to 900 slides per hour at 10 sec station time
- Fits on top of most cryostats
- Ideal for H&E Stains up to 4 slides at a time per slide carrier
- Designed and Manufactured in the USA
Specifications:
Number of Stations: 14
Slide Carrier Capacity: 4 slides
Number of Rinse Stations: Up to 3 (user configurable)
Processed Slide Holding Tank: Up to 16 slides (4 slide carriers)
Reagent Container Volume: 50mL
Display: 2 line x 16 character LCD display
Station Time: 2-300 seconds
Agitation Selection: 0-3 dips every 30 seconds
Dimensions (W x D x H): 25 x 8.5 x 11 in. (63 x 22 x 28 cm)
Weight: 27 lbs. (13 kg)
Voltage: 100-240 volts AC, 50/60 Hz
Current: 1 Amp Maximum
Product Documents:
Product Flyer
Stain Protocol
