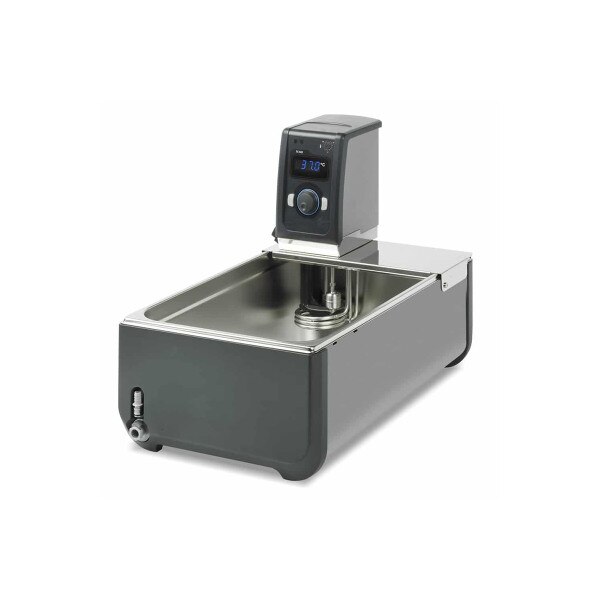

Circulating bath, heated, 18L stainless steel tank & TC120 immersion thermostat
Details
The TC120 heating circulating bath with a 18 Liter stainless steel tank offers accurate temperate control for staightforward applications in the range of -15°C to 120°C. The TC120 heating circulator can be used in combination with any stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical sided tank.
Features:
- Simple, intuitive user interface: dial and two function buttons
- 3 programmable temperature presets
- Clear, bright 4 digit LED display
- Low level protection and adjustable over temperature cut out
- Countdown timer with audible alarm
Applications:
• Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
• University research – temperature control of spectrophotometers and refractometers and jacketed vessells
• Industrial labs – temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing
Specifications:
Thermostat dimensions (H x D x W): 310 x 440 x 200mm
Tank dimensions (H x D x W): 690 x 420 x 420mm
Tank capacity: 18 Liter
Ambient temp: 0°C to 120°C
Stability @70ºC: 0.05 ±ºC
Uniformity @70ºC: 0.1 ±ºC
Setting resolution: 0.1ºC
Display: 4 digit LED
No. of temp presets: 3
Re-calibration points: 2
Safety - over temp: Adjustable cut-out
Fluid level - float: Yes
Alarms (can be configured to switch a relay): High (no relay)
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 20mm
Depth below tank rim: 135mm
Maximum pressure (water): 210mbar
Maximum flow (water): 16L/min
Pump connector 6mm bore: Fits 9mm inner diameter tubing
Pump connector 9mm bore: Fits 15mm inner diameter tubing
Weight: 7.3kg
Product Documents:
Product Flyer
Features:
- Simple, intuitive user interface: dial and two function buttons
- 3 programmable temperature presets
- Clear, bright 4 digit LED display
- Low level protection and adjustable over temperature cut out
- Countdown timer with audible alarm
Applications:
• Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
• University research – temperature control of spectrophotometers and refractometers and jacketed vessells
• Industrial labs – temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing
Specifications:
Thermostat dimensions (H x D x W): 310 x 440 x 200mm
Tank dimensions (H x D x W): 690 x 420 x 420mm
Tank capacity: 18 Liter
Ambient temp: 0°C to 120°C
Stability @70ºC: 0.05 ±ºC
Uniformity @70ºC: 0.1 ±ºC
Setting resolution: 0.1ºC
Display: 4 digit LED
No. of temp presets: 3
Re-calibration points: 2
Safety - over temp: Adjustable cut-out
Fluid level - float: Yes
Alarms (can be configured to switch a relay): High (no relay)
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 20mm
Depth below tank rim: 135mm
Maximum pressure (water): 210mbar
Maximum flow (water): 16L/min
Pump connector 6mm bore: Fits 9mm inner diameter tubing
Pump connector 9mm bore: Fits 15mm inner diameter tubing
Weight: 7.3kg
Product Documents:
Product Flyer
