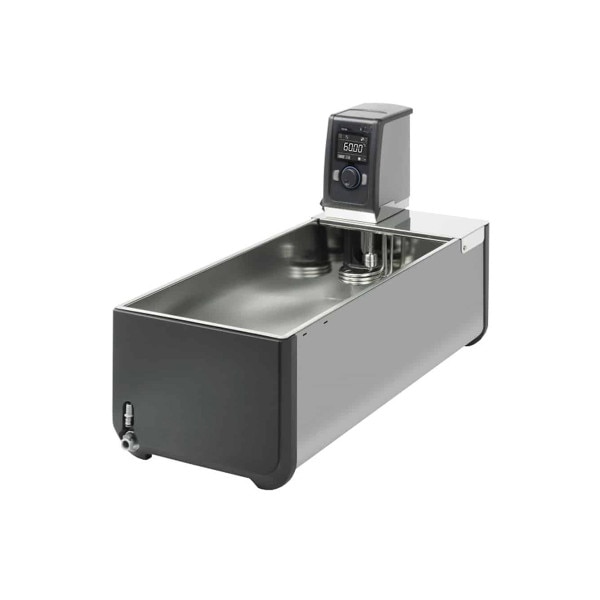

Circulating bath, heated, 38L stainless steel tank & TX150 immersion thermostat
Details
The TX150 heating circulating bath with a 38 Liter stainless steel tank offers accurate temperate control for staightforward applications in the range of -15°C to 150°C. The TX150 heating circulator can be used in combination with any stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical sided tank.
Features:
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- Low-liquid detection (float switch)
- 5 point user calibration
- Easy to program via interface or remotely via PC / Laptop with Labwise® software
Applications:
• University research – temperature control of external equipment such as electrophoresis tanks or jacket vessels
• Industrial labs – temperature probe calibration
Specifications:
Thermostat dimensions (H x D x W): 310 x 200 x 440mm
Tank dimensions (H x D x W): 410 x 410 x 860mm
Tank capacity: 38 Liter
Ambient temp: -15°C to 150°C
Stability @70ºC: 0.01 ±ºC
Uniformity @70ºC: 0.05 ±ºC
Setting resolution: 0.1ºC
Display: Full color QVGA TFT
Timer function: 1 minutes to 99 hours 59 minutes
No. of temp presets: 3
Re-calibration points: 5
Socket for external probe: Yes
Communications interface: USB, RS232
Programmable: Remote via PC/laptop 1 program/30
Relays: 1
Safety - over temp: Adjustable cut-out
Fluid level - float: Yes
Language options: EN, FR, DE, IT, ES
Alarms (can be configured to switch a relay): High and low
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 200mm
Depth below tank rim: 145mm
Maximum pressure (water): 310mbar
Maximum flow (water): 18L/min
Pump connector 6mm bore: Fits 9mm inner diameter tubing
Pump connector 9mm bore: Fits 15mm inner diameter tubing
Weight: 13.8kg
Product Documents:
Product Flyer
