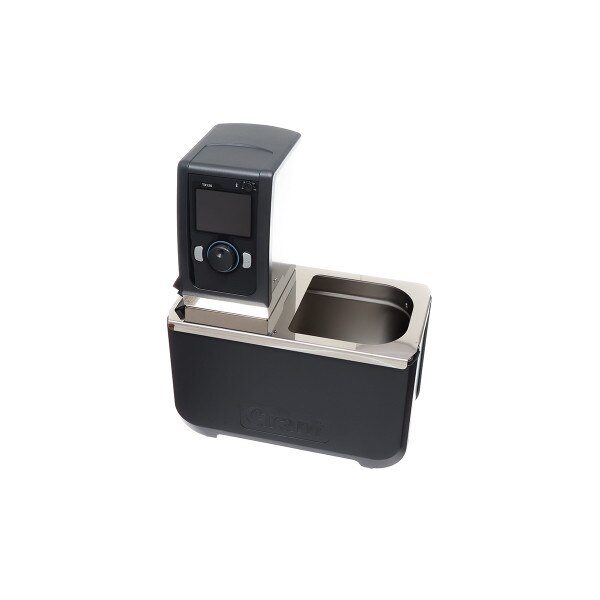

Circulating bath, heated, 5L stainless steel tank & TXF200 immersion thermostat
Details
The TXF200 heating circulating bath with a 5 Liter stainless steel tank offers accurate temperate control for staightforward applications in the range of -15°C to 200°C. The TXF200 heating circulator can be used in combination with any stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical sided tank.
Features:
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
Applications:
• Industrial labs – thermostat calibration, haze analysis (brewing), temperature probe calibration and material testing
• University research – temperature control of external equipment such as spectrophotometers and refractometers
• Circulation of temperature control fluid to jacketed vessels
Specifications:
Thermostat dimensions (H x D x W): 310 x 200 x 440mm
Tank dimensions (H x D x W): 330 x 410 x 410mm
Tank capacity: 5 Liter
Ambient temp: +15°C to 200°C
Stability @70ºC: 0.01 ±ºC
Uniformity @70ºC: 0.05 ±ºC
Setting resolution: 0.1ºC (0.01 with Labwise®)
Display: Full color QVGA TFT
Timer function: 1 minutes to 99 hours 59 minutes
No. of temp presets: 3
Re-calibration points: 5
Socket for external probe: Yes
Communications interface: USB, RS232
Programmable: Direct via user interface or remote via PC/ laptop 10 programs/ 100 segments
Relays: 1
Safety - over temp: Adjustable cut-out
Fluid level - float: Yes
Language options: EN, FR, DE, IT, ES
Alarms (can be configured to switch a relay): High and low
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 200mm
Depth below tank rim: 145mm
Maximum pressure (water): 530mbar
Maximum flow (water): 22L/min (adjustable flow rate)
Pump connector 6mm bore: Fits 9mm inner diameter tubing
Pump connector 9mm bore: Fits 15mm inner diameter tubing
Weight: 5.8kg
Product Documents:
Product Flyer
Features:
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
Applications:
• Industrial labs – thermostat calibration, haze analysis (brewing), temperature probe calibration and material testing
• University research – temperature control of external equipment such as spectrophotometers and refractometers
• Circulation of temperature control fluid to jacketed vessels
Specifications:
Thermostat dimensions (H x D x W): 310 x 200 x 440mm
Tank dimensions (H x D x W): 330 x 410 x 410mm
Tank capacity: 5 Liter
Ambient temp: +15°C to 200°C
Stability @70ºC: 0.01 ±ºC
Uniformity @70ºC: 0.05 ±ºC
Setting resolution: 0.1ºC (0.01 with Labwise®)
Display: Full color QVGA TFT
Timer function: 1 minutes to 99 hours 59 minutes
No. of temp presets: 3
Re-calibration points: 5
Socket for external probe: Yes
Communications interface: USB, RS232
Programmable: Direct via user interface or remote via PC/ laptop 10 programs/ 100 segments
Relays: 1
Safety - over temp: Adjustable cut-out
Fluid level - float: Yes
Language options: EN, FR, DE, IT, ES
Alarms (can be configured to switch a relay): High and low
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 200mm
Depth below tank rim: 145mm
Maximum pressure (water): 530mbar
Maximum flow (water): 22L/min (adjustable flow rate)
Pump connector 6mm bore: Fits 9mm inner diameter tubing
Pump connector 9mm bore: Fits 15mm inner diameter tubing
Weight: 5.8kg
Product Documents:
Product Flyer
