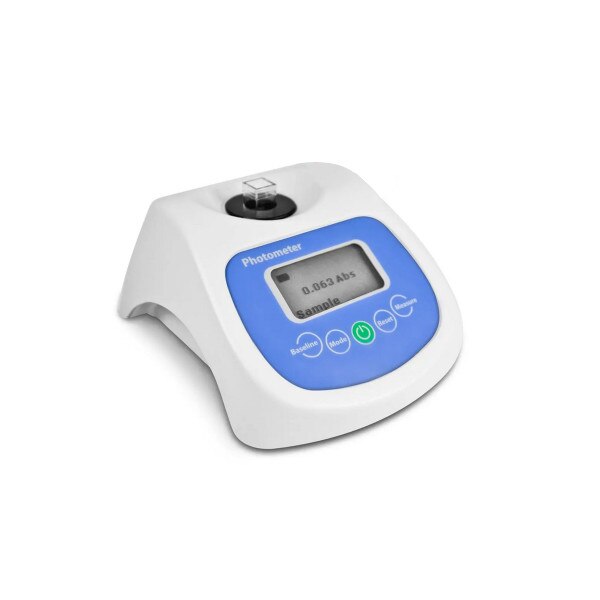

Densitometer, Photometer, portable

The densitometer, photometer is a compact, portable, rechargeable battery powered photometer. It's 600 nm wavelength optical system allows you to measure estimated total number of cells (OD600), turbidity measurement method (McFarland (McF)), and protein concentration measurement (Bradford protein assay method).

The device serves as an inexpensive alternative to a spectrophotometer, which is commonly used for these applications. As the DEN-600 is battery powered and compact, it can be comfortably located in a biosafety cabinet, anaerobic chamber or quickly relocated.

The cell holder accommodates standard 10 mm path cuvettes, round bottom, conical vials or falcon tubes. USB connectivity and DEN software allow for data transfer, data processing and calculation.

Features:
- Compact, portable, rechargeable battery
- 600 nm wavelength optical system
- Inexpensive alternative to a spectrophotometer
- Accommodates 10 mm path cuvettes, round bottom, conical vials or falcon tubes

Applications:
• Cell concentration measurement
• Cell growth data estimation
• Log phase estimation for microbial cells induction
• Competent cell preparation
• Bradford protein assay method
• Antibiotic susceptibility testing
• Inhibitory tests

Specifications:
Light source: LED, self-calibrating
Wavelength (λ), nm: 600 ± 10
Photodetector: Silicon photodiode
Vessel types: Cuvettes, round bottom tubes, falcon tubes
Measurement mode: Absorbance, Abs
    Measurement range: 0 - 3.000
    Resolution: 0.001
    Accuracy: ± 0.006 @ 1 Abs
    Repeatability: ± 0.003 @ 1 Abs
Measurement mode: McFarland, McF
    Measurement range: 0.00 - 16.00
    Resolution: 0.01
    Accuracy: ± 0.1 @ 0-8 McF
    Repeatability: ± 0.05 @ 0-8 McF
Battery type: Lithium-ion polymer battery (LiPo)
Display: LCD
PC system requirements: Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8, USB
Weight, accurate within ±10%: 0.5 kg
Dimensions (W x D x H): 120 x 145 x 65 mm
External power supply: Input AC 100–240 V 50/60 Hz, Output DC 12 V
