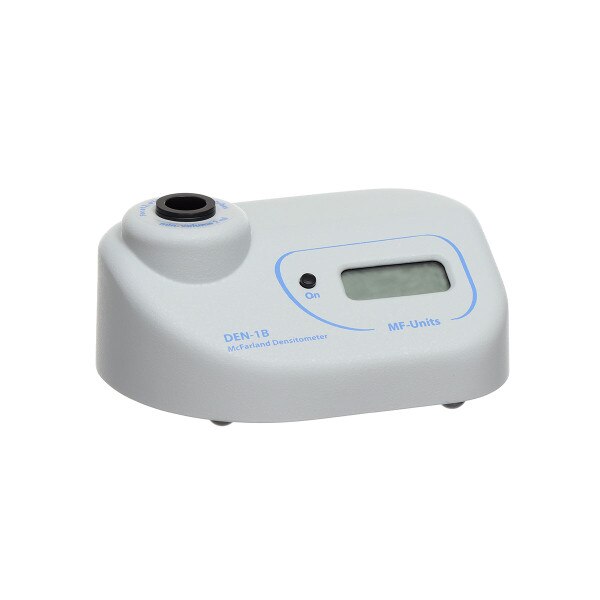

Densitometer, portable battery/mains, cell density turbidity 0.0 - 15.0 McFarland units
Details
The compact benchtop densitometers (suspension turbidity meter) are for measuring turbidity of cell suspensions in a variety of life science applications.
The densitometers are designed and factory calibrated to measure turbidity in the range of 0.5 to 4.0 McFarland units (ES59809) 0.0 to >7.5 McFarland units (ES59809P) with a small standard deviation. If required, it can deliver a wider measurement range (up to 15.00 McFarland units), but with a greater standard deviation.
Features:
- Readings, conveniently shown in McFarland units, are clearly visible on the bright LED display
- Factory calibrated – retains calibration without power supply
- Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory
- Designed for tubes with an outer diameter of 18mm. 16 mm tubes can also be accommodated by using the optional tube adaptor
- Extremely compact design with small footprint and low profile – fits easily into the smallest workspace
- Either battery powered by 3 x AAA or via external power supply
Applications:
• Life science – typical applications include determining concentration of cells (bacterial and yeast cells) in the fermentation process, detecting the susceptibility of micro-organisms to antibiotics, identifying micro-organisms with various test systems, and measuring optical density at fixed wavelength.
Specifications:
Dimensions (H x D x W): 75 x 115 x 165mm
Temperature range: +4 to 40ºC
Light source: LED
Wavelength: 565 ±15nm
Range )McFarland Units): 0.0 to 15.0
Precision: ±3%
Measurement time: 1 sec.
Tube diameter (external): 18mm
Tube diameter w/ D16 adapter: 16mm
Sample volume: >2mL
Display/display resolution: LED/0.1 McF
Independent power supply: 3 x AA batteries
External power supply: Input AC 120-230V, 50/60Hz Output DC12V
Power consumption (230V): 0.1W (0.007A)
Weight: 0.7kg
Product Documents:
Product Flyer
The densitometers are designed and factory calibrated to measure turbidity in the range of 0.5 to 4.0 McFarland units (ES59809) 0.0 to >7.5 McFarland units (ES59809P) with a small standard deviation. If required, it can deliver a wider measurement range (up to 15.00 McFarland units), but with a greater standard deviation.
Features:
- Readings, conveniently shown in McFarland units, are clearly visible on the bright LED display
- Factory calibrated – retains calibration without power supply
- Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory
- Designed for tubes with an outer diameter of 18mm. 16 mm tubes can also be accommodated by using the optional tube adaptor
- Extremely compact design with small footprint and low profile – fits easily into the smallest workspace
- Either battery powered by 3 x AAA or via external power supply
Applications:
• Life science – typical applications include determining concentration of cells (bacterial and yeast cells) in the fermentation process, detecting the susceptibility of micro-organisms to antibiotics, identifying micro-organisms with various test systems, and measuring optical density at fixed wavelength.
Specifications:
Dimensions (H x D x W): 75 x 115 x 165mm
Temperature range: +4 to 40ºC
Light source: LED
Wavelength: 565 ±15nm
Range )McFarland Units): 0.0 to 15.0
Precision: ±3%
Measurement time: 1 sec.
Tube diameter (external): 18mm
Tube diameter w/ D16 adapter: 16mm
Sample volume: >2mL
Display/display resolution: LED/0.1 McF
Independent power supply: 3 x AA batteries
External power supply: Input AC 120-230V, 50/60Hz Output DC12V
Power consumption (230V): 0.1W (0.007A)
Weight: 0.7kg
Product Documents:
Product Flyer
