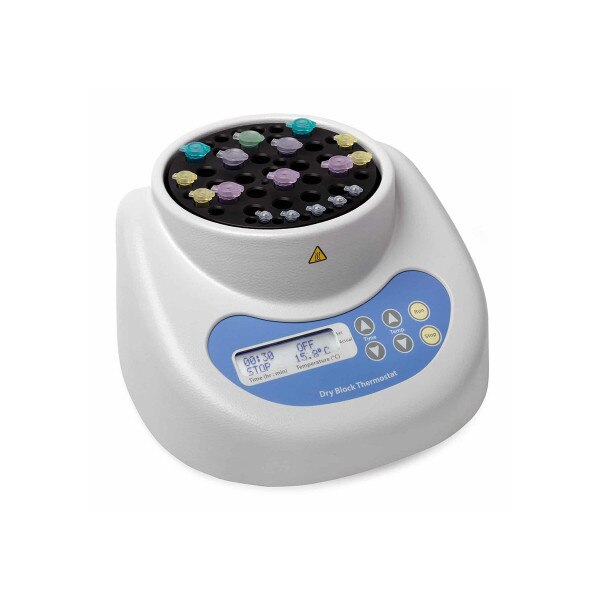

Digital Dry Block Heater
Details
The block heating system with fixed block is designed for rapid and precise heating of microtubes up to 100ºC. The BTD is a compact and flexible digital dry block heating system ideal for the rapid and precise heating of microtubes up to 100ºC. The distinctive circular block holds a combination of four microtube sizes simultaneously, and rapid heat up enables swift change of application – for maximum flexibility. The aluminum block is housed in a compact, stylish plastic molding, which is durable, sturdy and easy to clean.
Features:
- Digital temperature control for optimum precision
- Powerful heater for rapid heat-up times, 25ºC to 100ºC in just 15 minutes, 25ºC to 37ºC in just 4 minutes
- Heating block holds combinations of four microtube sizes simultaneously, up to a total of 49 tubes: 24 x 1.5/2.0 mL, 15 x 0.5 mL, 10 x 0.2 mL
- Flexible tube sizes and rapid heat-up time enables swift change of application
- Convenient integral timer for time-sensitive incubations
- Sturdy, durable, easy-to-clean plastic construction; compact design with small footprint
- 2-line display for simple and precise setting of temperature/time and for monitoring current status during operation
Applications:
• Life-science/cancer research – DNA extraction incubations, DNA denaturation, PCR, ELISA and Western blotting, molecular biology
• General – heating samples
Specifications:
Dimensions (H x D x W): 115 x 230 x 210mm
Temperature range: Ambient +5 to 100ºC
Stability: 0.1±ºC
Uniformity: 0.1±ºC @37ºC
Temperature display: 2 line x 16 characters LCD
Setting resolution: 0.1ºC
Heat up time: 15 minutes
Timer: 1-96 hrs. (increments of 1 min.)
Safety: Thermal fuse
Power consumption - 120V: 200W (0.87A)
Nominal operating voltage: 120 or 230V (50/60Hz)
Weight: 2.8kg
Product Documents:
Product Flyer
Features:
- Digital temperature control for optimum precision
- Powerful heater for rapid heat-up times, 25ºC to 100ºC in just 15 minutes, 25ºC to 37ºC in just 4 minutes
- Heating block holds combinations of four microtube sizes simultaneously, up to a total of 49 tubes: 24 x 1.5/2.0 mL, 15 x 0.5 mL, 10 x 0.2 mL
- Flexible tube sizes and rapid heat-up time enables swift change of application
- Convenient integral timer for time-sensitive incubations
- Sturdy, durable, easy-to-clean plastic construction; compact design with small footprint
- 2-line display for simple and precise setting of temperature/time and for monitoring current status during operation
Applications:
• Life-science/cancer research – DNA extraction incubations, DNA denaturation, PCR, ELISA and Western blotting, molecular biology
• General – heating samples
Specifications:
Dimensions (H x D x W): 115 x 230 x 210mm
Temperature range: Ambient +5 to 100ºC
Stability: 0.1±ºC
Uniformity: 0.1±ºC @37ºC
Temperature display: 2 line x 16 characters LCD
Setting resolution: 0.1ºC
Heat up time: 15 minutes
Timer: 1-96 hrs. (increments of 1 min.)
Safety: Thermal fuse
Power consumption - 120V: 200W (0.87A)
Nominal operating voltage: 120 or 230V (50/60Hz)
Weight: 2.8kg
Product Documents:
Product Flyer
