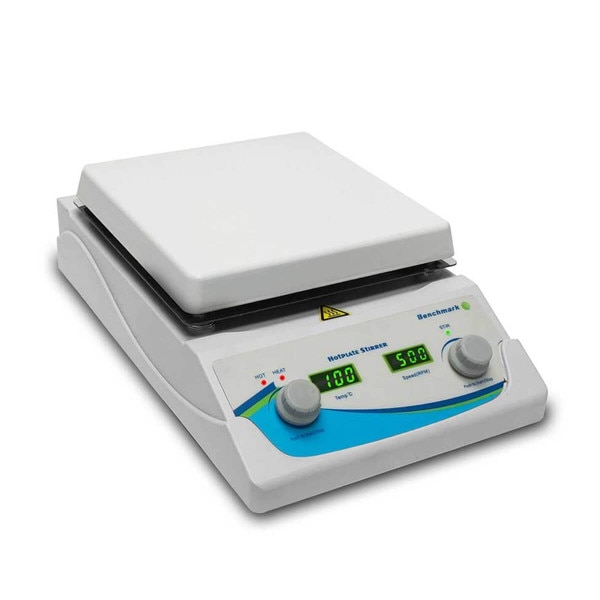

Digital Hotplate And Stirrer
Details
The digital hotplate and stirrer provides a reliable performance and safe operation for everyday laboratory use. Our space efficient 7 x 7 inch hotplate/stirrer series features a durable, chemical resistant white ceramic top plate and advanced microprocessor controls. The constant monitoring system provides precise control of temperature with rapid heating and faster boiling times. In addition, the powerful motor drive system ensures efficient mixing in larger and more viscous samples.
Temperature and mixing speed can be viewed on the large digital display and a safety LED illuminates when the top plate temperature exceeds 50°C. An external temperature probe can also be used for applications that require precise control of sample temperature. The probe provides direct feedback to the microprocessor with constant monitoring and adjustments for maintaining the selected temperature in the sample within +/- 1°C. All models are compatible with borosilicate glass beakers and other vessels with up to 5 L maximum stirring volume.
Features:
- Large, ceramic work surface, 7 x 7 in
- Safety LED indicates hot surface
- 5L stir capacity
- Control actual sample temperature (with optional probe)
Specifications:
Temp. Range: Ambient +5 to 400ºC
Stir capacity: 5 Liter
Speed Range: 100 to 1,500 rpm
Platform Dimensions: 7 x 7 in (17.8 x 17.8 cm)
Operational Temperature range: +4º to +65ºC
Dimensions: 7.5 x 11.5 x 4 in (18 x 27.9 x 10.1 cm)
Weight: 6.4 lbs (2.9kg)
Electrical: 120V, 50/60Hz, Max. 850W
Warranty: 2 Years
Product Documents:
Product Flyer
Temperature and mixing speed can be viewed on the large digital display and a safety LED illuminates when the top plate temperature exceeds 50°C. An external temperature probe can also be used for applications that require precise control of sample temperature. The probe provides direct feedback to the microprocessor with constant monitoring and adjustments for maintaining the selected temperature in the sample within +/- 1°C. All models are compatible with borosilicate glass beakers and other vessels with up to 5 L maximum stirring volume.
Features:
- Large, ceramic work surface, 7 x 7 in
- Safety LED indicates hot surface
- 5L stir capacity
- Control actual sample temperature (with optional probe)
Specifications:
Temp. Range: Ambient +5 to 400ºC
Stir capacity: 5 Liter
Speed Range: 100 to 1,500 rpm
Platform Dimensions: 7 x 7 in (17.8 x 17.8 cm)
Operational Temperature range: +4º to +65ºC
Dimensions: 7.5 x 11.5 x 4 in (18 x 27.9 x 10.1 cm)
Weight: 6.4 lbs (2.9kg)
Electrical: 120V, 50/60Hz, Max. 850W
Warranty: 2 Years
Product Documents:
Product Flyer
