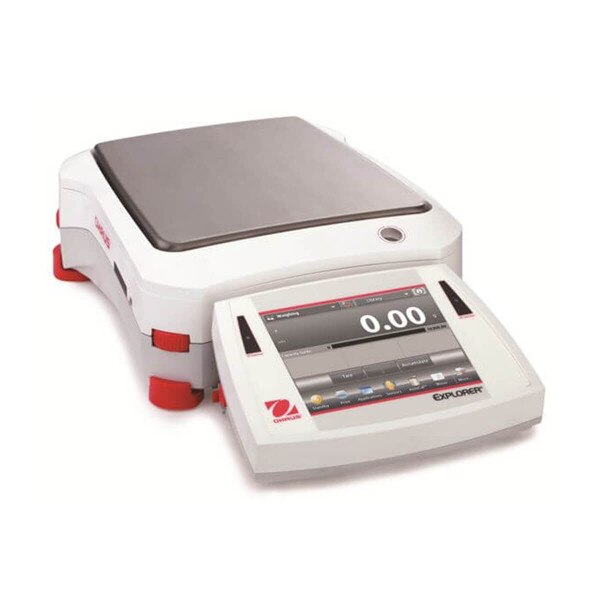

Explorer® Precision Electronic Balance, 4200g capacity, 0.01g readability
Details
The Ohaus Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.
Applications: Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics

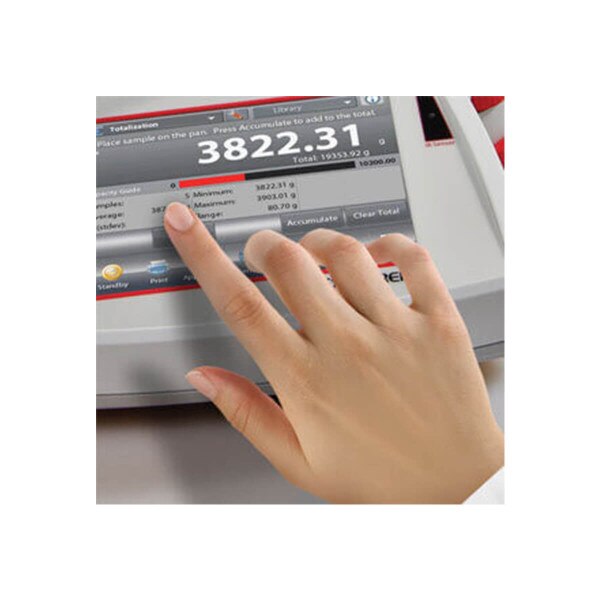

Display: 5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation: AC adapter (included)
Communication: RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction: Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door (1mg models), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover
Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages
Specifications:
Maximum Capacity: 4,200 g
Readability: 0.01 g
Pan Size: 7.5 in x 8 in (190 mm x 200 mm)
Internal Calibration: AutoCal™ - Automatic
Draft shield: Not Applicable

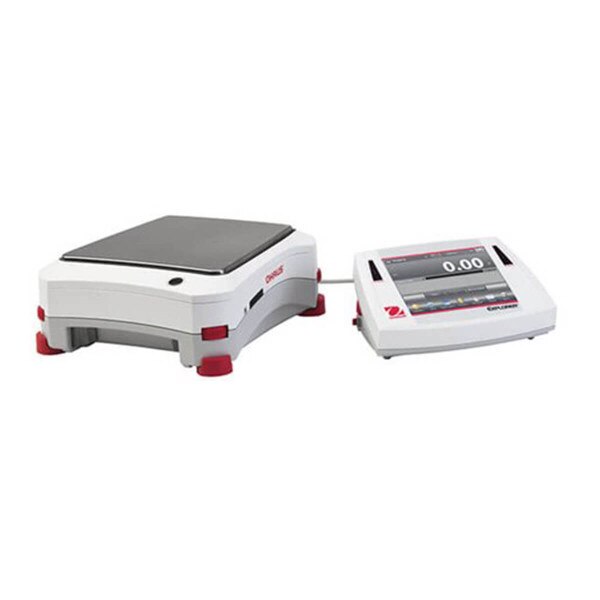

Auxiliary Display Model: Available as an Accessory
Battery Life: Not Applicable
Communication: RS232 (Included); USB (Included); Ethernet (Available as an Accessory)
Dimensions (H x L x W): 3.9 x 15.5 x 9.1 in (98 x 393 x 230 mm)
Display: Full-color 5.7 in VGA, touch screen
In-Use cover: Included
Legal for Trade: Not Applicable
Linearity ± : 0.02 g
Minimum Weight (USP, 0.1%, typical): 16 g
Net Weight: 9.5 lb (4.3 kg)
Pan Construction: Stainless Steel
Power: AC Adapter (Included)
Repeatability (typical): 0.01 g
Stabilization Time: 1 s
Tare Range: To capacity by subtraction
Units of Measurement: Baht; Carat; Custom; Grain; Gram; Hong Kong Tael; Kilogram; Mesghal; Milligram; Momme; Newton; Ounce; Ounce Troy; Pennyweight; Pound; Singapore Tael; Taiwan Tael; Tical; Tola
Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
Product Documents:
QuickStart Guide
Product Datasheet
Service Manual
Instruction Manual
