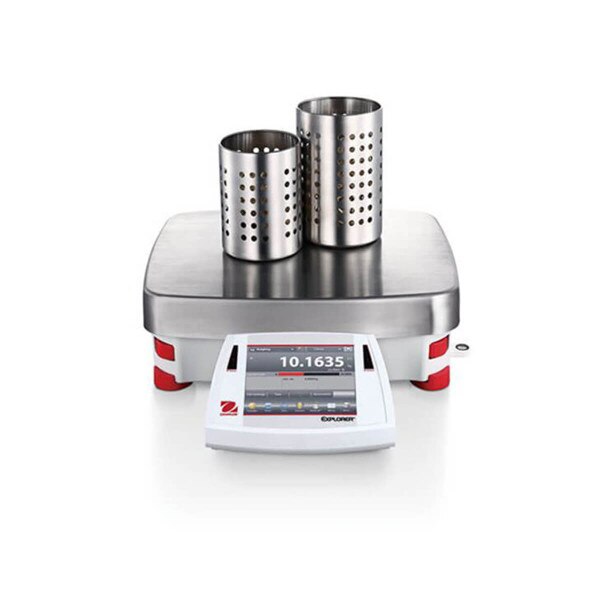

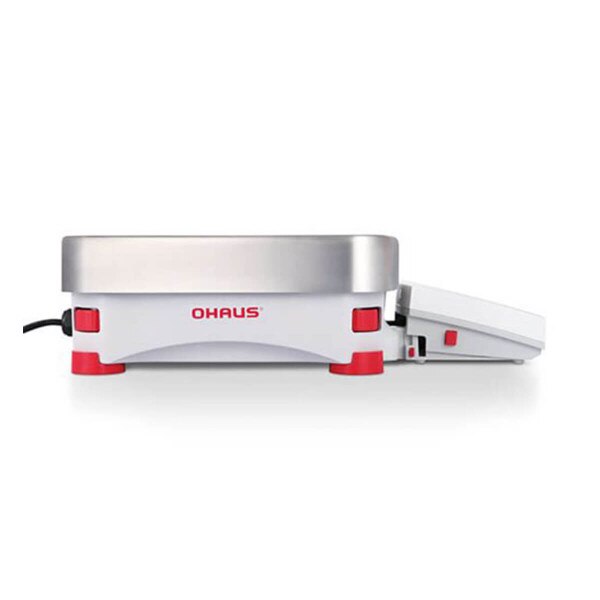

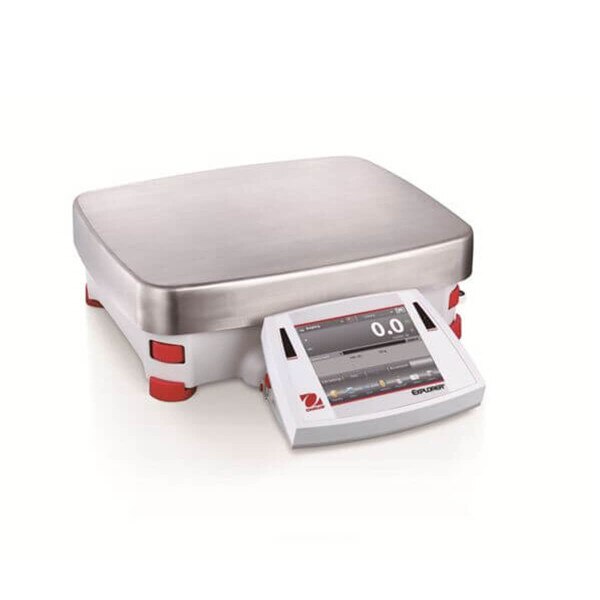

Explorer® Precision High Capacity Electronic Balance, 24,000g capacity
Details
The Ohaus Explorer High Capacity balances provide unmatched functionality in a line of high-performance, high-capacity balances unlike any other on the market! This smart and intuitive balance simplifies even the most complex high-capacity laboratory measurements.
Applications: Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics
Display: 5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation: AC Adapter (included) or rechargeable battery (accessory sold separately)
Communication: RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction: Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan
Specifications:
Maximum Capacity: 24,000 g
Readability: 0.1 g
Pan Size: 14.8 in x 12.2 in (377 mm x 311 mm)
Internal Calibration: AutoCal™ - Automatic
Draft shield: Not Applicable
Auxiliary Display Model: Available as an Accessory
Battery Life: 10 Hours with Rechargeable Battery
Communication: Ethernet (Available as an Accessory); RS232 (Included); USB (Included)
Dimensions (H x L x W): 4.7 x 17.44 x 14.9 in (120 x 443 x 377 mm)
Display: Full-color 5.7 in VGA, touch screen
In-Use cover: Included
Legal for Trade: Not Applicable
Linearity ± : 0.2 g
Minimum Weight (USP, 0.1%, typical): 210 g
Net Weight: 22 lb (10 kg)
Pan Construction: Stainless Steel
Power: AC Power (Included); Rechargeable Battery (Not Included)
Repeatability (typical): 0.1 g
Stabilization Time: 1 s
Tare Range: To capacity by subtraction
Units of Measurement: Gram; Milligram; Kilogram; Carat; Ounce; Ounce Troy; Pound; Pennyweight; Grain; Newton; Momme; Mesghal; Hong Kong Tael; Singapore Tael; Taiwan Tael; Tical; Tola; Baht; Custom
Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
Product Documents:
Product Datasheet
Service Manual
Instruction Manual
Applications: Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, SQC, Statistics
Display: 5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation: AC Adapter (included) or rechargeable battery (accessory sold separately)
Communication: RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction: Modular design, IP54 metal base, Die-cast top housing, stainless steel pan, up-front level indicator, integral weigh below hook, calibration lock, two touchless sensors, full housing in-use cover
Design Features: Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating lan
Specifications:
Maximum Capacity: 24,000 g
Readability: 0.1 g
Pan Size: 14.8 in x 12.2 in (377 mm x 311 mm)
Internal Calibration: AutoCal™ - Automatic
Draft shield: Not Applicable
Auxiliary Display Model: Available as an Accessory
Battery Life: 10 Hours with Rechargeable Battery
Communication: Ethernet (Available as an Accessory); RS232 (Included); USB (Included)
Dimensions (H x L x W): 4.7 x 17.44 x 14.9 in (120 x 443 x 377 mm)
Display: Full-color 5.7 in VGA, touch screen
In-Use cover: Included
Legal for Trade: Not Applicable
Linearity ± : 0.2 g
Minimum Weight (USP, 0.1%, typical): 210 g
Net Weight: 22 lb (10 kg)
Pan Construction: Stainless Steel
Power: AC Power (Included); Rechargeable Battery (Not Included)
Repeatability (typical): 0.1 g
Stabilization Time: 1 s
Tare Range: To capacity by subtraction
Units of Measurement: Gram; Milligram; Kilogram; Carat; Ounce; Ounce Troy; Pound; Pennyweight; Grain; Newton; Momme; Mesghal; Hong Kong Tael; Singapore Tael; Taiwan Tael; Tical; Tola; Baht; Custom
Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
Product Documents:
Product Datasheet
Service Manual
Instruction Manual
