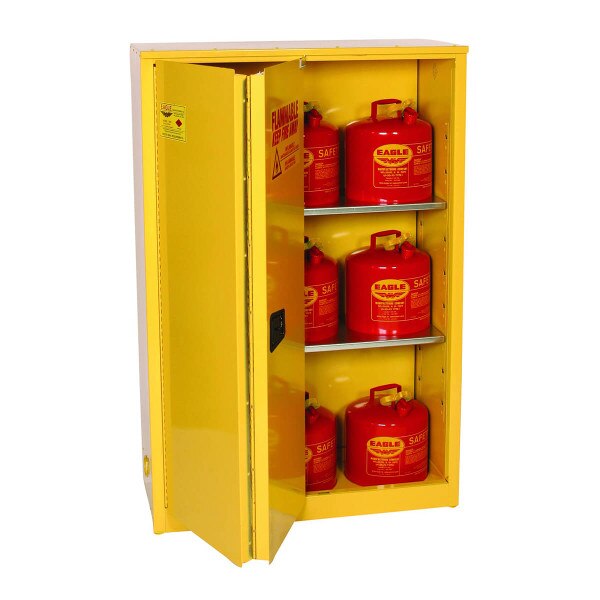

Flammable Safety Cabinet, 45 Gal, Sliding Door

SKU ES86301
$2,535.00
(0) No Reviews yet

Details

The 45 Gallon, sliding self-close, Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Features:
- Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
- Constructed of 18-gauge steel
- Lead-free, high-gloss, baked-on powder finish
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- 2 in (5.1 cm) raised leakproof sill
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Two 2 in (5.1 cm) internal vents with fire baffle and cap
- Flush mounted door handle with key lock
- Three-point stainless steel bullet latching system
- 3 in (7.6 cm) centers for shelf brackets
- Self-latching doors
- Door closings: Self-Closing (90° opening)
- Concealed self-close mechanism provides obstruction-free access to top shelf space
- Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

Specifications:
Color: Yellow
Material: 18-Gauge Steel
FM Approval: Yes
OSHA compliance: Yes
Complies with NFPA Code 30: Yes
Door Style: Bi-Fold
Exterior Dimensions (W x D x H): 43 x 18 x 65 in (109.2 x  45.7 x 165.1 cm)
Interior Dimensions (W x D x H): 39.5 x 14.56 x 60.5 in (100.3 x 37 x 153.7 cm)
Numbers of Doors: 2
Number of Shelves: 2
Uniform Fire Code: Yes
Lock: Yes
Gallon Capacity: 45
Liter Capacity: 170.3
Shelf Depth: 14 in (35.6 cm)
Weight: 305 lbs (138.3 kgs)
Adjustable Shelf: Yes
