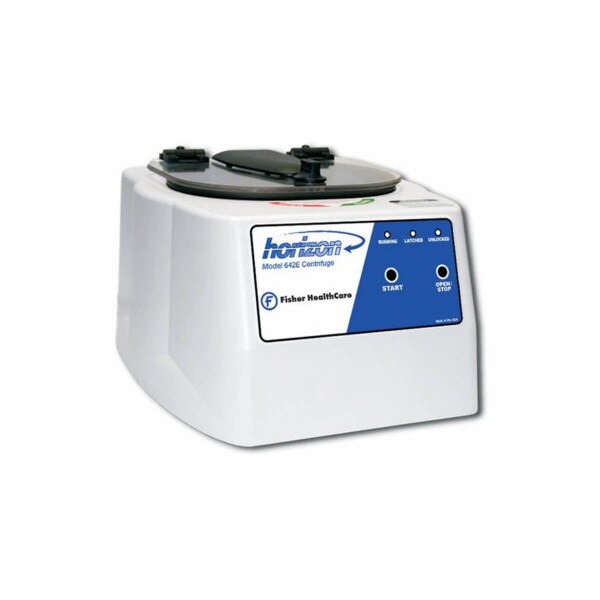

Horizon Mini E Centrifuge (Model 642E)

(0) No Reviews yet


The Horizon Mini E Centrifuge (Model 642E) is designed for doctor’s offices and small labs with a compact design that takes up less than one square foot of space, this centrifuge provides full horizontal separation of tubes. The unique horizontal rotor design allows for tubes up to 10mL to be inserted at a 45° angle, and the clear lid enables sample observation and optical calibration. In addition, samples are kept cool during processing, decreasing patient redraws. Great for reference labs, hospital outreach, and blood collection sites!

Tube adapters for 0.5 - 1mL (ESC642E-05) and 1.5 - 2mL (ESC642E-15) are available and sold separately.

- Horizontal six-place rotor centrifuge, with electronic timer
- For test tubes up to 10mL
- Push-button operation/safety lid-lock
- Brushless AC motor for smooth and quiet operation with no routine maintenance
- Small footprint — compact design uses approximately 1 sq. ft. of counter space

Drive System: AC
Dimensions (H x W x D): 12.5 x 8.5 x 11 in. (32 x 22 x 28cm)
Run Time: 1 to 30 min. ±1%
Capacity: 6 x 10mL (horizontal); 6 x 15mL (fixed)
Max. Speed: 3,380rpm
Electrical Requirements: 115V ±10 60Hz
Display: Color Graphic Display
Amperage: 4A
Controller Type: Push Button
Maximum Speed Range:
3,400 rpm
Net Weight: 18.5 lb. (8.4kg)
Accel/Decel Profiles: Acceleration, 15 sec.; deceleration, 60 sec.
Max. RCF: 1,999 x G
Refrigerated: No
Certifications/Compliance: UL/CSA compliant
Safety Features: Safety Lid Lock
Wattage: 165W
Maximum Force Range: 1000 to 1999 x G
Rotor Included: Yes
