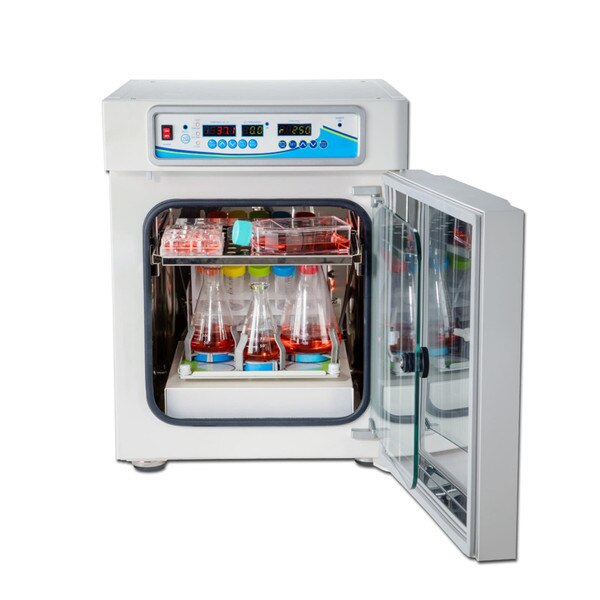

Incu-Shaker Mini CO2
Details
This popular, yet unique Incu-Shaker CO2 Mini combines the benefits of a precision CO2 incubation chamber with an integral orbital shaker, ideal for laboratories working with suspension cell culture. Its advanced built-in digital microprocessor controls the temperature and CO2 percentage based on your programed settings. Should those levels deviate, an alarm will alert you. In addition to the microprocessor, this system includes a dual-beam InfraRed CO2 sensor providing an accurate measurement and control over the CO2 density (percentage). A six-sided heated system minimizes air flow and reduces the concern for contamination. Additionally, a low speed internal fan creates a uniform airflow within the chamber; however, if you have concerns about sample contamination, it can be turned off. Another design feature is the heated and sealed glass door which prevents condensation and allows you to view samples without fully exposing the chamber, altering temperature and CO2% stability.
Its small footprint saves you bench space without comprising the versatility of operational use. The stainless steel internal chamber offers a stackable design with an adjustable pull out shelf, and a variety of platforms to suit your needs. A unique magnetic platform and variety of clamp systems are also available, but sold separately. The preferred universal magnetic platform offers users a quick and convenient method to change flask clamps of different sizes without using tools (ES59567).
When you purchase the Incu-Shaker CO2 Mini a standard platform featuring a non-slip, rubber coated surface is included and ideal for culture flasks, Petri dishes, and staining trays.
Features:
- Heat, Shake, CO2
- Six side heating provides excellent uniformity and recovery
- Integral MAGic Clamp shaker, ideal for suspension cell culture
- Precise monitoring over CO2 with dual beam IR sensor
Available Magnetic Erlenmeyer Flask Clamps:
50mL - ES59569-50ER (max. 20)
125mL - ES59569-125ER (max. 12)
250mL - ES59569-250ER (max. 8)
500mL - ES59569-500ER (max. 5)
1L - ES59569-1000ER (max. 4)
COMBO 125, 250, and 500mL – ES59567-C (adjustable)
Specifications:
Operating Temperature range: Ambient +5 to 60ºC (increments of 0.1ºC)
Temperature Uniformity: ± 0.5ºC
Temperature Accuracy: ± 0.1ºC
Shaking Speed Range: 30 – 300 rpm (increments of 1 rpm)
Shaking Orbit: 19mm (3/4 in)
CO2 Range: 0 to 20% (increment of 0.1%)
CO2 Accuracy: ± 0.1%
CO2 Sensor: Dual Beam IR
Platform Dimensions: 9.5 x 11.5 in (28 x 41 x 33 cm)
Chamber Dimensions: 13.2 x 10.25 x 15.4 in (33.5 x 26 x 39.2 cm)
Chamber Volume: 46L
Chamber Material: Stainless Steel (316)
Exterior Dimensions: 16.5 x 18.3 x 21.8 in (42 x 46.5 x 55.3 cm)
Weight: 90lbs. (40.1kg)
Electrical: 120 or 230V, 50-60Hz, 350W
Product Documents:
Product Flyer
Its small footprint saves you bench space without comprising the versatility of operational use. The stainless steel internal chamber offers a stackable design with an adjustable pull out shelf, and a variety of platforms to suit your needs. A unique magnetic platform and variety of clamp systems are also available, but sold separately. The preferred universal magnetic platform offers users a quick and convenient method to change flask clamps of different sizes without using tools (ES59567).
When you purchase the Incu-Shaker CO2 Mini a standard platform featuring a non-slip, rubber coated surface is included and ideal for culture flasks, Petri dishes, and staining trays.
Features:
- Heat, Shake, CO2
- Six side heating provides excellent uniformity and recovery
- Integral MAGic Clamp shaker, ideal for suspension cell culture
- Precise monitoring over CO2 with dual beam IR sensor
Available Magnetic Erlenmeyer Flask Clamps:
50mL - ES59569-50ER (max. 20)
125mL - ES59569-125ER (max. 12)
250mL - ES59569-250ER (max. 8)
500mL - ES59569-500ER (max. 5)
1L - ES59569-1000ER (max. 4)
COMBO 125, 250, and 500mL – ES59567-C (adjustable)
Specifications:
Operating Temperature range: Ambient +5 to 60ºC (increments of 0.1ºC)
Temperature Uniformity: ± 0.5ºC
Temperature Accuracy: ± 0.1ºC
Shaking Speed Range: 30 – 300 rpm (increments of 1 rpm)
Shaking Orbit: 19mm (3/4 in)
CO2 Range: 0 to 20% (increment of 0.1%)
CO2 Accuracy: ± 0.1%
CO2 Sensor: Dual Beam IR
Platform Dimensions: 9.5 x 11.5 in (28 x 41 x 33 cm)
Chamber Dimensions: 13.2 x 10.25 x 15.4 in (33.5 x 26 x 39.2 cm)
Chamber Volume: 46L
Chamber Material: Stainless Steel (316)
Exterior Dimensions: 16.5 x 18.3 x 21.8 in (42 x 46.5 x 55.3 cm)
Weight: 90lbs. (40.1kg)
Electrical: 120 or 230V, 50-60Hz, 350W
Product Documents:
Product Flyer
