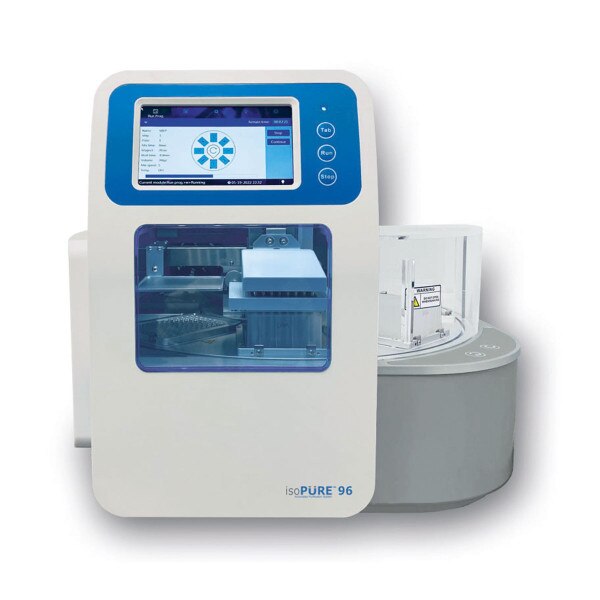

IsoPure™ 96, Automated Purification System
Details

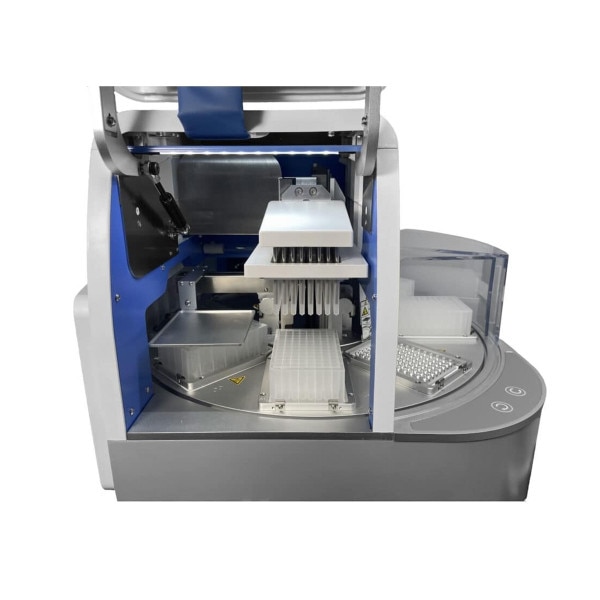

The IsoPure™ 96 is a high throughput, automated system that improves the efficiency and reproducibility of magnetic bead-based purification protocols. Capable of processing up to 96 samples at one time, the instrument is easy to set up and program. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and complexity of the program.
Features:
- Compatible with all popular magnetic bead kits

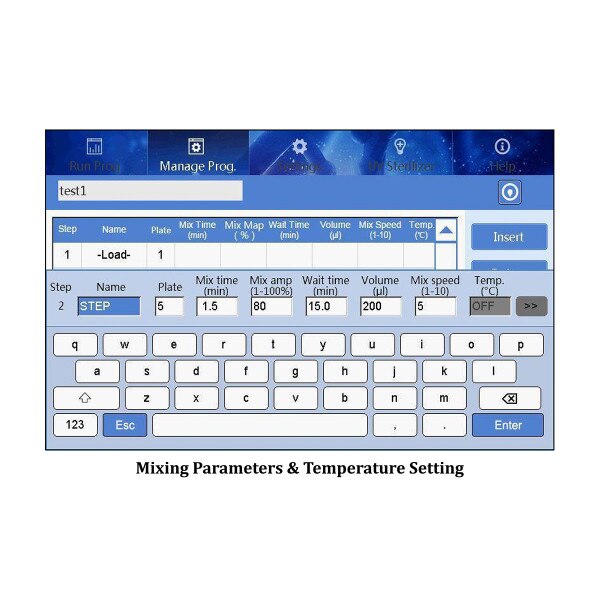

- Touch screen panel for on-board programming and operation
- Process up to 96 samples in deep-well plates
- 8-position carousel with 2 heating blocks
- Can handle sample volumes from 50µL to 1,000µL
Specifications:
Capacity/sample volume: 96 samples / 50µL to 1,000µL
Display: 7 inch color touch screen
Plate postion: 8 plate positions
Lysis temp. range: Ambient +5ºC to 120ºC
Elution temp. range: Ambient +5ºC to 120ºC
Mixing speed: Variable, 10 levels
Programming control: Touch screen / mouse or PC connection
Program memory: 100 programs
Communication ports: USB, LAN & PC
Magnetic bead recovery rate: >95%
Internal lighting: LED
Contamination control: UV sterilization, lamp included (3W, 253.7nm)
Dimensions: 21.6 x 24.4 x 18.9 in. (55 x 62 x 48 cm)
Weight: 54 kg / 119 lbs
Electrical input: Universal 120 to 240VAC
Warranty: 2 years
Product Documents:
Product Flyer
Features:
- Compatible with all popular magnetic bead kits
- Touch screen panel for on-board programming and operation
- Process up to 96 samples in deep-well plates
- 8-position carousel with 2 heating blocks
- Can handle sample volumes from 50µL to 1,000µL
Specifications:
Capacity/sample volume: 96 samples / 50µL to 1,000µL
Display: 7 inch color touch screen
Plate postion: 8 plate positions
Lysis temp. range: Ambient +5ºC to 120ºC
Elution temp. range: Ambient +5ºC to 120ºC
Mixing speed: Variable, 10 levels
Programming control: Touch screen / mouse or PC connection
Program memory: 100 programs
Communication ports: USB, LAN & PC
Magnetic bead recovery rate: >95%
Internal lighting: LED
Contamination control: UV sterilization, lamp included (3W, 253.7nm)
Dimensions: 21.6 x 24.4 x 18.9 in. (55 x 62 x 48 cm)
Weight: 54 kg / 119 lbs
Electrical input: Universal 120 to 240VAC
Warranty: 2 years
Product Documents:
Product Flyer
