IsoPure™ Mini, Automated Purification System
Details
Magnetic bead-based purification has become the preferred method for isolating DNA, RNA, and other target molecules from a variety of biological sample types. The quality and quantity of the extracted molecules can be significantly higher than other methods, such as spin columns, while the cost per sample can be lower.

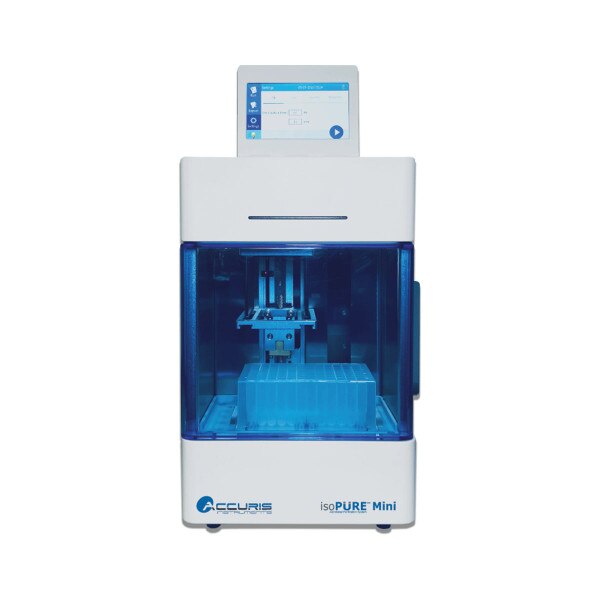

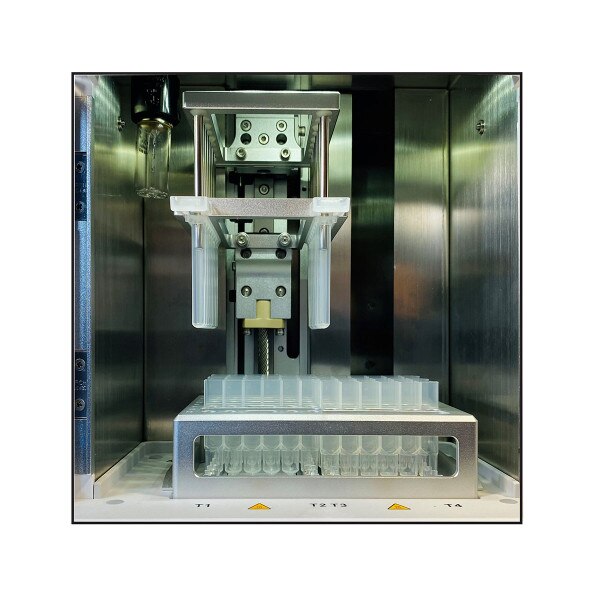

The IsoPure™ Mini is a compact, automated purification system that improves efficiency and reproducibility using the magnetic bead-based method. Capable of processing up to 16 samples at one time, the instrument is easy to set up, program, and operate. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically, saving valuable hands-on time. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and the complexity of the program.
Features:
- Fast, reliable and reproducible results
- Compatible with all popular magnetic bead kits
- Compact (8 x 10 inch footprint)
- Process up to 16 samples
- Programable with PC software or Android App
- Sample volume 50µl – 1000µl
Specifications:
Capacity/sample volume: 16 samples / 50µL to 1,000µL
Display: 4.3 inch color touch screen
Lysis temp. range: Ambient +5ºC to 120ºC
Elution temp. range: Ambient +5ºC to 120ºC
Mixing speed: Variable, 10 levels

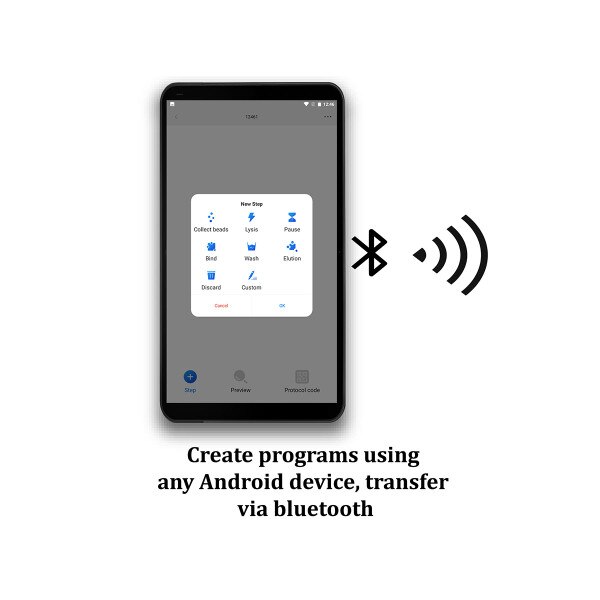

Programming control: Bluetooth-enabled android device (not included)
Program memory: 100 programs
Communication ports: USB for mouse, file storage & transfer
Magnetic bead recovery rate: >95%
Internal lighting: LED
Contamination control: UV lamp (3W, 253.7nm UVC wavelength)
Program transfer: Bluetooth, QR scanner, USB flash drive
Dimensions: 7.9 x 10.2 x 11.8 in. (20 x 26 x 30 cm)
Weight: 7 kg / 15.4 lbs
Electrical input: Universal 120 to 240VAC
Warranty: 2 years
Product Documents:
Product Flyer
The IsoPure™ Mini is a compact, automated purification system that improves efficiency and reproducibility using the magnetic bead-based method. Capable of processing up to 16 samples at one time, the instrument is easy to set up, program, and operate. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically, saving valuable hands-on time. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and the complexity of the program.
Features:
- Fast, reliable and reproducible results
- Compatible with all popular magnetic bead kits
- Compact (8 x 10 inch footprint)
- Process up to 16 samples
- Programable with PC software or Android App
- Sample volume 50µl – 1000µl
Specifications:
Capacity/sample volume: 16 samples / 50µL to 1,000µL
Display: 4.3 inch color touch screen
Lysis temp. range: Ambient +5ºC to 120ºC
Elution temp. range: Ambient +5ºC to 120ºC
Mixing speed: Variable, 10 levels
Programming control: Bluetooth-enabled android device (not included)
Program memory: 100 programs
Communication ports: USB for mouse, file storage & transfer
Magnetic bead recovery rate: >95%
Internal lighting: LED
Contamination control: UV lamp (3W, 253.7nm UVC wavelength)
Program transfer: Bluetooth, QR scanner, USB flash drive
Dimensions: 7.9 x 10.2 x 11.8 in. (20 x 26 x 30 cm)
Weight: 7 kg / 15.4 lbs
Electrical input: Universal 120 to 240VAC
Warranty: 2 years
Product Documents:
Product Flyer
