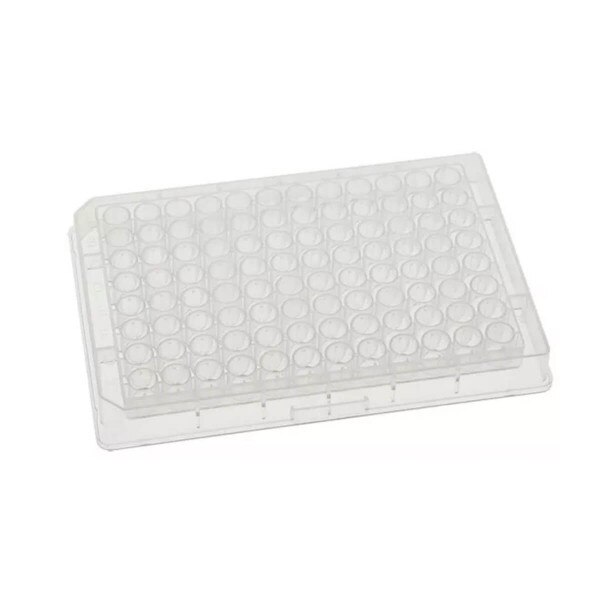

Plate, 96 Round Well V-Bottom 14.60mm Height, 250ul, Sterile
Details
Our pre-sterilized 96 round well V-bottom design minimizes reagent usage and provides the lowest residual volumes after pipetting (<0.1 l); designed for colorimetric assays and compound storage/ libraries, especially with automated systems. The microplates are durable and can withstand repeated freeze/thaw cycles down to -20ºC without adversely affecting dimensional integrity. The raised rims on each well help protect from cross contamination and make for enhanced sealing with adhesive films, silicone mats, or heat sealing films. They are manufactured of exceptionally clear and inert virgin polypropylene (no mold release agents or regrind). Plates are certified RNase/DNase, DNA, and Pyrogen free.
Features:
- Consistent automated handling – ultra-flat surfaces, sidewall gripper lugs, and rigidity
- Durable – withstands repeated freeze/thaw cycles down to -20C without adversely affecting dimensional integrity
- Raised rims on each well help protect from cross contamination and make for enhanced sealing with adhesive films, silicone mats, or heat sealing films
- Manufactured of exceptionally clear and inert virgin polypropylene (no mold release agents or regrind)
- Certified RNase, DNase, DNA, and Pyrogen Free

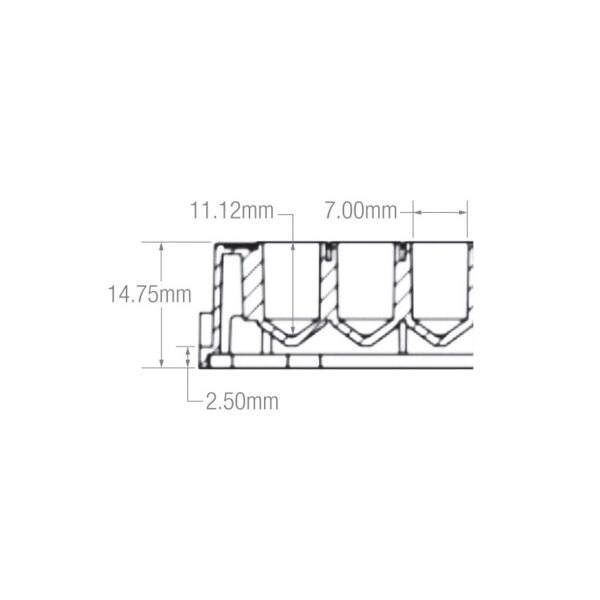

Specifications:
Number of Wells: 96
Well Shape Top: Round
Well Shape Bottom: Conical – V
Material: Polypropylene
Overall Height: 14.60mm
Well Depth: 10.90mm
Length: 127.00mm
Width: 85.00mm
Top Width: 81.10mm
Well Diameter Bottom: 6.58mm
Well Diameter Top: 6.96mm
Top Length: 122.90mm
Well Bottom To Deck: 2.85mm
Max Volume: 360µL
Working Volume: 250µL
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
Features:
- Consistent automated handling – ultra-flat surfaces, sidewall gripper lugs, and rigidity
- Durable – withstands repeated freeze/thaw cycles down to -20C without adversely affecting dimensional integrity
- Raised rims on each well help protect from cross contamination and make for enhanced sealing with adhesive films, silicone mats, or heat sealing films
- Manufactured of exceptionally clear and inert virgin polypropylene (no mold release agents or regrind)
- Certified RNase, DNase, DNA, and Pyrogen Free
Specifications:
Number of Wells: 96
Well Shape Top: Round
Well Shape Bottom: Conical – V
Material: Polypropylene
Overall Height: 14.60mm
Well Depth: 10.90mm
Length: 127.00mm
Width: 85.00mm
Top Width: 81.10mm
Well Diameter Bottom: 6.58mm
Well Diameter Top: 6.96mm
Top Length: 122.90mm
Well Bottom To Deck: 2.85mm
Max Volume: 360µL
Working Volume: 250µL
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
