Microplate Absorbance Reader
Details

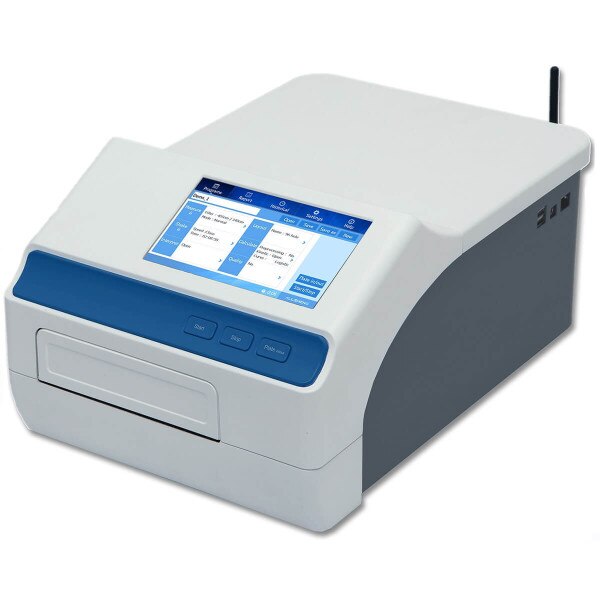

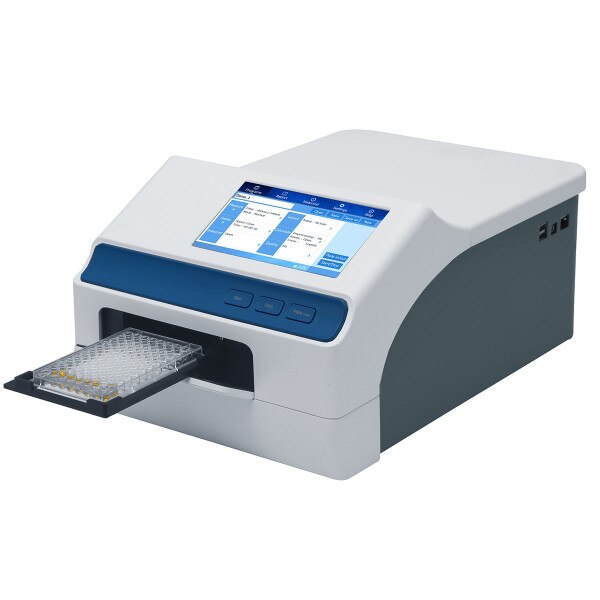

The SmartReader 96 comes complete with 4 popular filters: 405,450,492,630nm and twenty six additional filters are available separately to cover a full range from 340 to 750nm. The integrated filter wheel allows up to 8 filters to be loaded at once, and filters can be selected during programming. Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons. Kinetic calculations can be performed by setting multiple readings. The SmartReader 96 is a convenient stand alone reader, all software and the programing system is incorporated into the electronics. However, a convenient USB port on the side allows quick and easy saving of data files to a USB drive, and the universal .csv files can then be shared or transferred to a computer for storage or further processing. A data port can be used for connecting a computer or basic printer.
Features:
- Ideal for ELISA and protein assays
- Intuitive, 7 inch color touch screen control panel
- Filter based system with wavelength range from 340 to 750nm
- Operates as a stand alone system, or connects to a PC or printer
- Absorbance range: 0.0 to 4.0000 Abs
- 8 channel vertical optical path, with zero dispersion
- Integrated, multi-speed plate shaker
- Includes 405, 450, 492 and 530nm filters
Specifications:
Control and Display: 7 inch touch screen (800 x 480 pixels)
Light Source: Quartz-halogen lamp 6V/10W
Wavelength range: 340-750nm (405, 450, 492and 630 nm filters included)
Half-Bandwidth of filter: 3 ~ 9nm
Readout Range: 0 ~ 4.000 Abs
Linearity (405nm): 0 ~ 2.000 Abs <+1% 0~4.000 Abs <+2%
Precision: CV</= 0.2% (0-3) Abs CV</= 01.0% (3-4) Abs
Test Speed: < 6 sec. for 96 well plate
Incubator: No
Shaking: 3 modes: slow, medium, fast
User Interface: Integrated software, touch screen control
Storage: 200 programs, 100,000 test records
Ports: USB ports for PC, printer, mouse and flash drive
Dimensions: 11.6 x 17 x 8.75 in (295 x 440 x 225 mm)
Weight: 10 kg
Features:
- Ideal for ELISA and protein assays
- Intuitive, 7 inch color touch screen control panel
- Filter based system with wavelength range from 340 to 750nm
- Operates as a stand alone system, or connects to a PC or printer
- Absorbance range: 0.0 to 4.0000 Abs
- 8 channel vertical optical path, with zero dispersion
- Integrated, multi-speed plate shaker
- Includes 405, 450, 492 and 530nm filters
Specifications:
Control and Display: 7 inch touch screen (800 x 480 pixels)
Light Source: Quartz-halogen lamp 6V/10W
Wavelength range: 340-750nm (405, 450, 492and 630 nm filters included)
Half-Bandwidth of filter: 3 ~ 9nm
Readout Range: 0 ~ 4.000 Abs
Linearity (405nm): 0 ~ 2.000 Abs <+1% 0~4.000 Abs <+2%
Precision: CV</= 0.2% (0-3) Abs CV</= 01.0% (3-4) Abs
Test Speed: < 6 sec. for 96 well plate
Incubator: No
Shaking: 3 modes: slow, medium, fast
User Interface: Integrated software, touch screen control
Storage: 200 programs, 100,000 test records
Ports: USB ports for PC, printer, mouse and flash drive
Dimensions: 11.6 x 17 x 8.75 in (295 x 440 x 225 mm)
Weight: 10 kg
