Microplate Reader and Washer bundle

SKU ES59850-BND
$10,294.85
(0)No Reviews yet

Details

Microplate Reader and Washer bundle, includes SmartReader™ 96 Microplate Absorbance Reader, for 96 Well Plates and SmartWasher™ 96 Microplate Washer for 96 Well Plates.

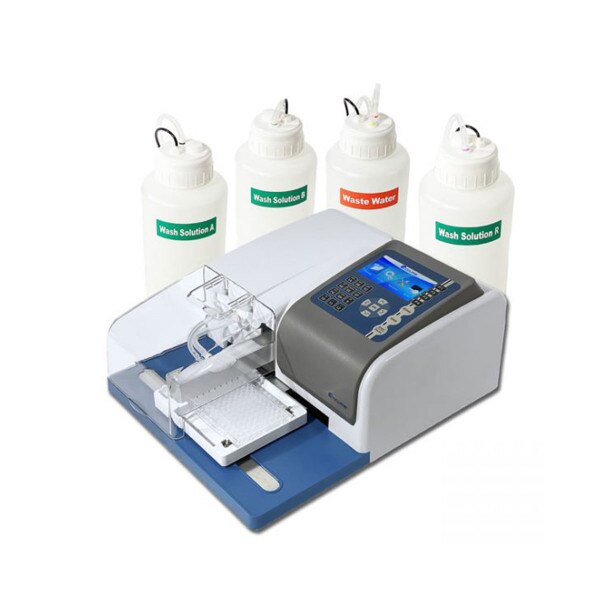

The SmartWasher 96 microplate washer can create proper needle precision, ease of rinsing, and transferring of wash protocols via flash drive. With up to 100 uploadable wash protocols, auto rinse functions to eliminate cross-contamination and liquid level sensors, the SmartWasher 96 can provide safe and functional rinsing practices.

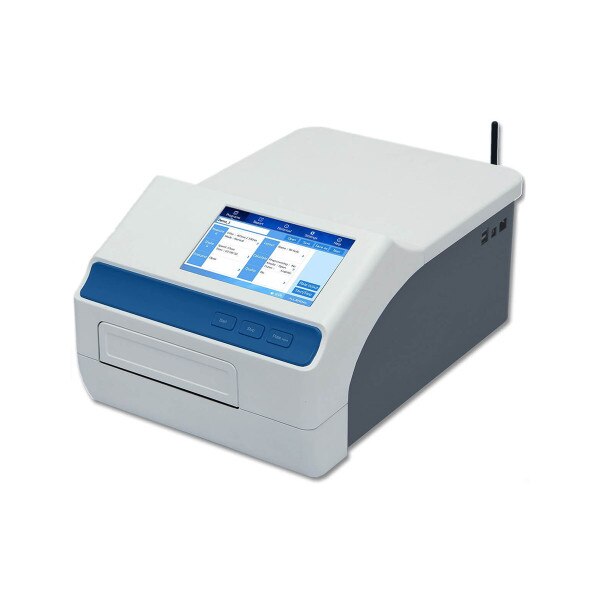

The SmartReader™ 96 bundle comes complete with 4 popular filters: 405,450,492,630nm and twenty six additional filters are available separately to cover a full range from 340 to 750nm. The integrated filter wheel allows up to 8 filters to be loaded at once, and filters can be selected during programming. Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons.  Kinetic calculations can be performed by setting multiple readings. The SmartReader™ 96 is a convenient stand alone reader, all software and the programing system is incorporated into the electronics. However, a convenient USB port on the side allows quick and easy saving of data files to a USB drive, and the universal .csv files can then be shared or transferred to a computer for storage or further processing. A data port can be used for connecting a computer or basic printer.

Features:
- Intuitive, 7 inch color touch screen control panel
- Filter based system with wavelength range from 340 to 750nm
- Operates as a stand alone system, with USB ash drive drive for data transfer
- Absorbance range: 0.0 to 4.0000 Abs
- 8 channel vertical optical path, with zero dispersion
- Integrated, multi-speed plate shaker
- Includes 405, 450, 492 and 530nm filters
- Precision needle position control
- Auto rinse to eliminate cross-contamination
- Liquid level sensors in bottles

Specifications:
Control and Display: 7 inch touch screen (800 x 480 pixels)
Light Source: Quartz-halogen lamp 6V/10W
Wavelength range: 340-750nm (405, 450, 492and 630 nm filters included)
Half-Bandwidth of filter: 3 ~ 9nm
Readout Range: 0 ~ 4.000 Abs
Linearity (405nm): 0 ~ 2.000 Abs <+1%    0~4.000 Abs <+2%
Precision: CVTest Speed: < 6 sec. for 96 well plate
Incubator: No
Shaking: 3 modes: slow, medium, fast
User Interface: Integrated software, touch screen control
Storage: 200 programs, 100,000 test records
Ports: USB ports for PC, printer, mouse and flash drive
Dimensions: 11.6 x 17 x 8.75 in (295 x 440 x 225 mm)
Weight: 10 kg
