Multi Block Thermal Cycler with 3 x 32 x 0.2ml blocks
Details
Designed for laboratories wanting flexibility in their applications, our Multi Block Thermal Cycler with 3 x 32 x 0.2ml blocks offer multiple, independent cycling blocks in a single unit. Offering extremely fast cycling profiles, large touch screen interfaces, self-adjusting heated lids, gradient capabilities, and an easy-to-use program wizard.

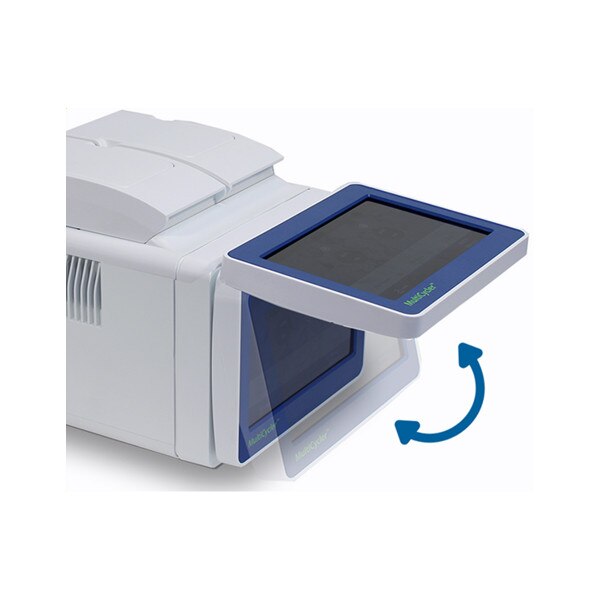

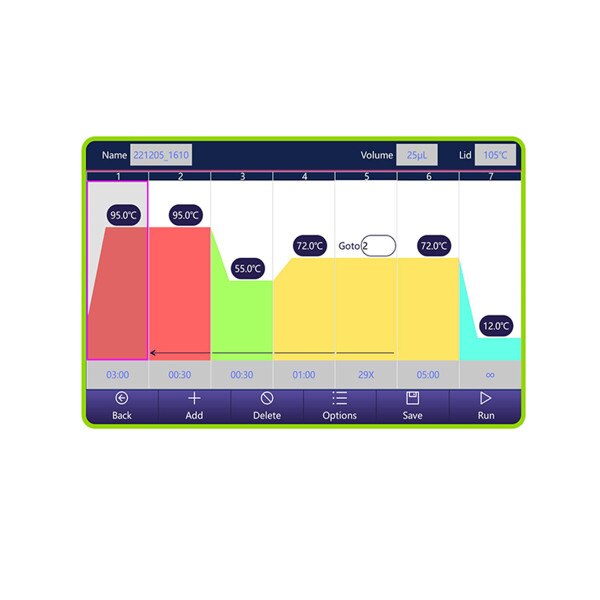

All programming features are accessed from the large, 10” full color touch screen. The screen can be angled towards the user when in use and then tucked away to save space. A program wizard guides users through the simple protocol set up process. Advanced programming features include gradient, adjustable ramp rates, and time increments and decrements. For multi-user labs, password protection prevents interference of an existing run. A USB provides for unlimited program storage and easy transfer of protocols between MultiCycler machines.
The auto-adjusting heated lid prevents condensation and evaporation of samples. Lid temperature can be programmed, and when the block temperature is below 35°C, the lid automatically shuts off. Peltier units allow for exceptionally fast heating and cooling of the blocks. Temperature change is precisely and accurately controlled within tight tolerances by a proprietary algorithm that simulates sample temperature, resulting in fast runs and reproducible results.
The wells are arranged in a 4×8 and 6×8 format, allowing for the use of PCR strip tubes in both models. Each block is independently controlled.
Features:
- Dual block format
- Independently controlled blocks
- Intuitive touch screen control with adjustable viewing angle
- Program wizard for quick and easy set up
- Gradient capabilities in each block
Specifications:
Capacity: 3 x 32 well blocks
Heating and Cooling: Peltier elements
Display: 10" full color touch screen with adjustable angle
Block temperature range: 4°C to 99.9°C
Maximum Heating Rate: 7.5°C/sec
Maximum Cooling Rate: 6°C/sec
Ramp Rate Adjustment: 0.1°C to 5.0°C
Temperature Uniformity: ≤±0.2°C (at 90°C)
Temperature Accuracy: ≤±0.2°C (at 90°C)
Gradient Functionality: Yes, 8 different temps/block
Gradient Accuracy: ±0.1°C
Gradient Range: 30°C to 99.9°C
Heated Lid: Yes, 30°C to 112°C
Power: 100-240V, 50-60Hz
Dimensions (L x W x H): 14.75 x10.5 x 10.9 in (37.5 x 27 x 27.7 cm)
Weight: 28.7 lbs (13 kg)
Warranty: 2 years
All programming features are accessed from the large, 10” full color touch screen. The screen can be angled towards the user when in use and then tucked away to save space. A program wizard guides users through the simple protocol set up process. Advanced programming features include gradient, adjustable ramp rates, and time increments and decrements. For multi-user labs, password protection prevents interference of an existing run. A USB provides for unlimited program storage and easy transfer of protocols between MultiCycler machines.
The auto-adjusting heated lid prevents condensation and evaporation of samples. Lid temperature can be programmed, and when the block temperature is below 35°C, the lid automatically shuts off. Peltier units allow for exceptionally fast heating and cooling of the blocks. Temperature change is precisely and accurately controlled within tight tolerances by a proprietary algorithm that simulates sample temperature, resulting in fast runs and reproducible results.
The wells are arranged in a 4×8 and 6×8 format, allowing for the use of PCR strip tubes in both models. Each block is independently controlled.
Features:
- Dual block format
- Independently controlled blocks
- Intuitive touch screen control with adjustable viewing angle
- Program wizard for quick and easy set up
- Gradient capabilities in each block
Specifications:
Capacity: 3 x 32 well blocks
Heating and Cooling: Peltier elements
Display: 10" full color touch screen with adjustable angle
Block temperature range: 4°C to 99.9°C
Maximum Heating Rate: 7.5°C/sec
Maximum Cooling Rate: 6°C/sec
Ramp Rate Adjustment: 0.1°C to 5.0°C
Temperature Uniformity: ≤±0.2°C (at 90°C)
Temperature Accuracy: ≤±0.2°C (at 90°C)
Gradient Functionality: Yes, 8 different temps/block
Gradient Accuracy: ±0.1°C
Gradient Range: 30°C to 99.9°C
Heated Lid: Yes, 30°C to 112°C
Power: 100-240V, 50-60Hz
Dimensions (L x W x H): 14.75 x10.5 x 10.9 in (37.5 x 27 x 27.7 cm)
Weight: 28.7 lbs (13 kg)
Warranty: 2 years
