MyGel InstaView™ Gel Tank with Blue LED Illuminator
Details

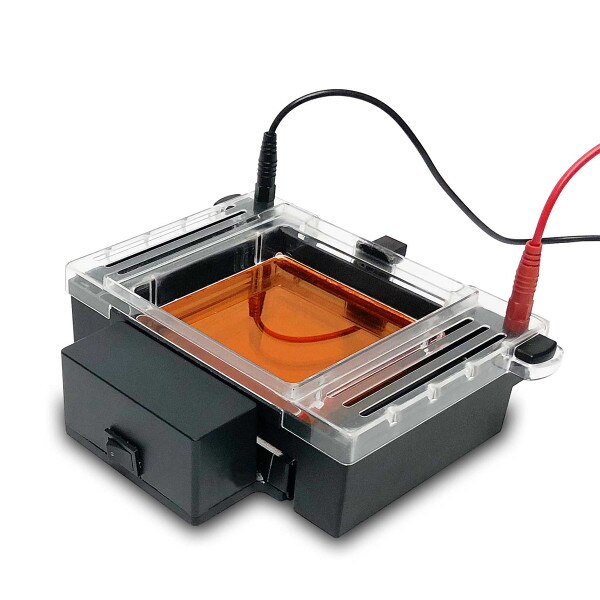

The myGel InstaView comes complete with everything needed to cast, run and view mini electrophoresis gels, including an integrated power supply. One large (10.5 x 10 cm) or small (10.5 x 6 cm) gel is accommodated by the gel tank. Gels are easily poured using the supplied trays, combs and leak-proof casting stand.
The power supply connects directly into the gel tank, no more leads to contend with. The connection is guaranteed to be right, every time. Output voltage can be adjusted to 35V, 50V or 100V and run time can be set for up to 99 minutes. A magnetic interlock between the gel tank and the lid prevents current from running through the system when the lid is not properly in place.

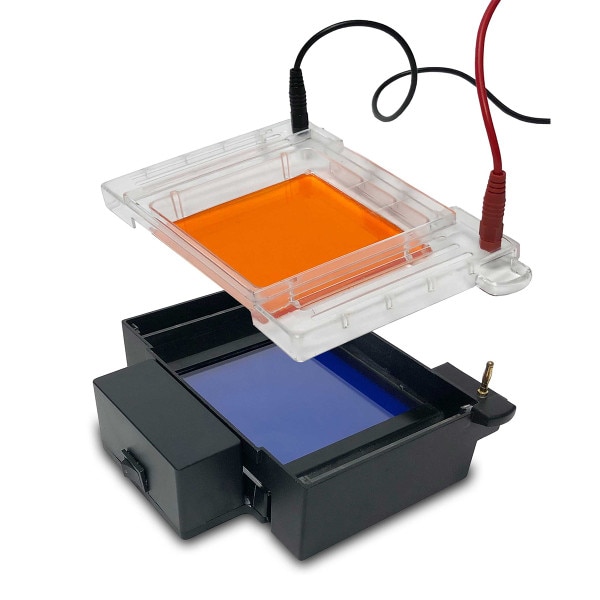

Once the myGel InstaView System is set up, simply slide the mini LED transilluminator into place under the tank and at any time turn it on to view the run in real time. An array of blue LEDs emit bright blue light at a wavelength of 465nm for optimal excitation for common green fluorescent stains suck as SmartGlow™, SYBYR™ Green and Gel Green, without damaging DNA. An orange filter is incorporated into the lid for visualizing DNA bands without any additional equipment or special glasses.
When it is time to document results, place the included gel imaging enclosure over top of the myGel InstaView, and use the camera app on any smart phone to capture high resolution images without removing gel from the tank. Images are easily shared via email or text message or printed.
Features:
- Comes complete with everything needed to cast, run and view mini electrophoresis gels

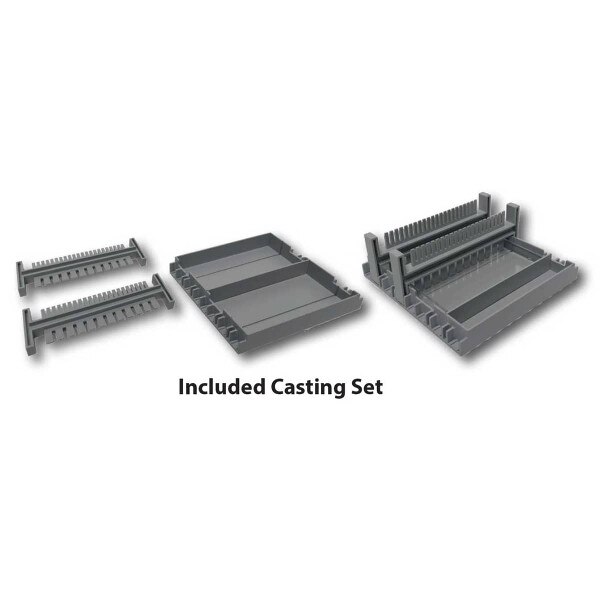

- Gels are easily poured using the supplied trays, combs and leak-proof casting stand
- Power supply connects directly into the gel tank, no more leads to contend with
- Any smart phone can capture high resolution images without removing gel from the tank
Specifications:
Output voltage: 35V, 50V or 100V
Timer: 0-99 mins, continuous
Safety: Magnetic switch
Buffer Volume: 230 mL
Gel Capacity: 1-10.5 x 10cm or 1-10.5 x 6cm gel, 0.5 cm thick
Transilluminator: Blue LED, 465nm
Dimensions (W x D x H) w/enclosure: 10 x 8.25 x 5 in
Weight: 2.3 lbs
The power supply connects directly into the gel tank, no more leads to contend with. The connection is guaranteed to be right, every time. Output voltage can be adjusted to 35V, 50V or 100V and run time can be set for up to 99 minutes. A magnetic interlock between the gel tank and the lid prevents current from running through the system when the lid is not properly in place.
Once the myGel InstaView System is set up, simply slide the mini LED transilluminator into place under the tank and at any time turn it on to view the run in real time. An array of blue LEDs emit bright blue light at a wavelength of 465nm for optimal excitation for common green fluorescent stains suck as SmartGlow™, SYBYR™ Green and Gel Green, without damaging DNA. An orange filter is incorporated into the lid for visualizing DNA bands without any additional equipment or special glasses.
When it is time to document results, place the included gel imaging enclosure over top of the myGel InstaView, and use the camera app on any smart phone to capture high resolution images without removing gel from the tank. Images are easily shared via email or text message or printed.
Features:
- Comes complete with everything needed to cast, run and view mini electrophoresis gels
- Gels are easily poured using the supplied trays, combs and leak-proof casting stand
- Power supply connects directly into the gel tank, no more leads to contend with
- Any smart phone can capture high resolution images without removing gel from the tank
Specifications:
Output voltage: 35V, 50V or 100V
Timer: 0-99 mins, continuous
Safety: Magnetic switch
Buffer Volume: 230 mL
Gel Capacity: 1-10.5 x 10cm or 1-10.5 x 6cm gel, 0.5 cm thick
Transilluminator: Blue LED, 465nm
Dimensions (W x D x H) w/enclosure: 10 x 8.25 x 5 in
Weight: 2.3 lbs
