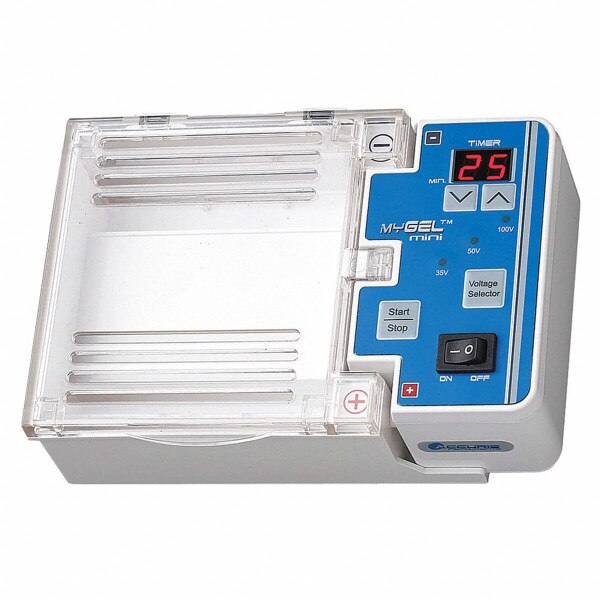

The MyGel™ Mini Electrophoresis system includes all of the equipment that you need to get up and running: gel tank, power supply and two casting sets. Ideal for personal use, small laboratories or the classroom, this gel box/power supply combination is compact and easy to use.

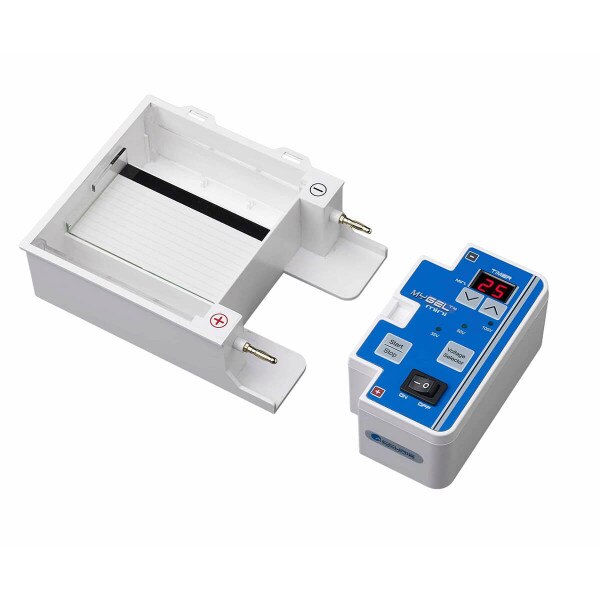

The myGel mini gel box attaches directly to the power supply for a secure connection every time. Selectable parameters include 3 preset voltages – 35V, 50V or 100V – and a 99 minute timer. All are set using the membrane keypad.
The safety lid is vented to help dissipate heat generated during electrophoresis, and features a viewing area above the gel. Current will only run through the system when the lid is properly in place on top of the gel box.

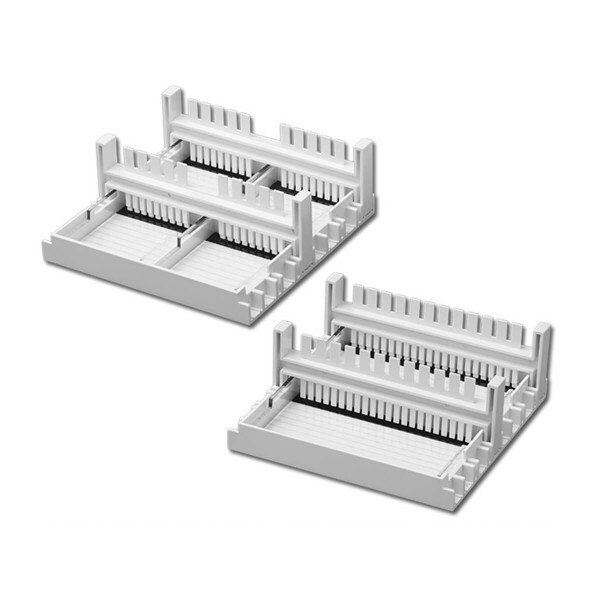

Trays and casting stands for both 10.5 x 6cm and 5 x 6cm gels are included with the myGel Mini system, as are double-sided combs. The smaller tooth combs are compatible with multichannel pipettes. Casting is quick and easy – just place the tray in the casting stand and pour. The trays feature a dark contrast strip to help visualize wells while loading and lines that fluoresce under UV and blue light to track progress of the run.
- Includes the gel tank, power supply and two casting sets
- Ideal for personal use, small laboratories or the classroom
- 3 preset voltages
- Safety lid is vented to help dissipate heat
- Casting is quick and easy; just place the tray in the casting stand and pour
Output voltage: 35V, 50V, 100V
Timer: 0-99 minutes or continuous
Safety: Magnetic and mechanical lid interlock
Maximum buffer volume: 230 mL
Gel capacity: 10.5 x 6 cm (1) or 5 x 6 cm (2)
Dimensions (L x W x H): 7.5 x 5.1 x 2.1 in
Weight: 1 lb / 0.45 kg
Electrical: 115V, 60 Hz or 230V, 50 Hz
