MyVolt Touch Power Supply, 115V
Details

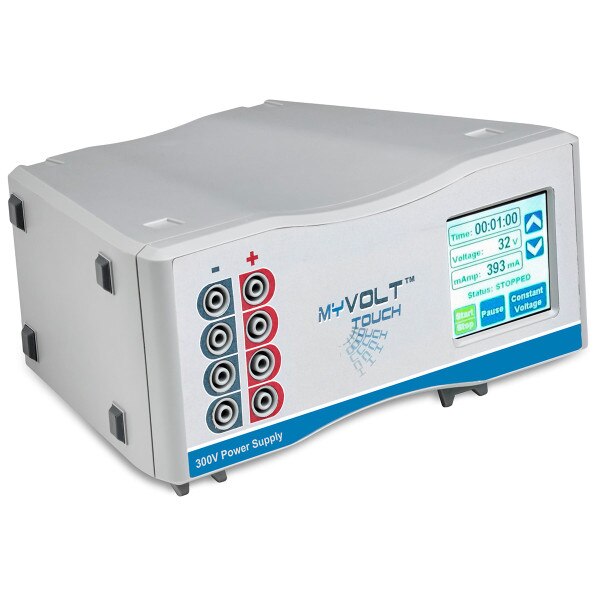

The myVolt™Touch is a work horse electrophoresis power supply, ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select “Constant Current” or “Constant Voltage” during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with rotating display allows the myVolt Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space.
The myVolt Touch features a logical user interface. Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the “up” and “down” arrows to adjust the value, and then touch “Start”. All parameters are always displayed, with no need to toggle between Time, Voltage or Amperage. In addition the run status is always displayed.
Features:
- Ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications
- Color touch screen allows quick setting and monitoring of all run conditions

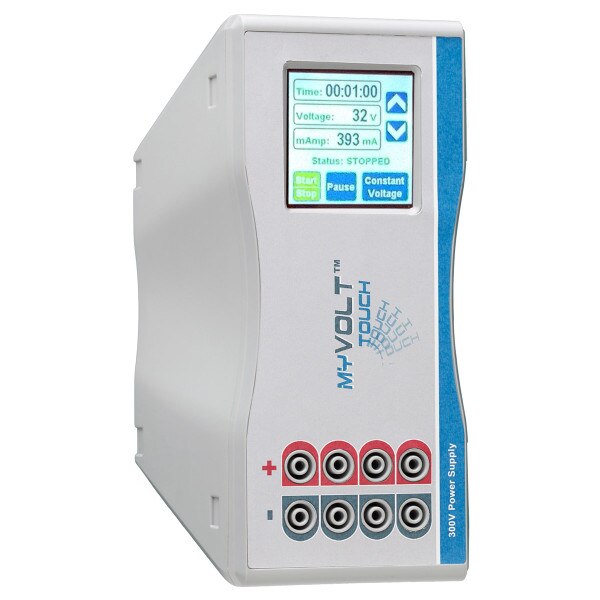

- Dual orientation design
- Features a logical user interface
- Run status is always displayed
Specifications:
Output Setting: Constant Voltage or Constant Current
Voltage Output: 10-300V (5V increments)
Current Output: 5-650mA (1mA increments)
Maximum Wattage: 100W
Output Terminals: 4 pairs
Timer: 1 min. - 20 hours
Safety: No load, load change, overload detection
Display: 2 x 2 in. color touchscreen
Dimensions: 8.5 x 6.3 x 4.0 in (21.5 x 15.5 x 9.75 cm)
Weight: 2 lbs/0.9 kg
Electrical: 100 to 230V, 50/60 Hz
The myVolt Touch features a logical user interface. Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the “up” and “down” arrows to adjust the value, and then touch “Start”. All parameters are always displayed, with no need to toggle between Time, Voltage or Amperage. In addition the run status is always displayed.
Features:
- Ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications
- Color touch screen allows quick setting and monitoring of all run conditions
- Dual orientation design
- Features a logical user interface
- Run status is always displayed
Specifications:
Output Setting: Constant Voltage or Constant Current
Voltage Output: 10-300V (5V increments)
Current Output: 5-650mA (1mA increments)
Maximum Wattage: 100W
Output Terminals: 4 pairs
Timer: 1 min. - 20 hours
Safety: No load, load change, overload detection
Display: 2 x 2 in. color touchscreen
Dimensions: 8.5 x 6.3 x 4.0 in (21.5 x 15.5 x 9.75 cm)
Weight: 2 lbs/0.9 kg
Electrical: 100 to 230V, 50/60 Hz
