Orbital & Reciprocating Water Bath, 115V

SKU ES4529
(0) No Reviews yet

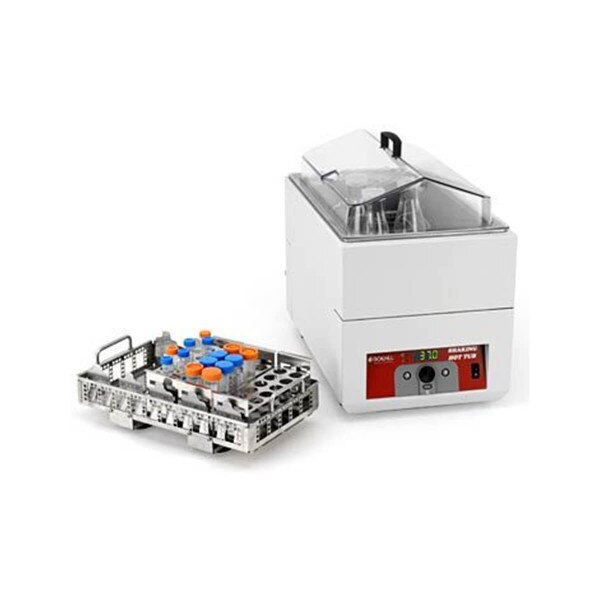

The Orbital and Reciprocating Water Bath is designed for a wide range of temperature-controlled shaking protocols. It features a high quality, robust design with a unique magnetically coupled shaking mechanism for maximum reliability, consistency and quiet operation.

This unique shaking mechanism allows for both orbital and linear shaking in one product by simply changing the orientation of the shaking tray from one mode to the other.

- Switch from orbital to reciprocating mode by simply reversing the tray
- 3 Point factory programmed temperature calibration throughout temperature range
- PID Controller for easy temperature selection, rapid heat up and excellent stability + 0.2°C
- Programmable timer up to 99 hrs, 59 min – Bath stops heating when timed operation is completed
- Adjustable speed control from 20-200 RPM (in 1 RPM increments)
- Convenient drain port with quick disconnect allows for easy cleaning of the bath

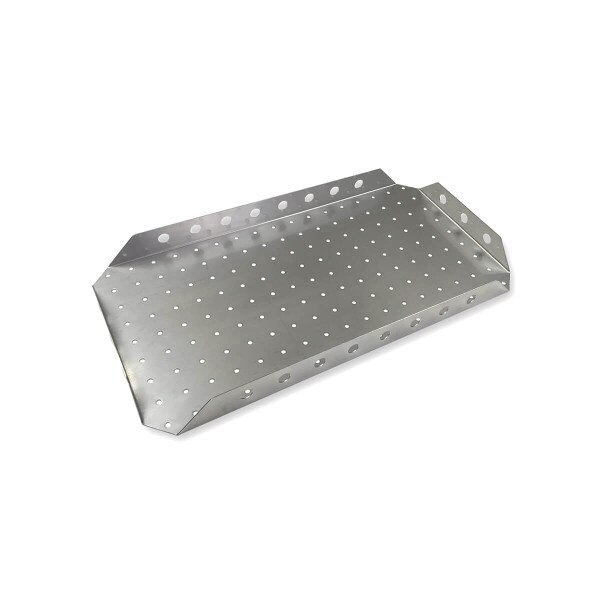

- Choose from a variety of trays to maximize your versatility

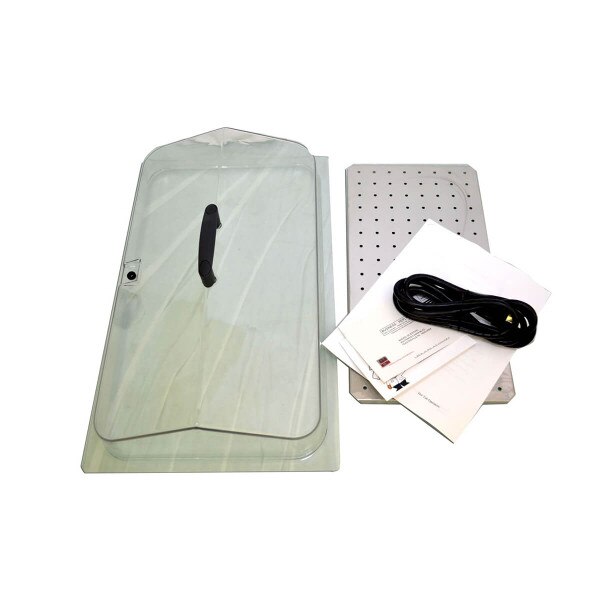

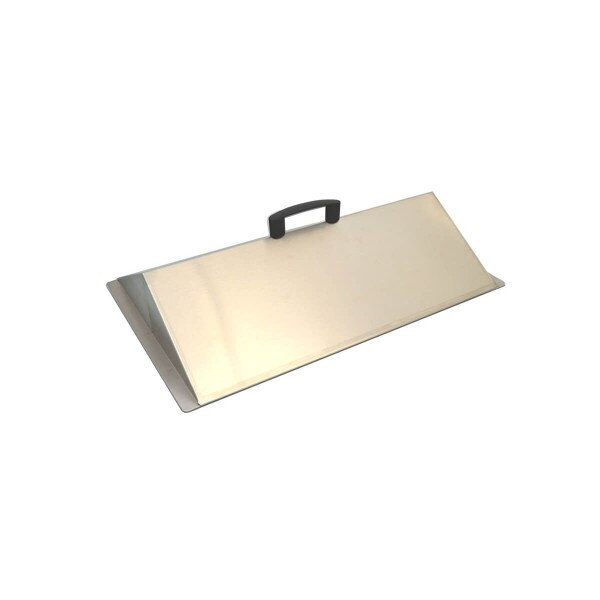

- Supplied with a polycarbonate lid

• Northern and Southern hybridizations
• De-staining of gels
• Incubation of cells or bacterial cultures
• Wash processes

Temperature Range: Ambient +5° to 99°C
Stability: ±0.2°C
Speed Range: 20 to 200 rpm
Orbital Radius: 10 mm
Linear Stroke Length: 20 mm
Temperature Display Resolution: 0.1°C
Shaking Speed Display Resolution: 1 rpm
Timer: settable up to 99 hours 59 minutes
Dimensions: 13 x 22 x 14 in (33 x 55.9 x 35.6 cm)
Weight: 44.5 lbs. (20.2 kg)
Electrical: 115V, 50/60 Hz
Warranty: 2 years
