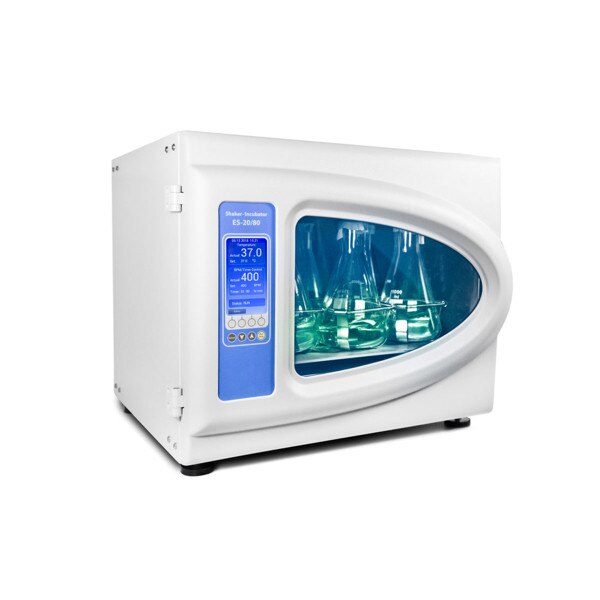

Orbital shaker-incubator, compact, 50 - 400rpm
Details
The advanced Orbital shaker-incubator is designed for biotechnological and pharmaceutical laboratories.
The temperature range is from 5 °C above ambient up to +80 °C with temperature uniformity of ±0.3 °C at 37 °C . The shaker-incubator has a settable speed control range of 50-400 rpm (in 10rpm increments).
The inner chamber is made of stainless steel. State-of-the-art motor, thermal insulation materials and parameter PID control decrease the energy consumption and make the shaker-incubator highly energy efficient despite its relatively large size.

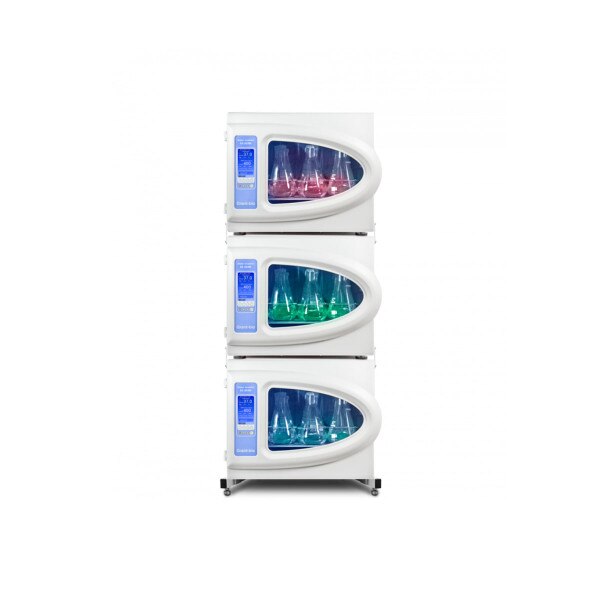

Up to 3 units can be stacked, which enables you to save space. The new clear touchscreen display and simple interface provides a clear and intuitive control of parameters. It also allows data logging, storage and display over time.
Bluetooth® connectivity to PC allows for data management, data logging, parameter control and profiling in the included software.
Available with 5 interchangeable platforms and stacking kits. Must be ordered separately.
Features:
- For biotechnological and pharmaceutical laboratories
- Up to 3 units can be stacked
- Highly energy efficient despite its relatively large size
- Clear and intuitive control of parameters
- Bluetooth® connectivity to PC
Applications:
• Microbial and cell culture cultivation
• Protein expression
• Solubility studies
• General mixing in controlled conditions
• Various other applications in the field of Life Science & Chemistry
Specifications:
Dimensions (W x D x H): 620 x 530 x 510mm
Dimensions of inner chamber: 460 x 400 x 310mm
Stacking: up to 3 units
Temp. setting range: +25ºC to +80ºC (increment 0.1ºC)
Temp. control range: 5ºC above ambient to +80ºC
Temp. setting resolution: 0.1ºC
Temp. stability: ± 0.1ºC
Temp. uniformity at 37ºC: ± 0.3ºC
Temp. accuracy at 37ºC: ± 0.1ºC
Display: TFT, 5 inches
Heat up time to +80ºC inside the chamber: 75 minutes
Speed control rangeL 50-400 rpm (increment 1 min.) / non-stop
Maximum continuous operation time2: 30 days
Maximum load: 10.6kg
PC system requirements: Intel/AMD Processor, 1GB RAM, Windows Vista/7/8/8.1/10/11, USB, Bluetooth
Orbit: 20mm
PC software: on request
Data transfer: Bluetooth
Weight: 48kg
Power consumption (230/120V): 500W (2.2A)
Nominal operating voltage: 230V, 50/60Hz
Product Documents:
Product Flyer
