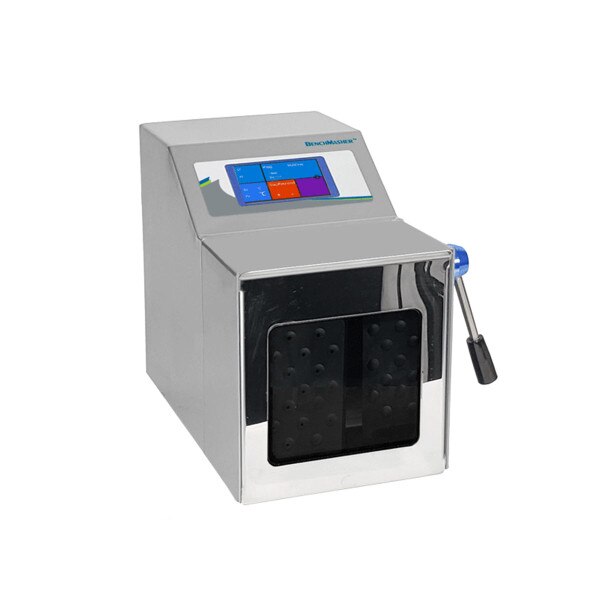

Paddle Blender Homogenizer
Details
The Paddle Blender Homogenizer ensures a consistent homogenization ideal for the preparation of samples where elimination of contamination is crucial, such as pathogen and microbial detection in food and water filters. This unit also offers the fast and efficient ability to break down larger, solid samples as well as mix powders and polymers.
Samples up to 400ml are conveniently loaded in the sterile blender bags which are sealed upon closing the door. Mixing paddles rapidly strike the bags, producing thorough mixing and homogenization without ever directly contacting the sample. The stainless-steel mixing paddles are adjustable and ensure effective sample processing. For applications requiring thermal regulation (such as Trichinella testing in meat) the chamber can be heated and maintained at temperatures up to 65°C.
Complete decontamination of the chamber can be performed anytime due to the built-in UV light (254nm).
Features:
- Contamination free mixing/homogenizing of samples
- Touch screen control with variable mixing speed and temperature control
- Adjustable stroke length to accommodate samples of various types
- Window for sample visualization
- Built in UV light for chamber decontamination
Specifications:
Capacity: 3 to 400mL
Timer: 1 sec. to 100 min. or continuous
Speed Range: 3 to 12 SPS (strokes per second)
Paddle Distance: 0 to 50mm
Temp. Range: Ambient to 65°C
Bag Size: 16-18cm (W) x 25-30cm (H)
UV Bulb: 254nM
Ambient Operating Environment: 2 to 35°C
Dimensions (WxDxH): 9 x 16.5 x 13 in. (23 x 42 x 33 cm)
Weight: 42 lbs / 19kg
Electrical: 120V 60 Hz or 230V 50 Hz 220W
Warranty: 2 years
Samples up to 400ml are conveniently loaded in the sterile blender bags which are sealed upon closing the door. Mixing paddles rapidly strike the bags, producing thorough mixing and homogenization without ever directly contacting the sample. The stainless-steel mixing paddles are adjustable and ensure effective sample processing. For applications requiring thermal regulation (such as Trichinella testing in meat) the chamber can be heated and maintained at temperatures up to 65°C.
Complete decontamination of the chamber can be performed anytime due to the built-in UV light (254nm).
Features:
- Contamination free mixing/homogenizing of samples
- Touch screen control with variable mixing speed and temperature control
- Adjustable stroke length to accommodate samples of various types
- Window for sample visualization
- Built in UV light for chamber decontamination
Specifications:
Capacity: 3 to 400mL
Timer: 1 sec. to 100 min. or continuous
Speed Range: 3 to 12 SPS (strokes per second)
Paddle Distance: 0 to 50mm
Temp. Range: Ambient to 65°C
Bag Size: 16-18cm (W) x 25-30cm (H)
UV Bulb: 254nM
Ambient Operating Environment: 2 to 35°C
Dimensions (WxDxH): 9 x 16.5 x 13 in. (23 x 42 x 33 cm)
Weight: 42 lbs / 19kg
Electrical: 120V 60 Hz or 230V 50 Hz 220W
Warranty: 2 years
