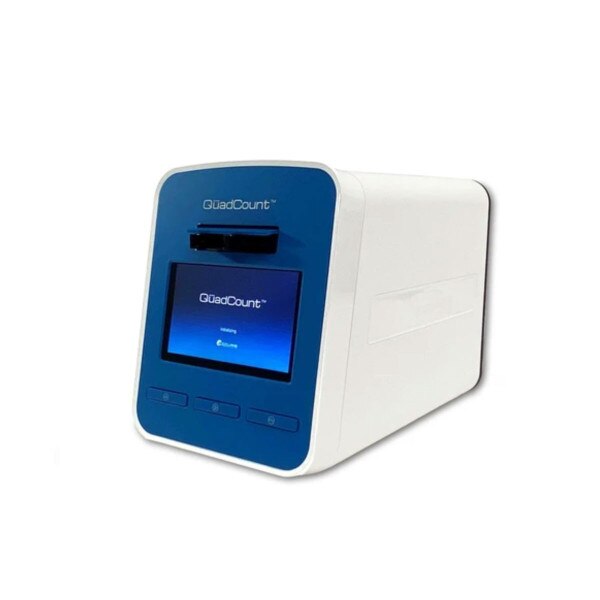

QuadCount automated cell counter, 115V
Details
The QuadCount improves on the simple technique of brightfield microscopy by utilizing an LED light source, precision optics and a high-resolution CMOS detector. A finely tuned, motorized XYZ positioning stage provides for extra fine focusing and the ability to capture multiple images. With count speeds at fast as 20 seconds per sample, the Accuris QuadCount provides many advantages over the tedious and time consuming manual hemocytometry method. The advanced software eliminates human bias in dead/live determinations, reduces counting errors, saves time, and improves efficiency.

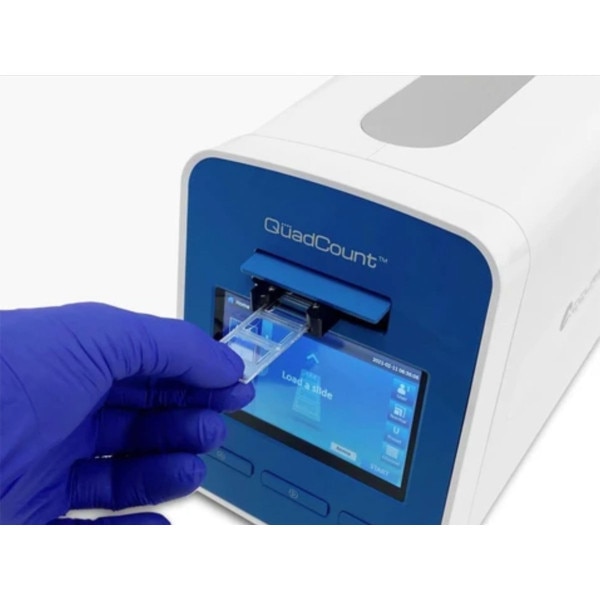

The QuadCount utilizes a unique 4-chambered disposable QuadSlide. Four samples can be processed in one slide (twice the capacity of standard 2-chambered slides), decreasing consumable costs. Each chamber has a hydrophilic inner surface with an engraved grid pattern. High precision production and molding ensure that each QuadSlide meets the rigorous standards and dimensional tolerances required for optimal counting performance.
Features:
- Fast, accurate and reproducible results

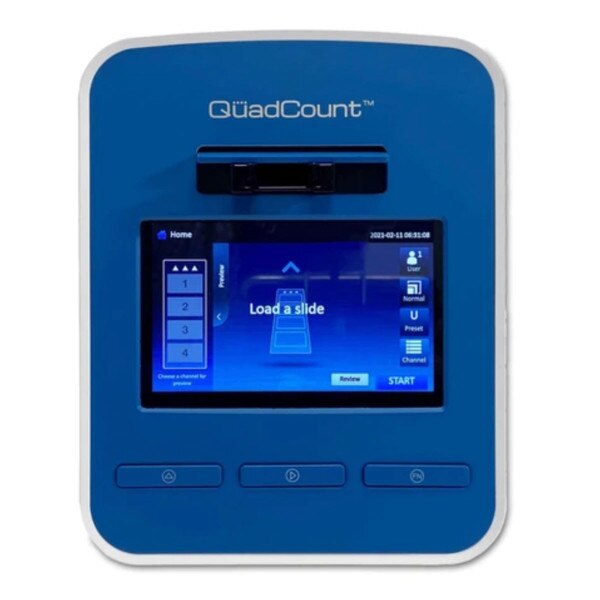

- Intuitive software with auto-focus and touch-screen interface
- Cost-effective Quadslides - disposable slides with four individual chambers
- Increased counting accuracy, with counting volumes up to 3.6µl
- 3 count modes available to analyze different sample volumes:
- Quick Mode: 0.15uL /20 seconds (1 image frame)
- Normal Mode: 0.9uL / 30 seconds (6 image frames)
- Precise Mode: 3.6uL /100 seconds (24 image frames)
Specifications:
Optics: High quality 4x objective lens
Pixel resolution: 2592 x 1944944
Image Detection: 5 megapixel CMOS sensor
Illumination: Green LED (50,000 hour life)
Sample Volume: 20µL (4 samples per QuadSlide)
Max Counting Volume: 3.6µl (24 image captures)
Consumable Slide: QuadSlide, 4 chamber
Counting Modes: Quick (20 sec.), Normal (30 sec.) & Precise (100 sec.)
Dynamic Range: 1 x 104 to 1 x 107 cells per mL
Cell Size Range: 5 - 60 µm
Dimensions (L x W x H) : 6.4 x 11.5 x 8.5 in. (16.3 x 29.3 x 21.6 cm)
Weight: 11 lbs (5kg)
Electrical: 115V or 230V, 50-60Hz
The QuadCount utilizes a unique 4-chambered disposable QuadSlide. Four samples can be processed in one slide (twice the capacity of standard 2-chambered slides), decreasing consumable costs. Each chamber has a hydrophilic inner surface with an engraved grid pattern. High precision production and molding ensure that each QuadSlide meets the rigorous standards and dimensional tolerances required for optimal counting performance.
Features:
- Fast, accurate and reproducible results
- Intuitive software with auto-focus and touch-screen interface
- Cost-effective Quadslides - disposable slides with four individual chambers
- Increased counting accuracy, with counting volumes up to 3.6µl
- 3 count modes available to analyze different sample volumes:
- Quick Mode: 0.15uL /20 seconds (1 image frame)
- Normal Mode: 0.9uL / 30 seconds (6 image frames)
- Precise Mode: 3.6uL /100 seconds (24 image frames)
Specifications:
Optics: High quality 4x objective lens
Pixel resolution: 2592 x 1944944
Image Detection: 5 megapixel CMOS sensor
Illumination: Green LED (50,000 hour life)
Sample Volume: 20µL (4 samples per QuadSlide)
Max Counting Volume: 3.6µl (24 image captures)
Consumable Slide: QuadSlide, 4 chamber
Counting Modes: Quick (20 sec.), Normal (30 sec.) & Precise (100 sec.)
Dynamic Range: 1 x 104 to 1 x 107 cells per mL
Cell Size Range: 5 - 60 µm
Dimensions (L x W x H) : 6.4 x 11.5 x 8.5 in. (16.3 x 29.3 x 21.6 cm)
Weight: 11 lbs (5kg)
Electrical: 115V or 230V, 50-60Hz
