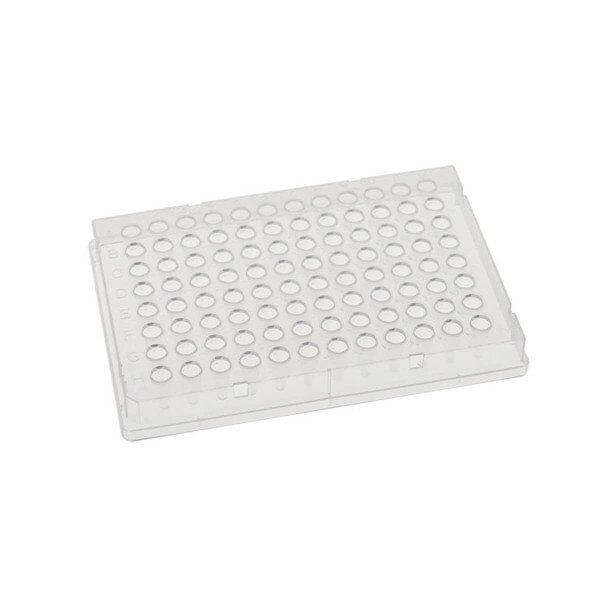

Sapphire 96-well PCR plate, 200uL/100uL working volume, full-skirted
Details
The Sapphire full-skirt low profile, 96-well 0.1mL PCR plate works equally well for manual or automated protocols. The full skirt plate is a very rigid design, providing convenient barcoding areas and automation compatibility. Ultra-flat surfaces, large sidewall area, and rigidity optimize this plate for consistent automated handling with most robotic systems. Plate is easily oriented with corner notch and molded in alpha-numeric. Its ANSI/SLAS 1-2004 compliant footprint ensures that it will fit all standard fixtures, stackers, and other SBS compliant equipment.
Plates are manufactured of low extractable, optically clear, virgin, medical grade polypropylene specifically for the rigorous demands of the research laboratory. Uniformly thin-walls promote rapid even thermal transfer for consistent amplification and increased recovery rate.
Raised rims on each well help protect from cross contamination, minimize sample loss during storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films.
Features:
- Compatible with all standard 0.1mL block thermal cyclers
- Made from ultra-clear research grade silicone; no mold release agents
- RNase, DNase, DNA, PCR inhibitor free, and Pyrogen Free Certification
Specifications:
Surface Treatment: None
Maximum Volume: 200µL
Working Volume: 100µL
Volume with Mat: n/a

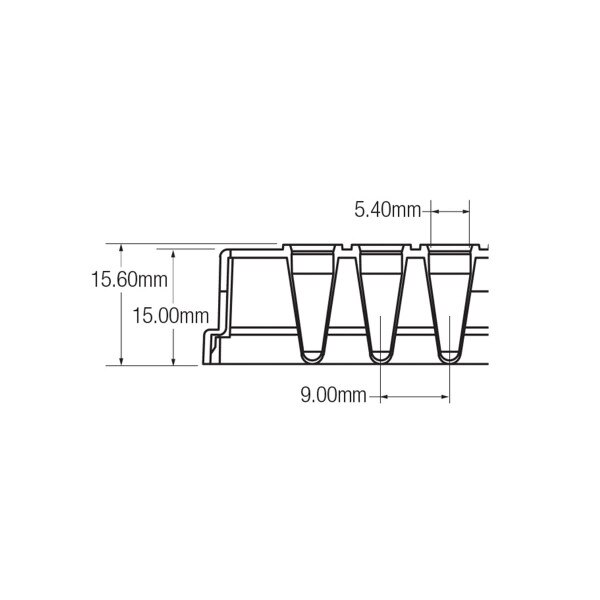

Well Shape Top: Round
Well Shape Bottom: Conical – U
Overall Height: 15.60mm
Well Depth: 14.5mm
Wall Thickness (Average): 0.25mm
Top Width: 85.48mm
Well Diameter Top: 5.40mm
Top Length: 127.76mm
Max Volume: 200µL
Working Volume: 140mL
Volume With Mat Lid: 100µL
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
Plates are manufactured of low extractable, optically clear, virgin, medical grade polypropylene specifically for the rigorous demands of the research laboratory. Uniformly thin-walls promote rapid even thermal transfer for consistent amplification and increased recovery rate.
Raised rims on each well help protect from cross contamination, minimize sample loss during storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films.
Features:
- Compatible with all standard 0.1mL block thermal cyclers
- Made from ultra-clear research grade silicone; no mold release agents
- RNase, DNase, DNA, PCR inhibitor free, and Pyrogen Free Certification
Specifications:
Surface Treatment: None
Maximum Volume: 200µL
Working Volume: 100µL
Volume with Mat: n/a
Well Shape Top: Round
Well Shape Bottom: Conical – U
Overall Height: 15.60mm
Well Depth: 14.5mm
Wall Thickness (Average): 0.25mm
Top Width: 85.48mm
Well Diameter Top: 5.40mm
Top Length: 127.76mm
Max Volume: 200µL
Working Volume: 140mL
Volume With Mat Lid: 100µL
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
