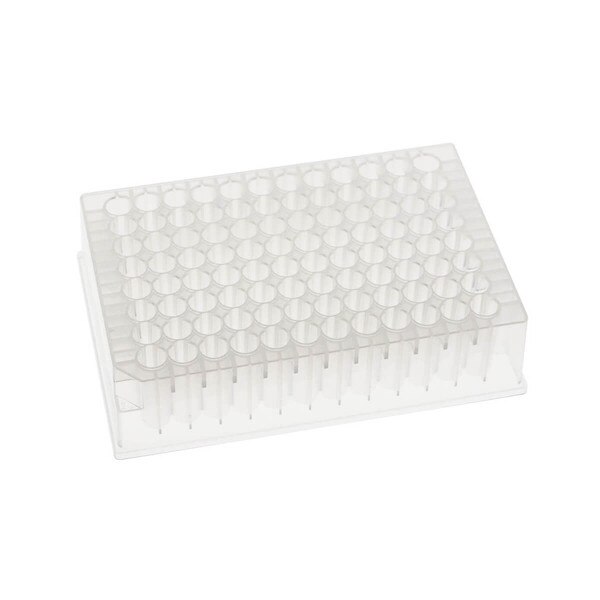

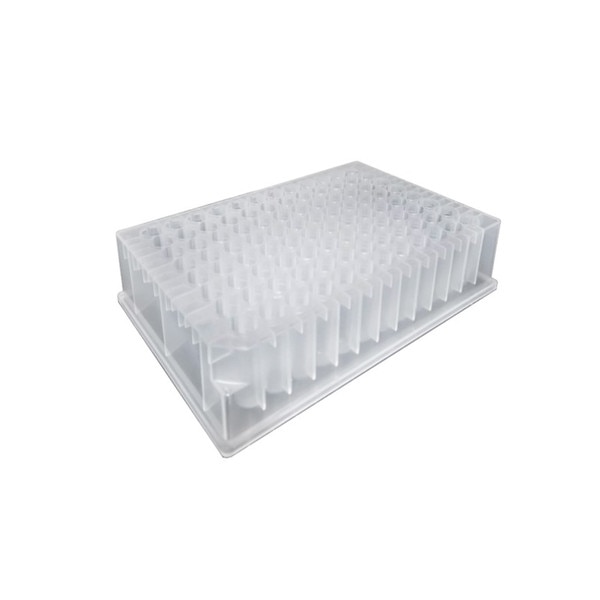

Sapphire Advance 96-Well Deep Plate, PP, U-bottom, Transparent, Non-Sterile, 1.2mL
Details
This Sapphire Advance shared wall 96 deep well U-bottom plate combines optimized mixing and storage with automation friendly design. Sturdy and warp resistant, with ultra-flat surfaces and rigid construction, this plate is ideal for high throughput screening, sample collection, compound storage, screening, mixing, and combinatorial chemistry applications. It is compatible with stackers, grippers, heater/cooler blocks and other instruments that comply with the ANSI/SLAS 2004-1 (SBS) footprint.
Mid-height to maximize storage, utilizing 30-40% less vertical space allowing for more storage in freezers, automated loaders, under the hood, and other locations where space is at a premium. Plates have stacking lugs to help prevent toppling. Raised rims on each well help protect from cross contamination, minimize sample loss during storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films.
Manufactured of inert and exceptionally clear virgin polypropylene that is resistant to most chemicals, solvents and alcohols used in combinatorial chemistry. This plate can withstand temperatures down to -80°C and centrifugation at up to 4,000 x RCF.
Features:
- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design
- Improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification
Performance:
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC

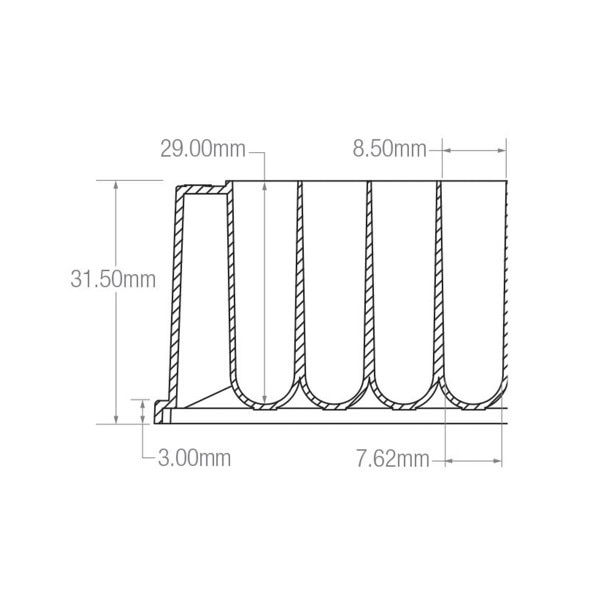

Specifications:
Number of Wells: 96
Well Shape (Top): Square
Well Shape (Bottom): “U”-shaped (optimize mixing and recovery)
Complaince: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 31.5mm x 127.7mm x 85.47mm)
Well Depth: 29.00mm
Top Width: 79.47mm
Well Diameter Bottom: 7.60mm
Well Diameter Top: 8.53mm
Top Length: 122.07mm
Well Bottom To Deck: 2.00mm
Working Volume: 1.2mL
Maximum Volume: 1.3mL
Volume with mat lid: 1.1mL
Material: Polypropylene
Compatible Sealing Mat: ES53910
Mid-height to maximize storage, utilizing 30-40% less vertical space allowing for more storage in freezers, automated loaders, under the hood, and other locations where space is at a premium. Plates have stacking lugs to help prevent toppling. Raised rims on each well help protect from cross contamination, minimize sample loss during storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films.
Manufactured of inert and exceptionally clear virgin polypropylene that is resistant to most chemicals, solvents and alcohols used in combinatorial chemistry. This plate can withstand temperatures down to -80°C and centrifugation at up to 4,000 x RCF.
Features:
- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design
- Improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification
Performance:
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
Specifications:
Number of Wells: 96
Well Shape (Top): Square
Well Shape (Bottom): “U”-shaped (optimize mixing and recovery)
Complaince: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 31.5mm x 127.7mm x 85.47mm)
Well Depth: 29.00mm
Top Width: 79.47mm
Well Diameter Bottom: 7.60mm
Well Diameter Top: 8.53mm
Top Length: 122.07mm
Well Bottom To Deck: 2.00mm
Working Volume: 1.2mL
Maximum Volume: 1.3mL
Volume with mat lid: 1.1mL
Material: Polypropylene
Compatible Sealing Mat: ES53910
