  • Sapphire Advance 96-Well Deep Plate, PP, U-bottom, Transparent, Non-Sterile, 2mL

Sapphire Advance 96-Well Deep Plate, PP, U-bottom, Transparent, Non-Sterile, 2mL

SKU ES53462
PACKAGING: 5/pack, 10 packs/case
(0) No Reviews yet

Out of stock, more arriving soon!

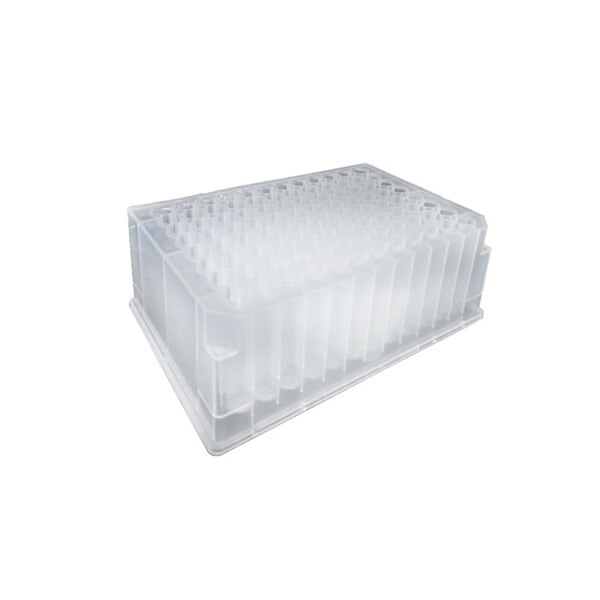

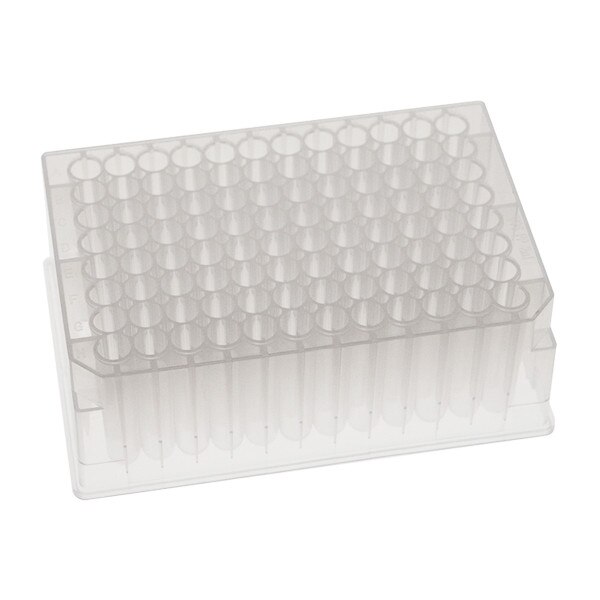

This shared wall 8mm round well U-bottom plate combines optimized mixing and storage with automation friendly design. Sturdy and warp resistant, with ultra-flat surfaces and rigid construction, this plate ideal for high throughput screening, sample collection, compound storage, screening, mixing, and combinatorial chemistry applications. It is compatible with stackers, grippers, heater/cooler blocks and other instruments that comply with the ANSI/SLAS 2004-1 (SBS) footprint.

Raised rims on each well help protect from cross contamination, minimize sample loss during storage, and make for enhanced sealing with adhesive films, silicone mats, or heat sealing films. Manufactured of inert and exceptionally clear virgin polypropylene that is resistant to most chemicals, solvents and alcohols used in combinatorial chemistry. This plate can withstand temperatures down to -80°C and centrifugation at up to 4,000 x RCF

Sapphire Advance deep well plates offer:

  • Ultra-flat surfaces
  • Alphanumeric grid reference
  • Raised Well Design- improved heat sealing and reduced cross contamination
  • Storage down to -80°C
  • Automation compliant footprint (SBS/ ANSI/SLAS specification)
  • Made fromVirgin Polypropylene; no mold release agents or regrind
  • RNase, DNase, DNA, and Pyrogen Free Certification

Number of Wells: 96

Well Shape (Top): Round

Well Shape (Bottom): “U”-shaped (optimize mixing and recovery)

Footprint: ANSI/SBS 1-2004

Plate Dimensions (H x L x W): 45.3mm x 127.7mm x 85.47mm)

Working Volume: 2.0mL

Maximum Volume: 2.1mL

Volume with mat: 1.9mL

Compatible Sealing Mat: ES53910
