  • Sapphire Advance 96-Well Plate, PP, U-Bottom, Transparent, Non-Sterile, 500 ul

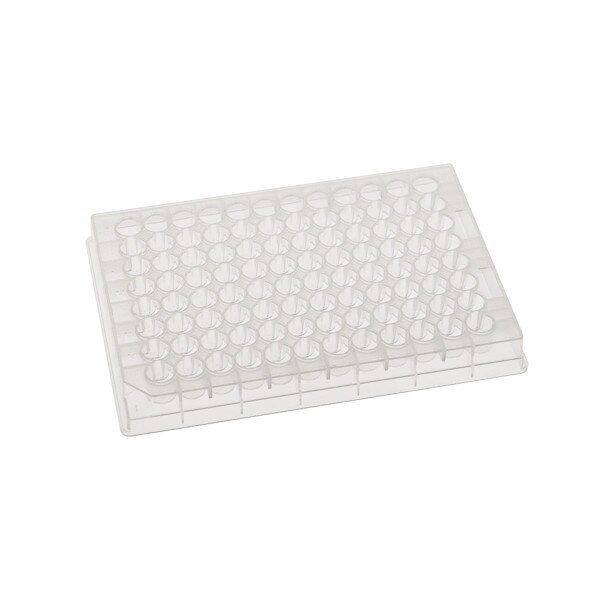

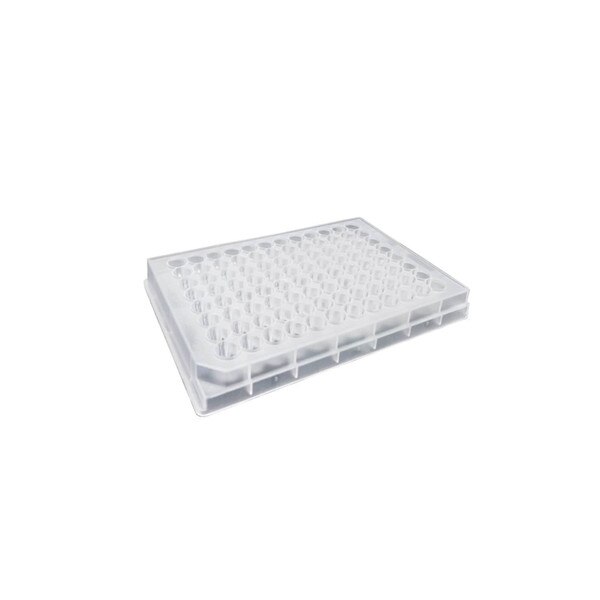

Sapphire Advance 96-Well Plate, PP, U-Bottom, Transparent, Non-Sterile, 500 ul

SKU ES53442
(0) No Reviews yet


This Sapphire Advance deep well plate offers huge round U-bottom wells that provide easier access and up to 500uL per well of working volume in a 14.4mm high microplate. Manufactured from chemically resistant and inert virgin polypropylene, this plate is optimized for sample collection; combinatorial chemistry; library applications, bacterial and yeast growth, storage, mixing and sample recovery. Ideal for assay work, sample collection, and storage; the unique open bottom design maximizes volume, while larger diameter wells improve sample access and mixing.

The sturdy design and ANSI/SLAS 2004 compliant footprint (SBS) allow for automated usage with grippers, stackers, and heater/cooler blocks.

Raised rims on each well make for easy and secure sealing with adhesive films, silicone mats, or heat sealing films, help prevent cross contamination, and reduce sample loss in storage. Lot to lot tested and certified to be free of RNase, DNase, and Pyrogen contamination.

- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design- improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification

Number of Wells: 96
Well Shape (Top): Round
Well Shape (Bottom): “U”-shaped (optimize mixing and recovery)
Footprint: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 14.4 x 127.7 x 85.47mm
Working Volume: 500μL
Maximum Volume: 550μL
Volume with Mat: 350µL
Material: Polypropylene
Compatible Sealing Mat: ES53910
