  • Sapphire Advance 96-Well Plate, PP, V-Bottom, Transparent, Non-Sterile, 1.2mL

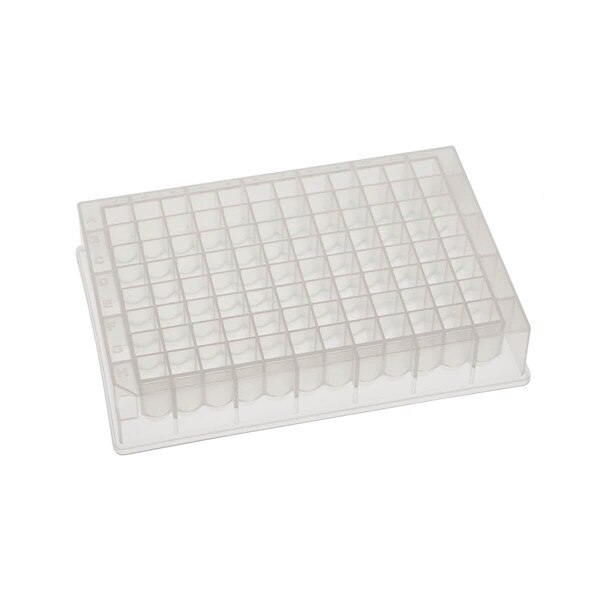

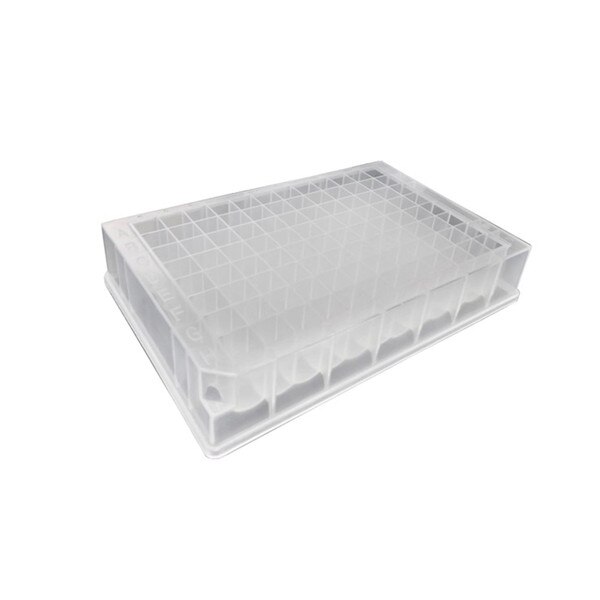

Sapphire Advance 96-Well Plate, PP, V-Bottom, Transparent, Non-Sterile, 1.2mL

SKU ES53471
$744.77
(0) No Reviews yet

Details

These plates offer secure storage for assays, combinatorial chemistry, compound libraries or storing samples for any duration. Mid-height to maximize storage, utilizing 30-40% less vertical space allowing for more storage in freezers, automated loaders, under the hood, and other locations where space is at a premium. Plates have stacking lugs to help prevent toppling.

The design combines optimized well volume with automation friendly features. Sturdy and warp resistant with ultra-flat surfaces and rigid construction, this plate ideal for high throughput screening (HTS). Its ANSI/SLAS1-2004 compliant footprint ensures that it will fit all standard fixtures, stackers, and heater/cooler blocks. Inert medical grade virgin polypropylene resins are ideally suited for stable, long term high-density sample storage at -80°C. The square well pyramid-V bottom design helps maximize sample recovery. Raised rims on each well help protect from cross contamination, reduce sample loss in storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films. Plates are certified to be free of RNase, DNase, and Pyrogen contamination.

Features:
- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design- improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification

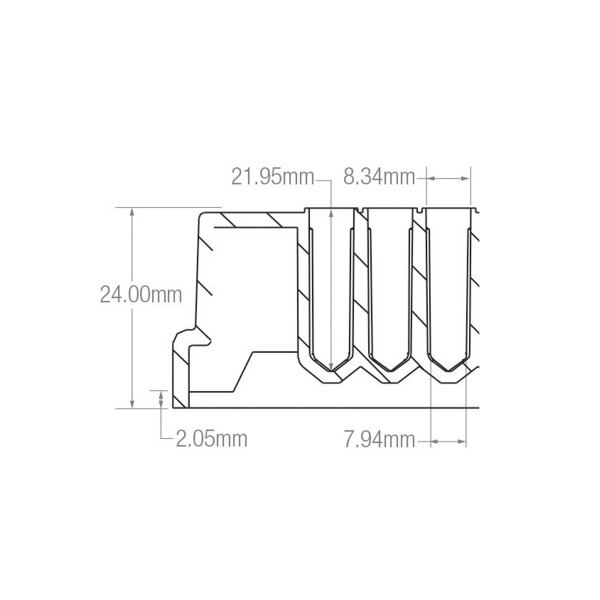

Specifications:
Number of Wells: 96
Well Shape (Top): Square
Well Shape (Bottom): Pyramid – V
Footprint: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 24mm x 127.7mm x 85.47mm)
Well Depth: 21.95mm
Top Width: 82.24mm
Well Diameter Bottom: 7.94mm x 7.94mm
Well Diameter Top: 8.34mm x 8.34mm
Top Length: 124.53mm
Well Bottom To Deck: 2.05mm
Working Volume: 1.2mL
Maximum Volume: 1.3mL
Volume with Mat: 1.1mL
Autoclavable: 121ºC at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
Material: Polypropylene
Compatible Sealing Mat: ES53917
