  • Sapphire Advance 96-Well Plate, PP, V-Bottom, Transparent, Non-Sterile, 2.2mL

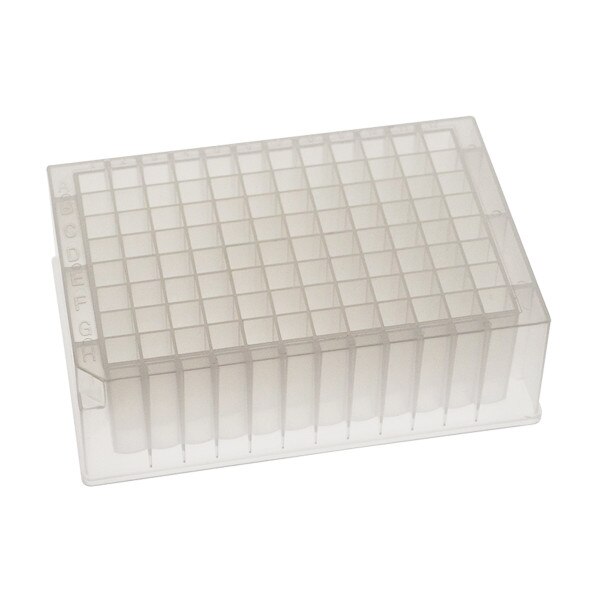

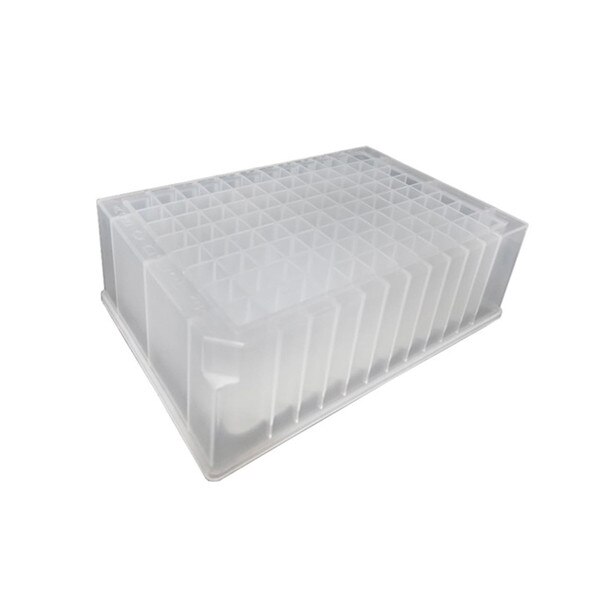

Sapphire Advance 96-Well Plate, PP, V-Bottom, Transparent, Non-Sterile, 2.2mL

SKU ES53472
$419.11
(0) No Reviews yet

Details

These Sapphire Advance plates offer secure storage for assays, magnetic bead separations, combinatorial chemistry, compound libraries or storing samples for any duration. Mid-height with square wells to maximize volume with pyramid-V bottom design helps maximize sample recovery and magnetic bead collection. Plates have stacking lugs to help prevent toppling.

The design combines optimized well volume with automation friendly features. Sturdy and warp resistant with ultra-flat surfaces and rigid construction, this plate ideal for high throughput screening (HTS). Its ANSI/SLAS 1-2004 compliant footprint ensures that it will fit all standard fixtures, stackers, and heater/cooler blocks. Raised rims on each well help protect from cross contamination, reduce sample loss in storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films. Inert medical grade virgin polypropylene resins are ideally suited for stable, long term high-density sample storage at -80°C.

Plates are certified to be free of RNase, DNase, and Pyrogen contamination.

Features:
- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design - improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification

Specifications:
Number of Wells: 96
Well Shape (Top): Square
Well Shape (Bottom): “V”-shaped (zero “dead space” and optimize particulate collection)
Footprint: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 41. x 127.7 x 85.47mm
Working Volume: 2.2mL
Maximum Volume: 2.3mL
Volume with Mat: 1.9mL
Material: Polypropylene
Compatible Sealing Mat: ES53917
