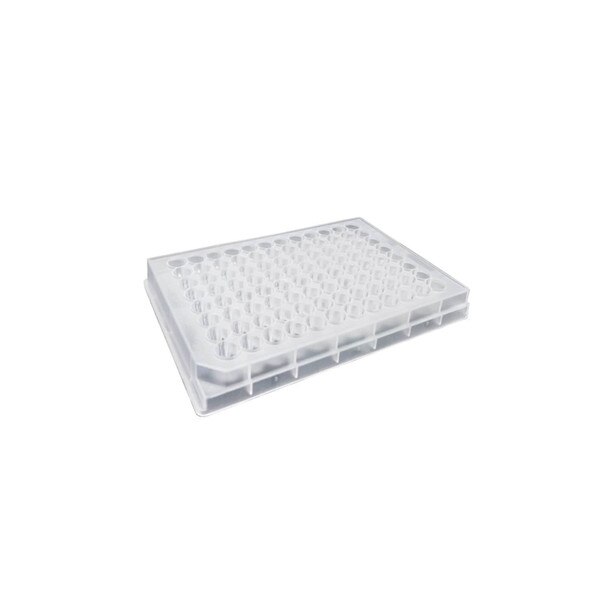

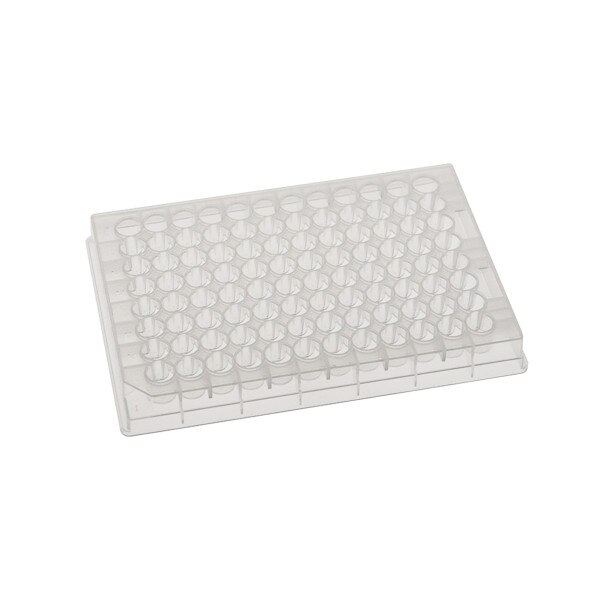

Sapphire Advance 96-Well Plate, PP, V-Bottom, Transparent, Non-Sterile, 480 ul

SKU ES53441
(0) No Reviews yet


Huge round top with conical V-bottom wells provide easier access and up to 480ul per well of working volume in this 14.4mm high micro plate. Manufactured from chemically resistant and inert virgin polypropylene, this plate is optimized for sample collection; combinatorial chemistry; library applications, bacterial and yeast growth, storage, and sample recovery. The V-bottom design helps to concentrate reagents and sample, minimizing the amount of both needed. It also improves sample recovery, while larger diameter wells improve sample access and overall volume.

The sturdy design and ANSI/SLAS 2004 compliant footprint (SBS) allow for automated usage with grippers, stackers, and heater/cooler blocks.

Raised rims on each well make for easy and secure sealing with adhesive films, silicone mats, or heat sealing films, help prevent cross contamination, and reduce sample loss in storage. Lot to lot tested and certified to be free of RNase, DNase, and Pyrogen contamination.

- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design-improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification

Number of Wells: 96
Material: Polypropylene
Well Shape (Top): Round
Well Shape (Bottom): “V”-shaped (zero “dead space” and optimize particulate collection)
Footprint: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 14.4mm x 127.7mm x 85.47mm)
Working Volume: 480μL
Maximum Volume: 520µL
Volume with Mat: 300µL
Compatible Sealing Mat: ES53910
