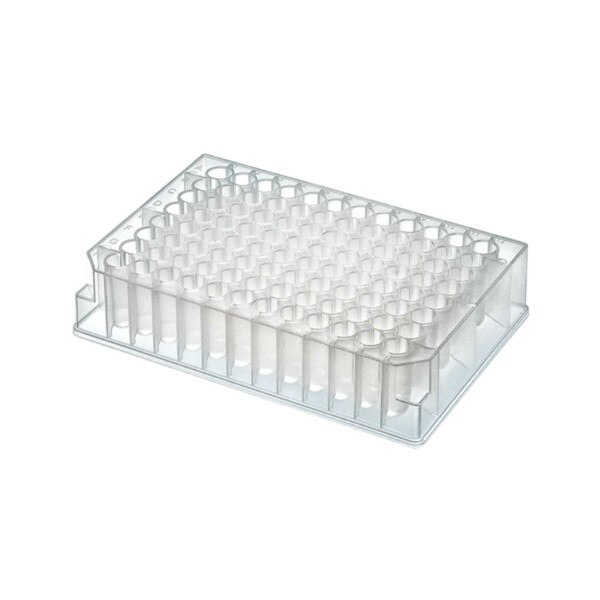

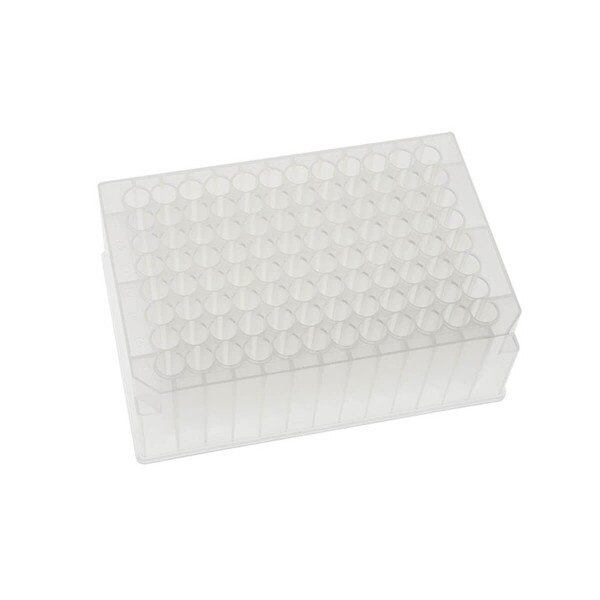

Sapphire Advanced deep well plate, 1.6mL 96-Round well, U-bottom, Natural
Details
A Sapphire Advance 96 deep well plate with round, conical-U bottom wells helps maximize sample recovery, minimize reagent usage, and recovery of magnetic beads. Raised rims on each well help protect from cross contamination, reduce sample loss in storage, and make for enhanced sealing with adhesive films, silicone mats, or heat-sealing films. Plates have stacking lugs to help prevent toppling. Sturdy and warp resistant with ultra-flat surfaces and rigid construction, this plate is well matched for automated applications. Its ANSI/SLAS 1-2004 compliant footprint ensures that it will fit all standard fixtures, stackers, and heater/cooler blocks.
These plates are suitable for bacterial cultures, high-throughput screening (HTS), assay work, magnetic bead separations, combinatorial chemistry, as collection plates, compound libraries or secure sample storage. Inert medical grade virgin polypropylene resins are ideally suited for stable, long term high-density sample storage at -80°C.
Features:
- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design - improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification
Specifications:
Number of Wells: 96
Well Shape (Top): Round
Well Shape (Bottom): “U”-shaped (optimize mixing and recovery)
Footprint: ANSI/SBS 1-2004

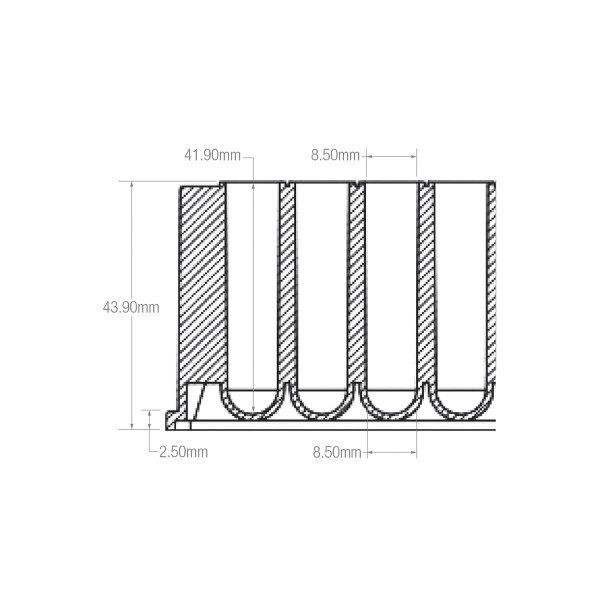

Plate Dimensions (H x L x W): 43.9 x 127.78 x 85.48mm
Well Depth: 41.90mm
Top Width: 80.40mm
Well Diameter Bottom: 7.40mm
Well Diameter Top: 8.50mm
Top Length: 123.60mm
Well Bottom To Deck: 1.30mm
Working Volume: 1.6 mL
Maximum Volume: 1.7 mL
Volume with Mat: 1.5 mL
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
Material: Polypropylene
Compatible Sealing Mat: ES53931
These plates are suitable for bacterial cultures, high-throughput screening (HTS), assay work, magnetic bead separations, combinatorial chemistry, as collection plates, compound libraries or secure sample storage. Inert medical grade virgin polypropylene resins are ideally suited for stable, long term high-density sample storage at -80°C.
Features:
- Ultra-flat surfaces
- Alphanumeric grid reference
- Raised Well Design - improved heat sealing and reduced cross contamination
- Storage down to -80°C
- Automation compliant footprint (SBS/ ANSI/SLAS specification)
- Made from Virgin Polypropylene; no mold release agents or regrind
- RNase, DNase, DNA, and Pyrogen Free Certification
Specifications:
Number of Wells: 96
Well Shape (Top): Round
Well Shape (Bottom): “U”-shaped (optimize mixing and recovery)
Footprint: ANSI/SBS 1-2004
Plate Dimensions (H x L x W): 43.9 x 127.78 x 85.48mm
Well Depth: 41.90mm
Top Width: 80.40mm
Well Diameter Bottom: 7.40mm
Well Diameter Top: 8.50mm
Top Length: 123.60mm
Well Bottom To Deck: 1.30mm
Working Volume: 1.6 mL
Maximum Volume: 1.7 mL
Volume with Mat: 1.5 mL
Autoclavable: 121C at 15 psi, 15 min.
Max RCF: 4,000 RCF
Max Temperature: 120ºC
Min Temperature: -80ºC
Material: Polypropylene
Compatible Sealing Mat: ES53931
