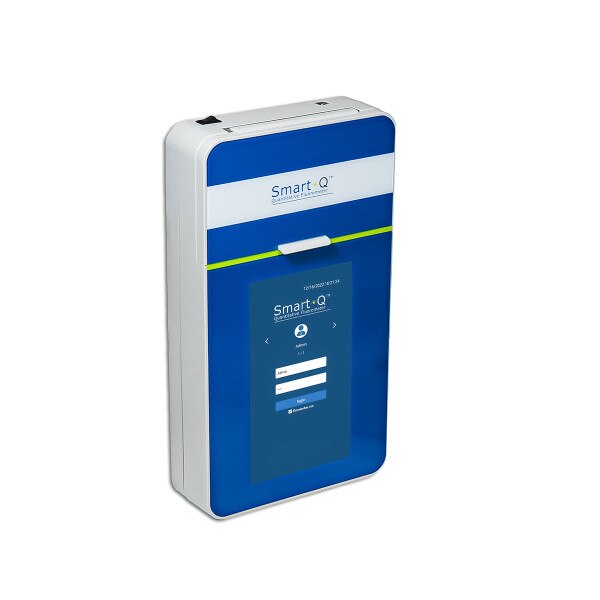

Smart-Q™ 800 Quantitative Fluorometer, Eight samples

The Smart-Q™ 800 Fluorometer is designed for the precise quantification of DNA, RNA, and protein samples. By utilizing well-established methodologies for fluorescence detection, the Smart-Q Fluorometers provide higher specificity and enhanced accuracy compared to the traditional method of UV-absorbance detection. Accurate results are particularly crucial in workflows involving:
- Next Generation Sequencing
- PCR
- Transfection
- Western blotting
- Immunoassays

The Smart-Q Fluorometers are engineered to achieve optimal performance with Fluorescent DNA Quantification Kits and assay tubes; however, they also maintain compatibility with a range of kits offered by various other suppliers.

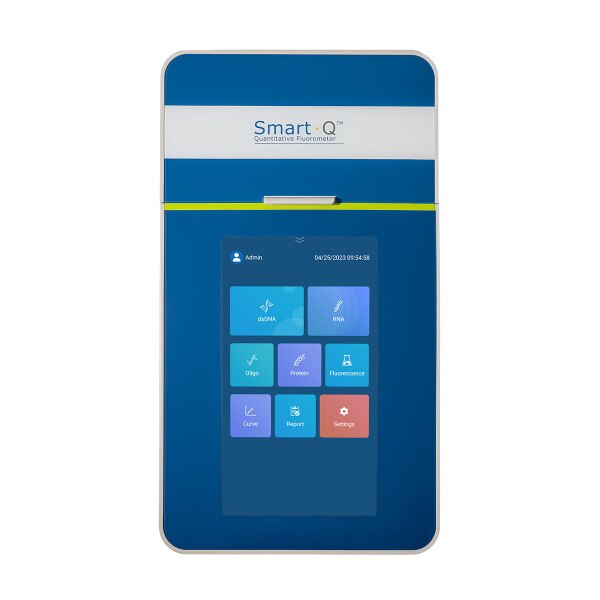

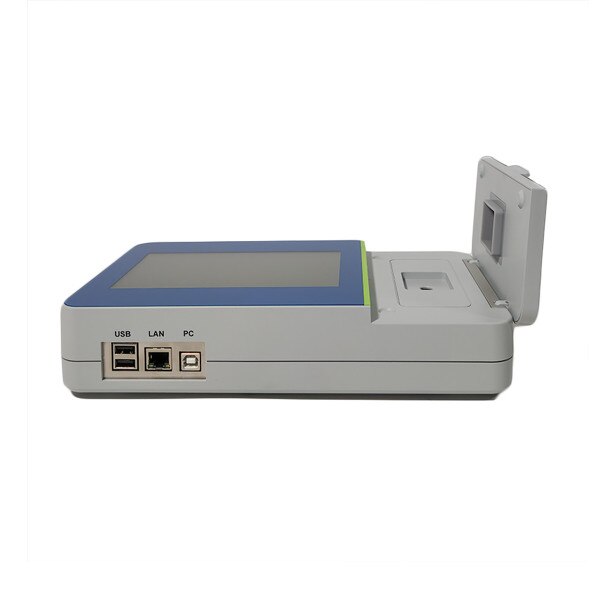

Equipped with a 7-inch color touchscreen, featuring an intuitive, icon-driven user interface. Preprogrammed protocols allow for quick & effortless assay set-up. Results are quickly calculated and displayed in less than 6 seconds, and saved to the instrument’s internal memory. All data can be also be exported easily to a PC using a USB flash drive.

The Smart-Q Fluorometers, along with their accompanying assay kits, are engineered for the precise measurement of fluorescent dye signals that are bound to targeted biological molecules. These specially formulated dyes exhibit selective affinity towards DNA, RNA, or proteins, and generate fluorescent signals exclusively upon binding to their respective targets. Both Smart-Q models include Blue and Red channels that allow for various fluorescent dyes to be used in nucleic acid and protein measurements.

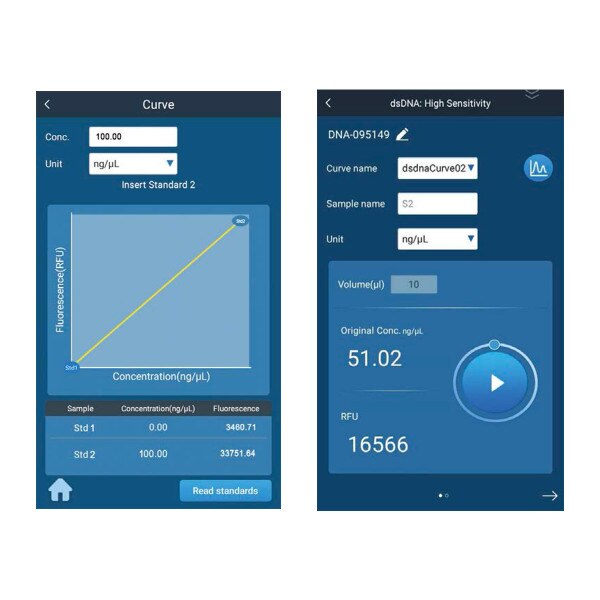

The Smart-Q Fluorometers incorporate advanced curve-fitting algorithms to establish calibration curves from standard samples of known concentrations.

The concentration of an unknown sample, whether it be DNA, RNA, or protein, is determined by correlating its Relative Fluorescence Units (RFUs) with those of the standards employed during calibration. The measurement sensitivity for each type of assay is distinct and defined by its detection limits.

Features:
- Sensitive quantitation down to 0.1pg/ul ds DNA
- Large color touch screen for programming and operation
- Two models for single or 8-sample processing
- Built-in reagent calculators for sample preparation
- Compact and portable (11 x 6 inch footprint)

Specifications:
Display: 7.0-inch, color touch screen
Dynamic range: 4 orders of magnitude
Light source: Blue & Red LED
Excitation wavelengths: Blue: 460 ± 20nm and Red: 625 ± 20nm
Emission wavelengths: Green: 525 – 570nm and Red: 670 – 725nm
Stability: ≤ 1.5%
Detector: Photodiodes (300-1000nm)
Measurement speed: ≤ 6 seconds
Consumable speed: 0.2mL assay tubes (single and 8-tube strip)
Input voltage: 24 VDC 2A
Dimensions (WxDxH): 6.3 x 11.3 x 3.0 in. (16.1 x 28.7 x 7.6 cm)
Weight: 4.4 lbs (2.0 kg)
