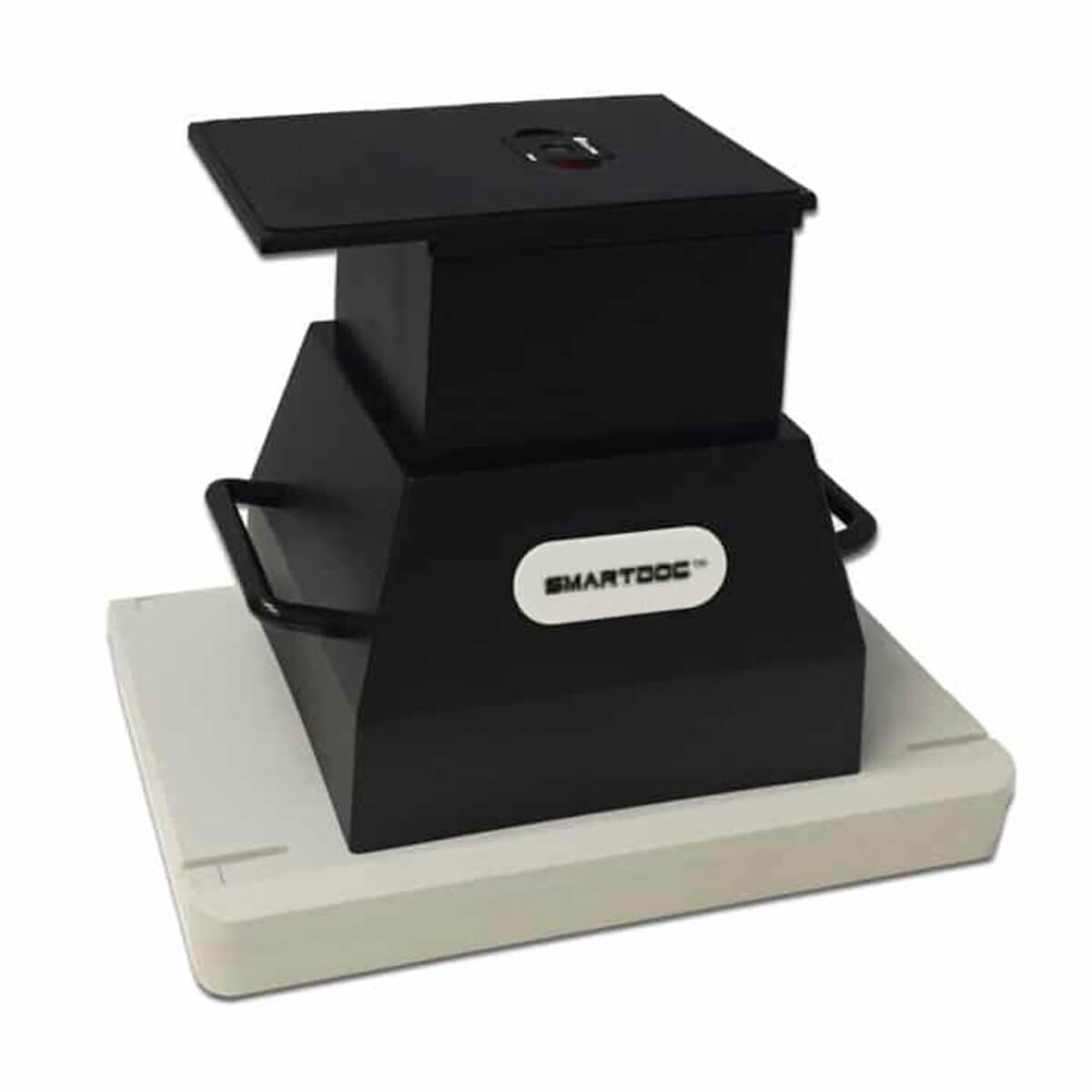

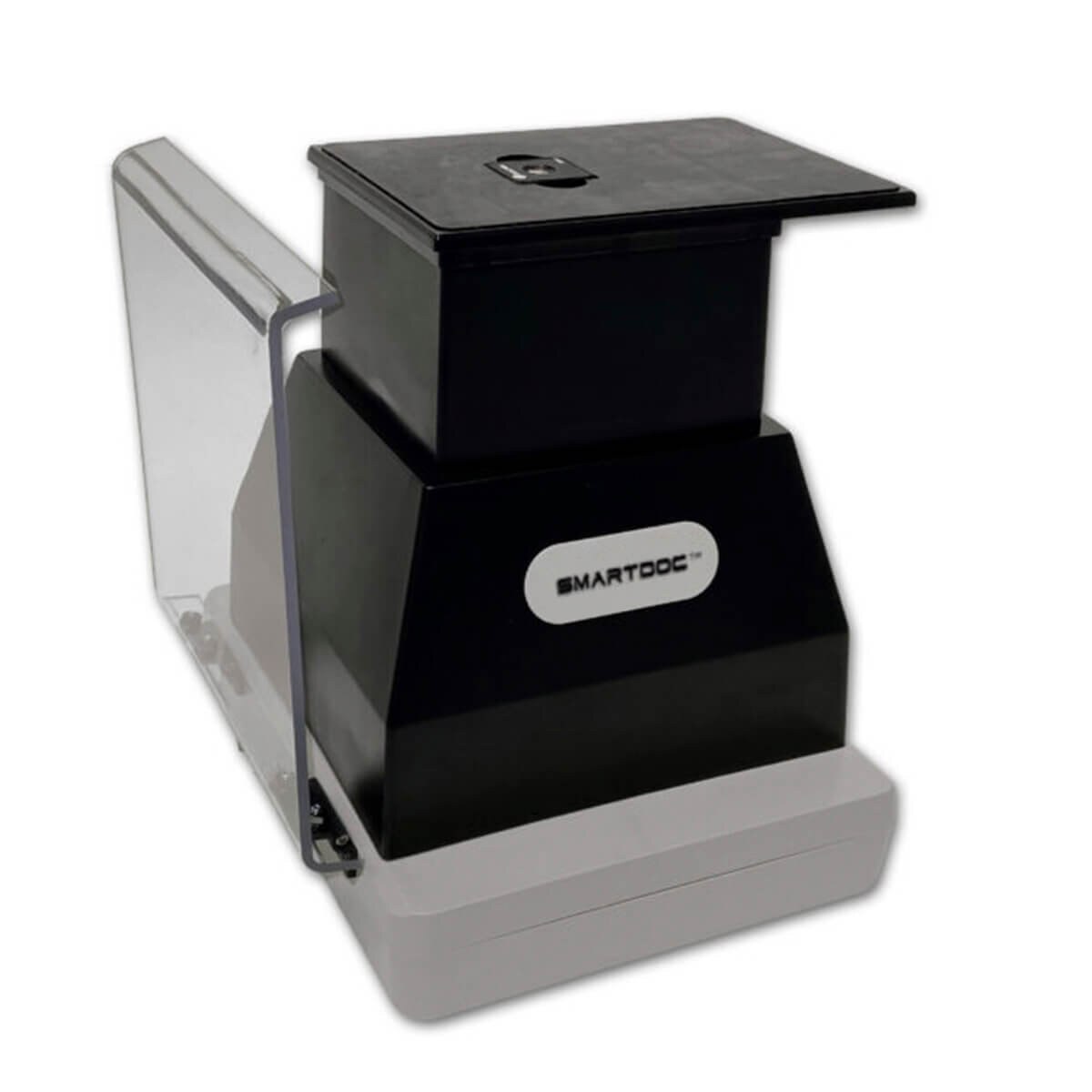

SmartDoc™ Gel Imaging System
Details
The SmartDoc can be used on most existing UV or visible blue light transilluminators. An orange photo filter is included for photography of the gels when using a visible blue light transilluminator for stain excitation. For imaging gels on a UV transilluminator, there are 3 optional photo filters available: 535nm filter for imaging green stains on UV light, 590nm filter for imaging EtBr on UV light, and the UV Blocking filter is optimized for use with the myView UV Transilluminator (ES59705).
An extending adapter is included with the enclosure and can be inserted for full dimension imaging of gels up to 15 x 15 cm. Or remove the adapter for close up pictures or smaller gels.
When using the SmartDoc enclosure on transilluminators with a large illuminating surface (exceeding 19 x 19 cm), use ES59703 to block light around the edge.
The SmartDoc™ Gel Imaging System offers 3 easy steps:
1. Place enclosure over gel and transilluminator.

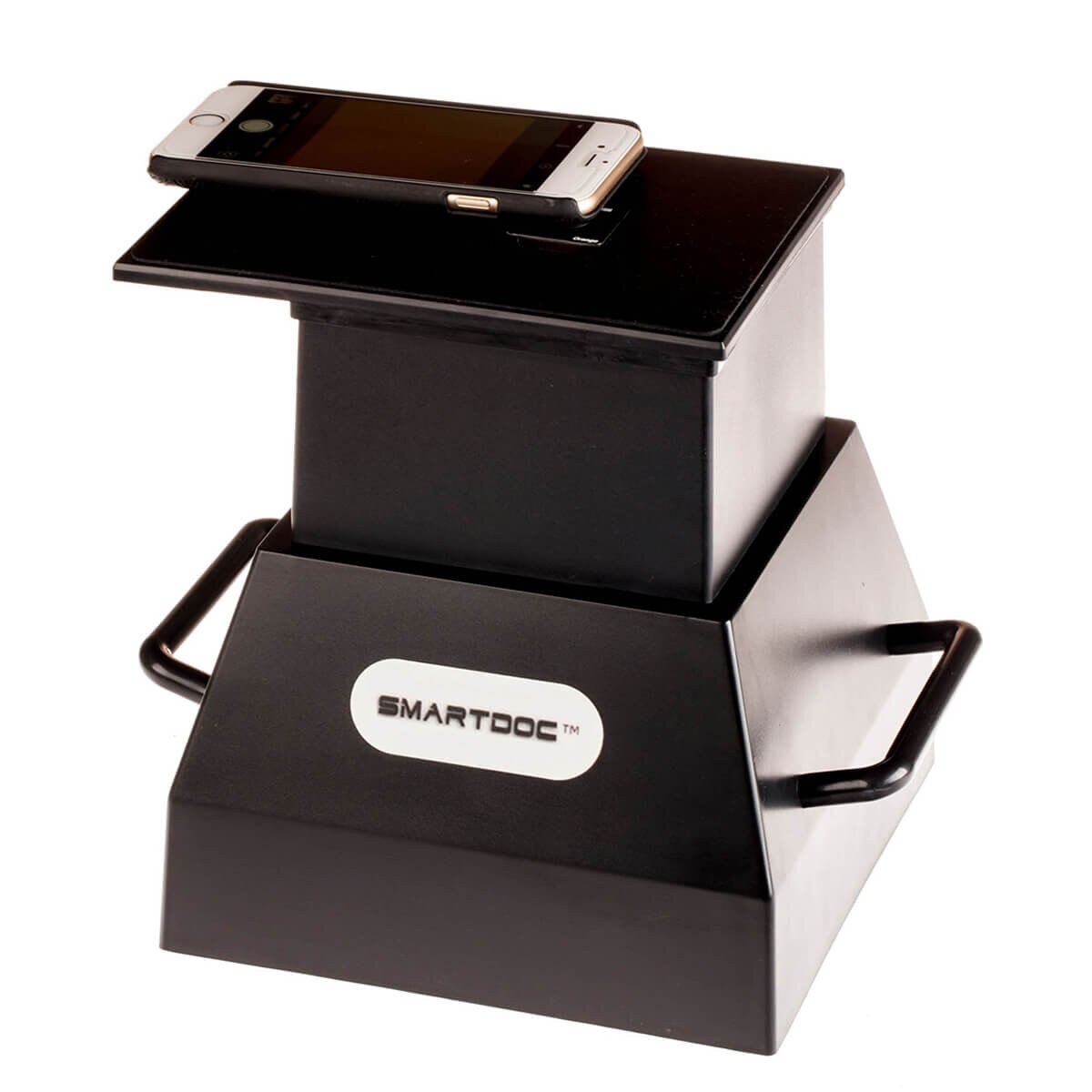

2. Lay smart phone or tablet onto non-slip rubber pad and align the camera lens over the filter. Platform can be adjusted vertically to optimize focus and image size.
3. Preview the image on smart phone or tablet before capturing the image.
Features:
- Economical alternative to traditional gel imaging systems, providing you with quality images of gels for records and analysis
- Compatible with smart phones and tablets (iPhone™, iPad™, and Android™), allowing you to instantly share images by text, email, or cloud sharing
- Adjustable focal distance for optimal focus and image size
- Imaging enclosure can be used on existing transilluminators
- Includes imaging enclosure and orange photo filter
- 19 x 19 cm base fits on most existing UV or blue transilluminators
Specifications:
Max dimensions imaging gel: 15 x 15 cm
An extending adapter is included with the enclosure and can be inserted for full dimension imaging of gels up to 15 x 15 cm. Or remove the adapter for close up pictures or smaller gels.
When using the SmartDoc enclosure on transilluminators with a large illuminating surface (exceeding 19 x 19 cm), use ES59703 to block light around the edge.
The SmartDoc™ Gel Imaging System offers 3 easy steps:
1. Place enclosure over gel and transilluminator.
2. Lay smart phone or tablet onto non-slip rubber pad and align the camera lens over the filter. Platform can be adjusted vertically to optimize focus and image size.
3. Preview the image on smart phone or tablet before capturing the image.
Features:
- Economical alternative to traditional gel imaging systems, providing you with quality images of gels for records and analysis
- Compatible with smart phones and tablets (iPhone™, iPad™, and Android™), allowing you to instantly share images by text, email, or cloud sharing
- Adjustable focal distance for optimal focus and image size
- Imaging enclosure can be used on existing transilluminators
- Includes imaging enclosure and orange photo filter
- 19 x 19 cm base fits on most existing UV or blue transilluminators
Specifications:
Max dimensions imaging gel: 15 x 15 cm
