SmartWasher 96 microplate washer for 96 well plates
Details
The SmartWasher™ 96 automates the process of ELISA plate washing so assays can be prepared quickly, accurately, and with confidence for absorbance reading. The SmartWasher 96 microplate washer can create proper needle precision and ease of rinsing.

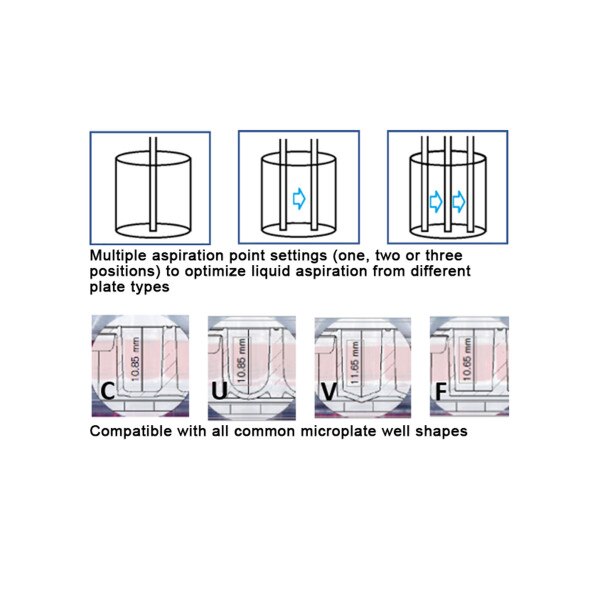

Research requires flexibility – the SmartWasher™ 96 provides it. Full plates, partial plates, and strips with U, V, C, or flat bottoms are accepted by this fully automated washer. Multiple aspiration point settings allow for minimal residual liquid in the wells after aspiration. All parameters, including dispense volume, suction time, soak and shake cycles, and shaking speed are easily programmed using the large 4.3” LCD display and keypad. Up to 100 wash protocols can be stored on board the SmartWasher™ 96 and recalled when needed, or transferred between machines with a flash drive.

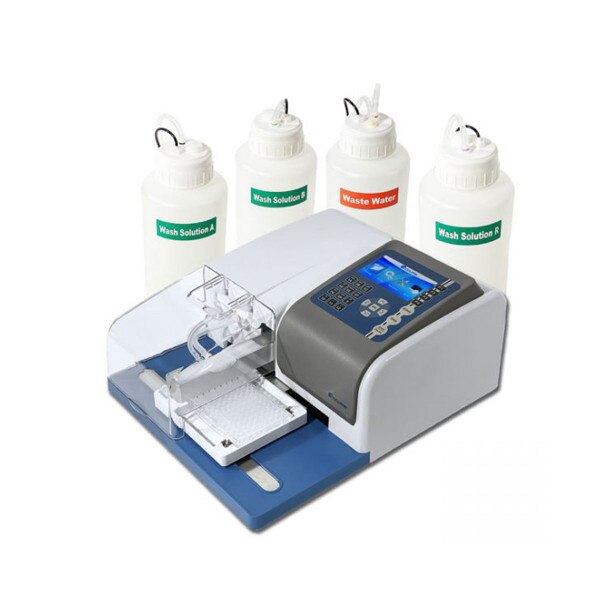

The washer comes equipped with 2 wash bottles, 1 rinse bottle and a waste bottle. All have sensors that alert the user when the solutions are low, or in the case of the waste bottle, when it needs to be emptied. An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs.
Features:

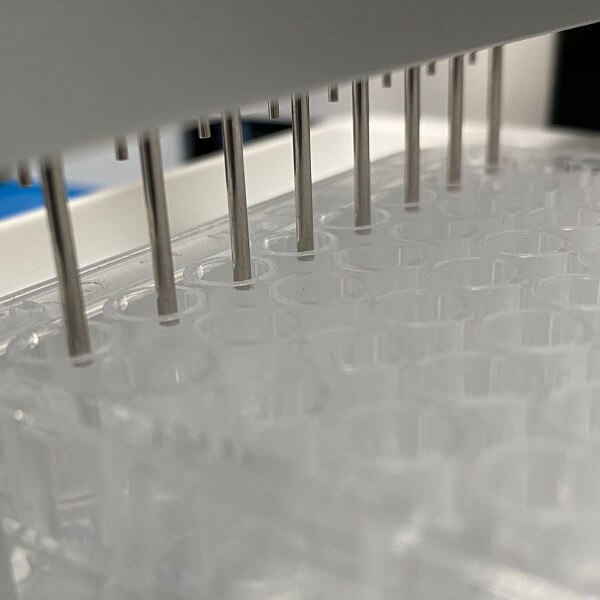

- Precision control of aspiration needle position
• Accurate to 0.1mm
• Minimal residual liquid, ≤1μl/well
- Auto rinse function eliminates cross contamination
- Up to 100 wash protocols can be customized and stored
- Liquid level sensors in wash and waste bottles
- Wash protocols can be transferred via flash drive
Specifications:

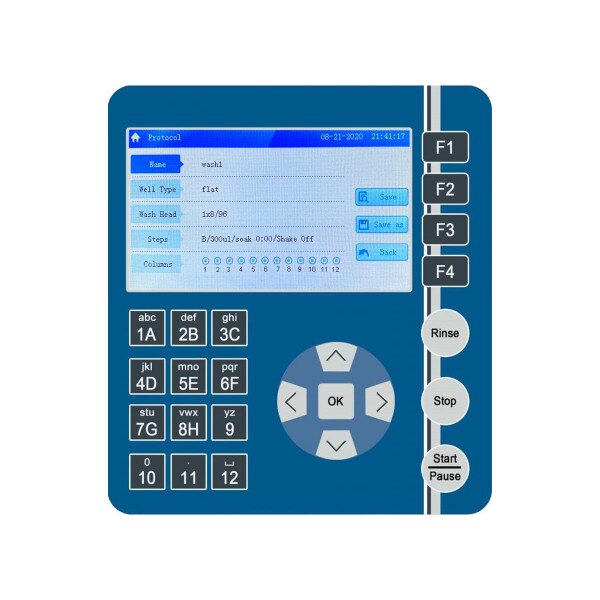

Control and Display: 4.3-inch LCD display
Wash Heads: 8 channel or 12 channel
Wash Modes: 1 point, 2 point, or 3 point aspiration
Compatible Microplates: 96 wells, standard SBS dimensions
Residual Liquid Volume: ≤ 1ul (each well)
Dispensing Volume Range: 50ul – 2000 ul
Wash Cycles: 1 ~ 99 cycles
Program Storage Capacity: 100 programs
Rinse Function Time Range: 00:00 ~ 03:59 (mm : ss)
Soak and Shaking Time Range: 00:00 ~ 99:00 (mm : ss)
Wash Bottle Level Warning: Yes, sensors included in wash and rinse bottles
Wash Solution Channels: 3 bottles
Waste Bottle Level Warning: Yes; sensors detect when waste bottle is full
Waste Aspiration: Yes
Dimensions: 345 x 460 x 200 mm / 13.5 x 18 x 8.5 inches
Weight: 11.5 kg / 25.3 Lbs
Research requires flexibility – the SmartWasher™ 96 provides it. Full plates, partial plates, and strips with U, V, C, or flat bottoms are accepted by this fully automated washer. Multiple aspiration point settings allow for minimal residual liquid in the wells after aspiration. All parameters, including dispense volume, suction time, soak and shake cycles, and shaking speed are easily programmed using the large 4.3” LCD display and keypad. Up to 100 wash protocols can be stored on board the SmartWasher™ 96 and recalled when needed, or transferred between machines with a flash drive.
The washer comes equipped with 2 wash bottles, 1 rinse bottle and a waste bottle. All have sensors that alert the user when the solutions are low, or in the case of the waste bottle, when it needs to be emptied. An auto-rinse function primes the dispensing tube and wash heads to prevent cross contamination and clogs.
Features:
- Precision control of aspiration needle position
• Accurate to 0.1mm
• Minimal residual liquid, ≤1μl/well
- Auto rinse function eliminates cross contamination
- Up to 100 wash protocols can be customized and stored
- Liquid level sensors in wash and waste bottles
- Wash protocols can be transferred via flash drive
Specifications:
Control and Display: 4.3-inch LCD display
Wash Heads: 8 channel or 12 channel
Wash Modes: 1 point, 2 point, or 3 point aspiration
Compatible Microplates: 96 wells, standard SBS dimensions
Residual Liquid Volume: ≤ 1ul (each well)
Dispensing Volume Range: 50ul – 2000 ul
Wash Cycles: 1 ~ 99 cycles
Program Storage Capacity: 100 programs
Rinse Function Time Range: 00:00 ~ 03:59 (mm : ss)
Soak and Shaking Time Range: 00:00 ~ 99:00 (mm : ss)
Wash Bottle Level Warning: Yes, sensors included in wash and rinse bottles
Wash Solution Channels: 3 bottles
Waste Bottle Level Warning: Yes; sensors detect when waste bottle is full
Waste Aspiration: Yes
Dimensions: 345 x 460 x 200 mm / 13.5 x 18 x 8.5 inches
Weight: 11.5 kg / 25.3 Lbs
