Thermal Cycler

SKU ES59721
(0) No Reviews yet

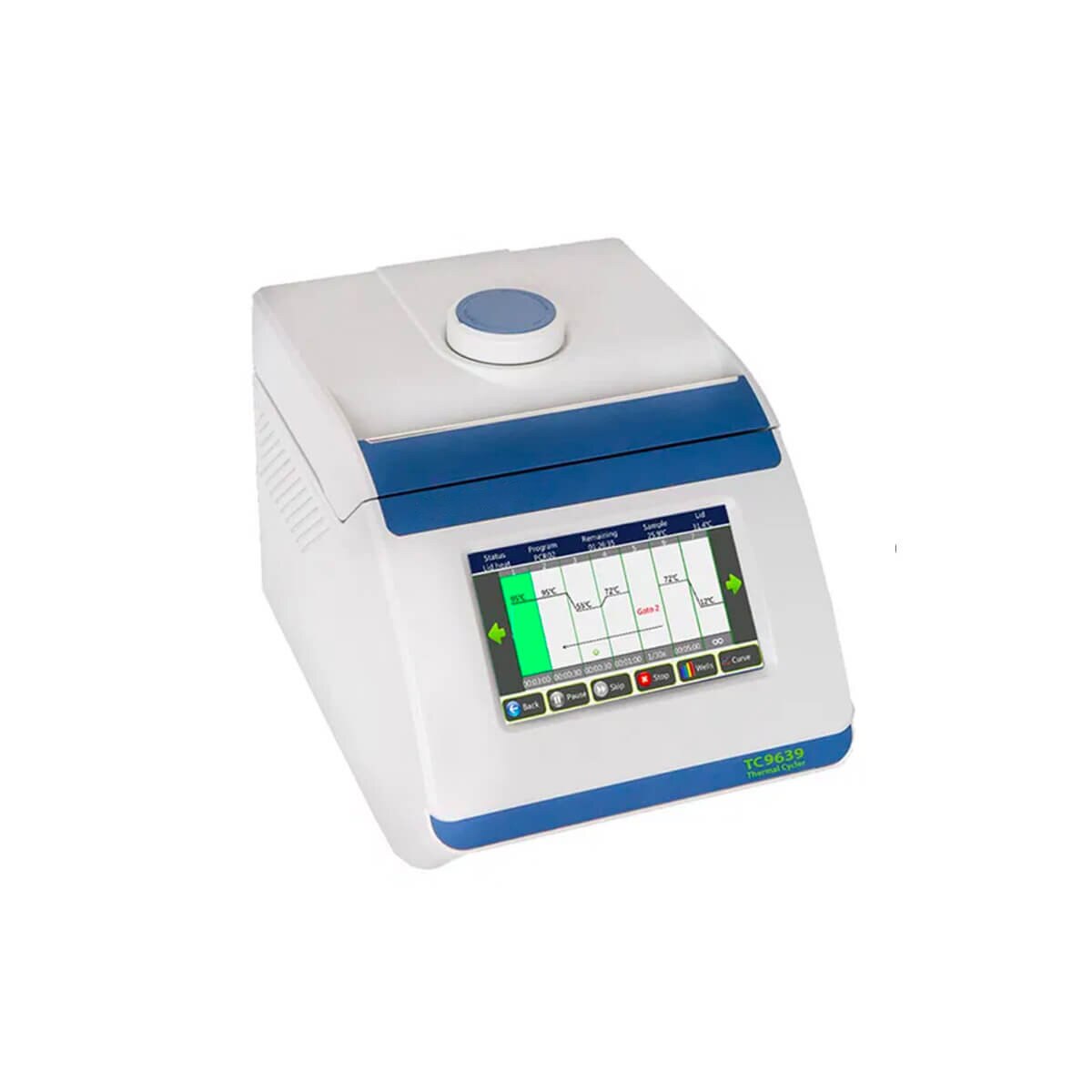

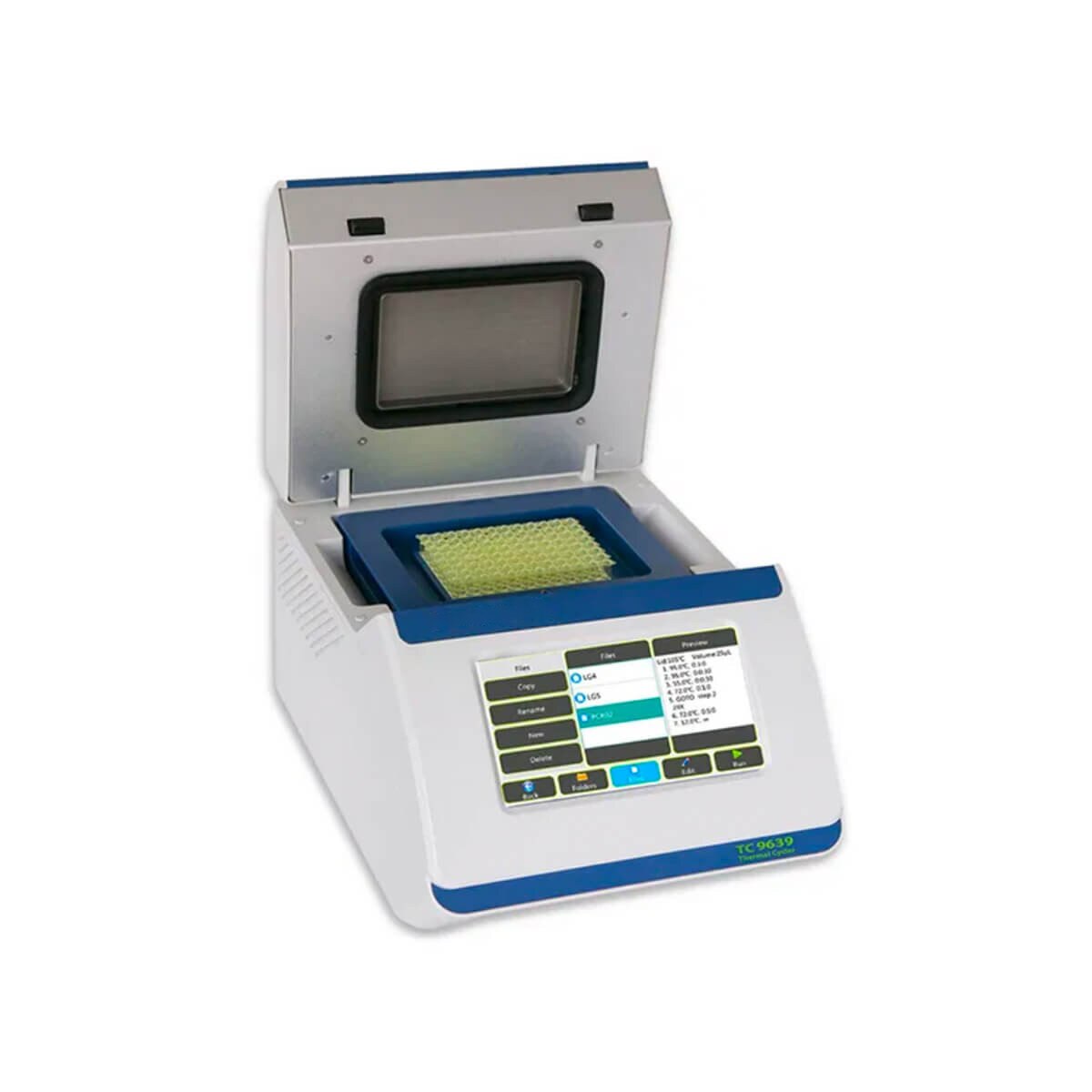

Our Thermal Cycler features an intuitive touchscreen control with quick and easy protocol entry. It also has a fully adjustable heated lid, and offers exceptionally fast cycling. Constructed with versatility in mind, the multi-format block accepts 96 x 0.2 mL tubes, 39 x 0.5 mL tubes, or 1 non-skirted 96 well PCR plate.

What is a thermal cycler used for? A thermal cycler, often referred to as thermocycler, PCR machine or DNA amplifier, is a piece of laboratory equipment that is used to amplify segments of DNA by PCR or a polymerase chain reaction. Thermal cyclers may also be used in laboratories to perform temperature-sensitive reactions, such as in rapid diagnostics or restriction enzyme digestion. Azer Scientific’s thermal cycler features a thermal block with 96 or 384 holes where tubes holding the reaction mixtures can be inserted. The thermal cycler raises and lowers the temperature of the block in precise, pre-programmed steps.

- Intuitive touch screen control
- Program Wizard – quick, easy & foolproof
- Unique multi-format block: 0.2ml tubes or strips, 0.5ml tubes, 96 well plate
- Optimize results with Accuris™ PCR reagents

Capacity: 9639 Block: 96 x 0.2mL tubes / 0.2mL strips / 1 x 96 well plate (nonskirted), 39 x 0.5mL tubes
Capacity: 384 Well Block: 1 x 384 well plate
In-Situ Adapter: 4 slides (for use with 9639 block)
Temperature Control Range: 0° to 100°C
Temp Control: Simulated sample or block
Accuracy/Uniformity: ± 0.2°C / ± 0.2°C
Ramp Rate: 5°C/second (maximum)
Lid Temperature: 30°C to 112°C (User Adjustable)
Program Memory: Unlimited with Flash Drive
Gradient range / differential: 30ºC to 105ºC / 1ºC to 30ºC
Increments/Decrements: Yes both time and temperature
Multiuser Login: Yes
Power Supply: Universal 75 to 275V, 50 to 60 Hz; 600W
Communication: USB; LAN and RS232
Dimensions: 10.2 x 14.2 x 9.9 in / 26 x 36 x x 25 cm
Weight: 16 lbs
Warranty: 2 Years

Product Documents:
Product Flyer
