Thermal Cycler With 384 Well Block, Standard Plug

SKU ES59723
(0) No Reviews yet

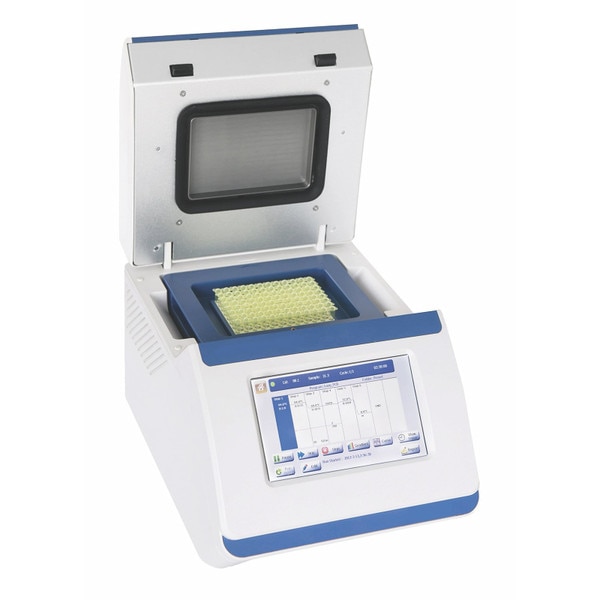

Our Thermal Cycler features an intuitive touchscreen control with quick and easy protocol entry. It also has a fully adjustable heated lid, and offers exceptionally fast cycling. Constructed with versatility in mind, the multi-format block accepts 96 x 0.2 mL tubes, 39 x 0.5 mL tubes, or 1 non-skirted 96 well PCR plate.

What is a thermal cycler used for? A thermal cycler, often referred to as thermocycler, PCR machine or DNA amplifier, is a piece of laboratory equipment that is used to amplify segments of DNA by PCR or a polymerase chain reaction. Thermal cyclers may also be used in laboratories to perform temperature-sensitive reactions, such as in rapid diagnostics or restriction enzyme digestion. Azer Scientifi'cs thermal cycler features a thermal block with 96 or 384 holes where tubes holding the reaction mixtures can be inserted. The thermal cycler raises and lowers the temperature of the block in precise, pre-programmed steps.

- Intuitive touch screen control
- Program Wizard – quick, easy & foolproof
- Unique multi-format block: 0.2ml tubes or strips, 0.5ml tubes, 96 well plate
- Optimize results with Accuris™ PCR reagents

Capacity: 9639 Block: 96 x 0.2mL tubes / 0.2mL strips / 1 x 96 well plate (nonskirted), 39 x 0.5mL tubes
Capacity: 384 Well Block: 1 x 384 well plate
In-Situ Adapter: 4 slides (for use with 9639 block)
Temperature Control Range: 0° to 100°C
Temp Control: Simulated sample or block
Accuracy/Uniformity: ± 0.2°C / ± 0.2°C
Ramp Rate: 5°C/second (maximum)
Lid Temperature: 30°C to 112°C (User Adjustable)
Program Memory: Unlimited with Flash Drive
Gradient range / differential: 30ºC to 105ºC / 1ºC to 30ºC
Increments/Decrements: Yes both time and temperature
Multiuser Login: Yes
Power Failure Restart: Yes with Password Protection
Power Supply: Universal 75 to 275V, 50 to 60 Hz; 600W
Communication: USB; LAN and RS232
Dimensions: 10.2 x 14.2 x 9.9 in / 26 x 36 x x 25 cm
Weight: 16 lbs
Warranty: 2 Years

Product Documents:
Product Flyer
