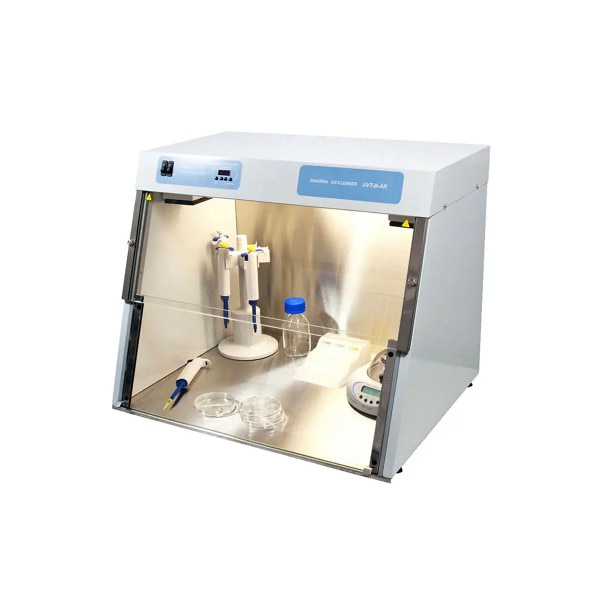

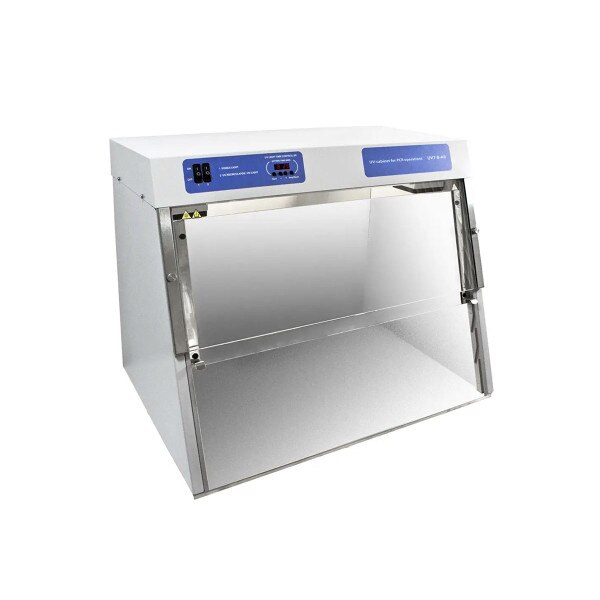

UV cabinet/PCR workstation economy, glass front, dual UV protection lamp and UV recirculator
Details
The UV cabinet/PCR workstation is an economical general purpose PCR UV cabinet for carrying out short-term procedures.
The cabinets are equipped with an open UV lamp installed in the upper part of the hood. UV-radiation from these lamps effectively disinfects the working area chamber, inactivating DNA / RNA fragments during 15-30 minutes of exposure. The UV light switches off automatically when door is opened. The model has a stainless steel work surface, metal framework and shock proof glass panels.
The built-in UV cleaner-recirculator both increases the maximum density of UV light and generates 25 m³/h air flow exchange – prevents unwanted contamination and protects the user from direct UV light during manipulation. The UV cleaner-recirculator consists of UV lamp, dust filters and a fan. The recirculation effect increases the maximum density of the UV light making it sufficiently effective for DNA / RNA inactivation. The recirculator processes 360 UV-cabinet volumes per hour, creating permanently aseptic conditions within the cabinet.
The digital timer controls the duration of the direct UV irradiation. An additional daylight lamp provides a bright, clear working area.
Features:
- 1 x 25W 254 nm open UV lamp
- High intensity UV cleaner – 25m³/hour cleaner-recirculator continuous air flow with 1cm UV irradiation distance
- UV exposure controlled by 24h digital timer
- Convenient, easy to use digital timer for accurate control of UV exposure
- White lamp provides local illumination of the workplace to optimize visual control during operations
- Automatic switch-off of irradiated UV light when door opened
- Supplied with 1 access port and internal power socket
Applications:
• Life science – germicidal and virucidal, inhibition of DNA and RNA contamination, applications requiring no residual decontaminants such as disinfectants, operations with DNA/RNA amplicons, microbial research.
Specifications:
Weight: 32kg
Construction: Stainless steel frame and working area
Panels: Glass w/ UV-protective film
Front opening w/ three adjustable positions: Yes
Open UV lamp, 25W bactericidal, 254nm, ozone free: 1
Bactericidal air recirculator, 25 m3/h air flow exchange: Yes
UV recirculator, 25W (efficiency >99% per 1 cycle): 1
White lamp for workplace illumination 15W: 1
Digital timer (non-stop) 0 to 24 hours: Yes
Internal power outlets: 1
Internal working area: 645 x 490mm
Flow rate m3/h: 7
Nominal operating voltage V: 120 or 230 (50-60Hz)
Power consumption W: 67 (0.3A)
Product Documents:
Product Flyer
