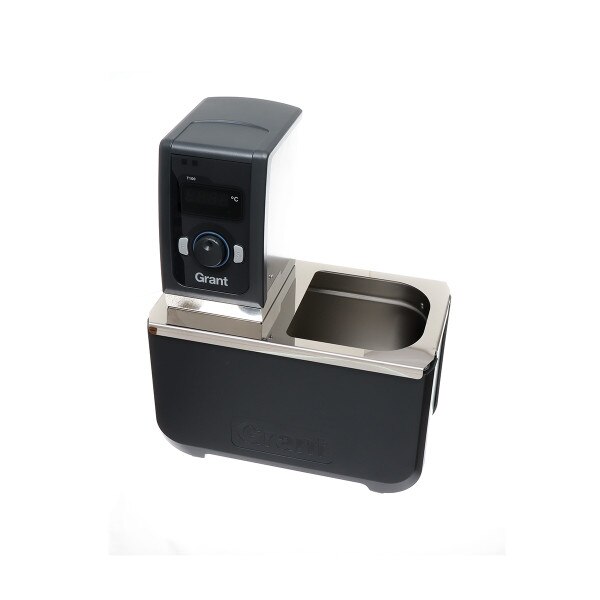

Circulating bath, heated, 5L stainless steel tank & T100 immersion thermostat
Details
The T100 heating circulating bath with a 5 Liter stainless steel tank offers accurate temperate control for staightforward applications in the range of 0°C to 100°C. The T100 heating circulator can be used in combination with any stainless steel or plastic tank or with a T-CLAMP for independent use of virtually any vertical sided tank.
Features:
- 3 programmable temperature presets
- Low liquid protection and fixed over temperature cut-out
- Visual alarm – alerts you when your attention is required
- Clear, bright 4 digit LED display
Applications:
• Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
• Teaching labs, higher education/universities – practical demonstration/experimentation, sample preparation
Specifications:
Thermostat dimensions (H x D x W): 310 x 440 x 200mm
Tank Dimensions (H x D x W): 333 x 410 x 410mm
Tank capacity: 5 Liter
Ambient temp: +15ºC to 100ºC
Stability @70ºC: 0.05 ±ºC
Uniformity @70ºC: 0.1 ±ºC
Setting resolution: 0.1ºC
Display: 4 digit LED
No. of temp presets: 3
Re-calibration points: 2
Safety - over temp: Fixed
Fluid level - float: Yes
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 200mm
Depth below tank rim: 135mm
Weight: 5.8kg
Product Documents:
Product Flyer
Features:
- 3 programmable temperature presets
- Low liquid protection and fixed over temperature cut-out
- Visual alarm – alerts you when your attention is required
- Clear, bright 4 digit LED display
Applications:
• Clinical, Microbiology and Pathology labs – media tempering, thawing and incubating samples
• Teaching labs, higher education/universities – practical demonstration/experimentation, sample preparation
Specifications:
Thermostat dimensions (H x D x W): 310 x 440 x 200mm
Tank Dimensions (H x D x W): 333 x 410 x 410mm
Tank capacity: 5 Liter
Ambient temp: +15ºC to 100ºC
Stability @70ºC: 0.05 ±ºC
Uniformity @70ºC: 0.1 ±ºC
Setting resolution: 0.1ºC
Display: 4 digit LED
No. of temp presets: 3
Re-calibration points: 2
Safety - over temp: Fixed
Fluid level - float: Yes
Heater power - 120V: 1440W
Electrical power -120V: 1500 (50-60Hz)
Height above tank rim: 200mm
Depth below tank rim: 135mm
Weight: 5.8kg
Product Documents:
Product Flyer
